Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

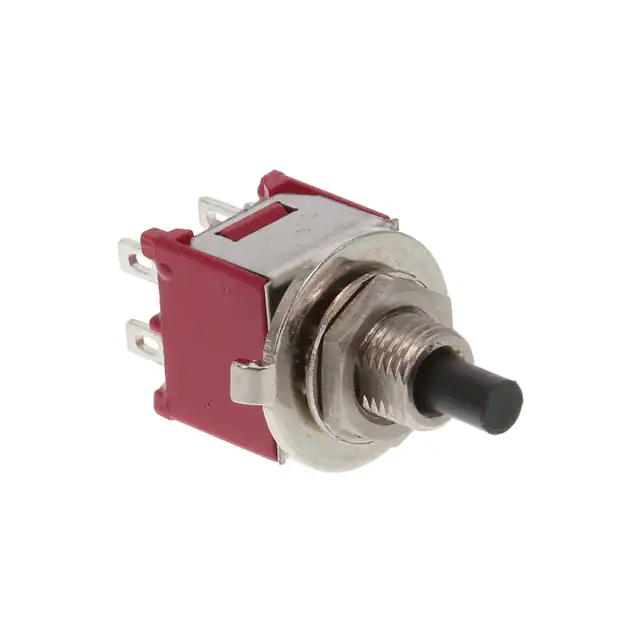

TP21SHZQESWITCH PUSH DPST-NO 1A 120V C&K |
1,854 |
|
Datasheet |
TP | Bulk | Obsolete | Panel Mount, Rear | Standard | DPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | Power Symbol | Black | - | - | Solder Lug | - | Sealed | Circular - 4.95mm Dia | -30°C ~ 85°C |
|

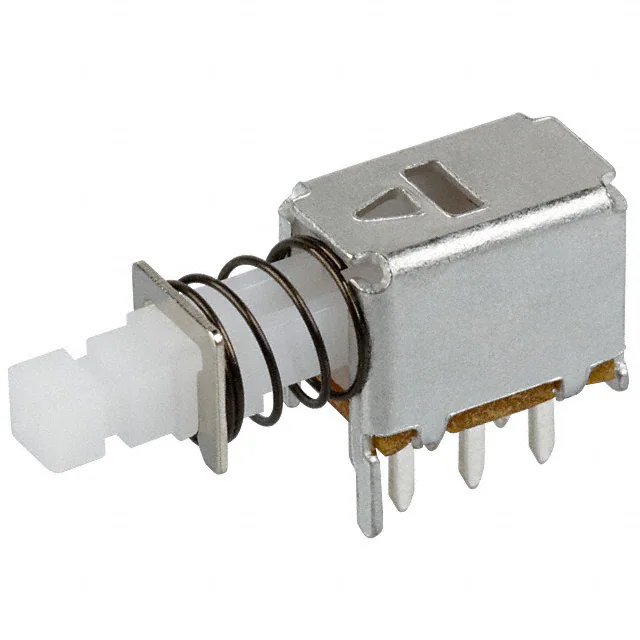

PN21LENA03QESWITCH PUSH DPDT 0.2A 30V C&K |
4,972 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
PN41LENA02QESWITCH PUSH 4PDT 0.2A 30V C&K |
4,475 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-Mom | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|

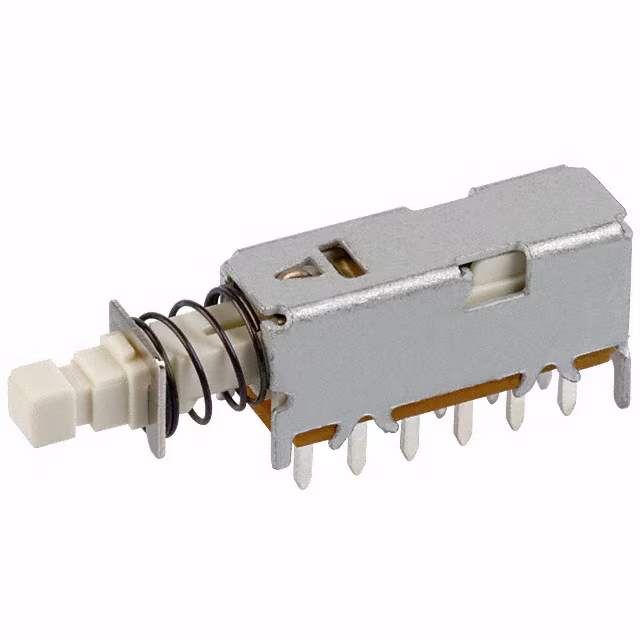

PN42LENA02QESWITCH PUSH 4PDT 0.2A 30V C&K |
2,458 |
|
Datasheet |
PN | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 200mA (DC) | - | 30 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -10°C ~ 60°C |
|
GP12MCKESWITCH PUSH SPDT 0.4VA 20V C&K |
2,896 |
|
Datasheet |
GP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|
SETLBKGNAUOASWITCH PUSH SPDT 0.01A 24V C&K |
1,618 |
|
Datasheet |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Black | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
D6 C 00SWITCH PUSH SPST-NO 0.1A 32V C&K |
2,898 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
|
D6 C 10SWITCH PUSH SPST-NO 0.1A 32V C&K |
2,439 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Gray | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6 C 40SWITCH PUSH SPST-NO 0.1A 32V C&K |
2,502 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Red | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
|
D6 C 60SWITCH PUSH SPST-NO 0.1A 32V C&K |
4,192 |
|
Datasheet |
D6 | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (DC) | - | 32 V | Square, Button | No Marking | Blue | - | - | PC Pin | - | Tactile Feedback | - | -20°C ~ 85°C |
