Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

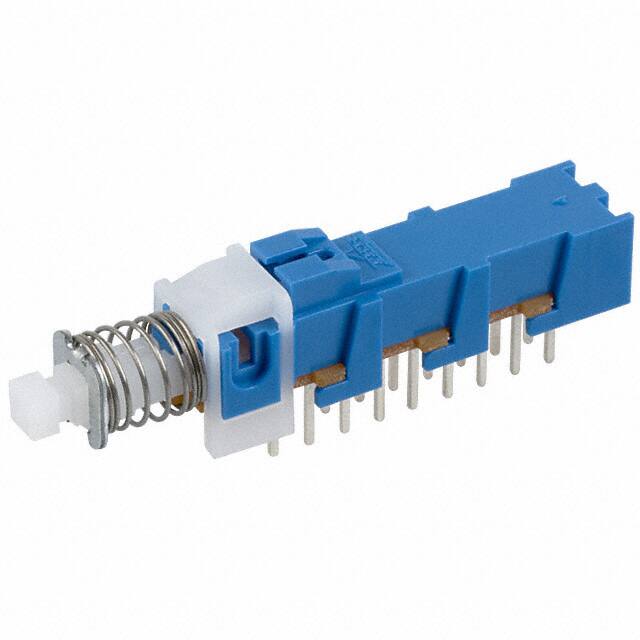

PHA6UOASWITCH PUSH 6PDT 0.1A 30V C&K |
1,724 |
|
Datasheet |
PHA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed | - | -10°C ~ 60°C |
|

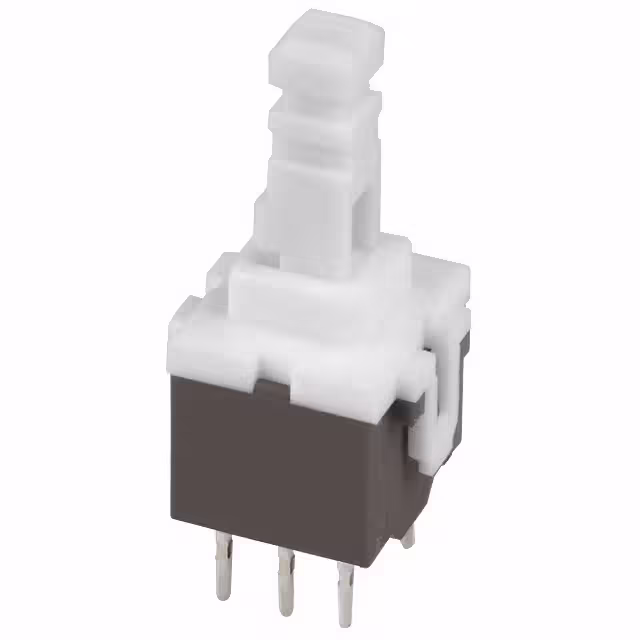

PVA2 EE H3 V2SWITCH PUSH DPDT 0.1A 32V C&K |
1,621 |
|
Datasheet |
PVA | Bulk | Active | Through Hole | Keyswitch | DPDT | On-On | 100mA (DC) | - | 32 V | Plunger for Cap | No Marking | Gray | - | - | PC Pin | - | - | - | -40°C ~ 85°C |
|
200360SWITCH PUSH SPST-NO 0.01A 25V C&K |
1,931 |
|
- |
REKN | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 10mA (DC) | - | 25 V | Square, Button | No Marking | Black | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|

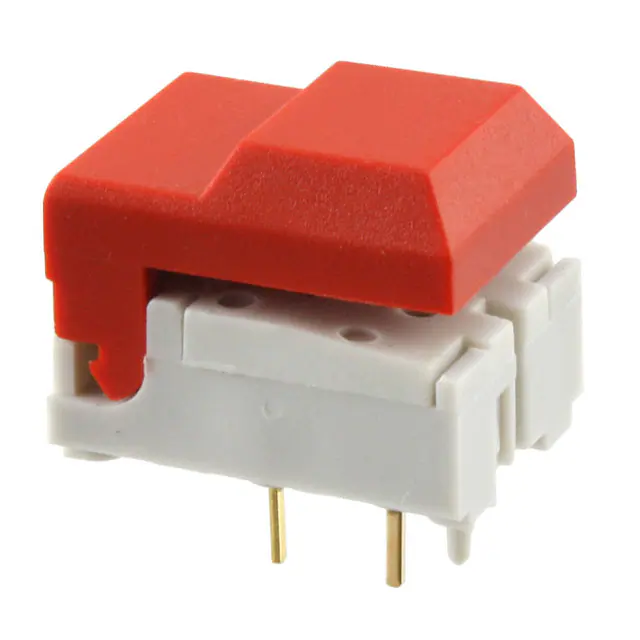

SER RD AU OASWITCH PUSH SPDT 0.01A 24V C&K |
3,793 |
|
Datasheet |
DIGITAST | Tray | Active | Through Hole | Keyswitch | SPDT | On-Mom | 10mA (DC) | - | 24 V | Square, Button | No Marking | Red | - | - | PC Pin | - | - | - | -25°C ~ 85°C |
|
SERUL GN 7.62 AU OASWITCH PUSH SPDT 0.01A 24V C&K |
2,345 |
|
Datasheet |
DIGITAST | Tray | Obsolete | Through Hole | Keyswitch, Illuminated | SPDT | On-Mom | 10mA (DC) | - | 24 V | Plunger for Cap | No Marking | - | LED, Green | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

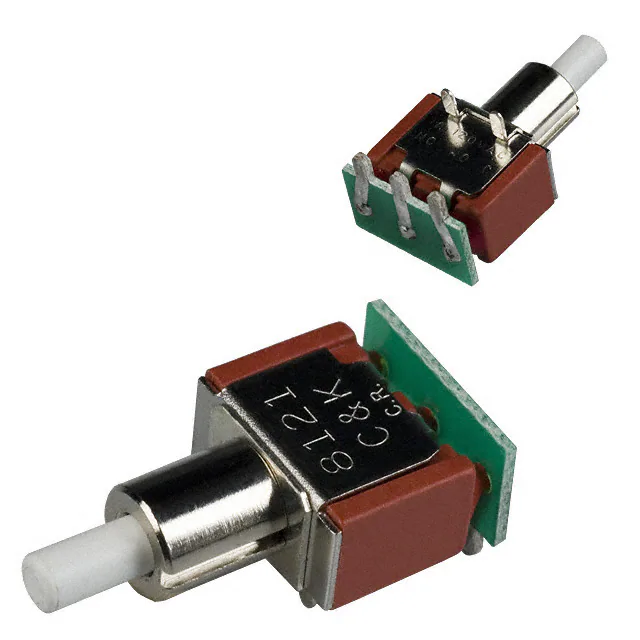

8121SD9R2GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,782 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
8121SD9RGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,314 |
|
Datasheet |
8020 | Tray | Obsolete | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

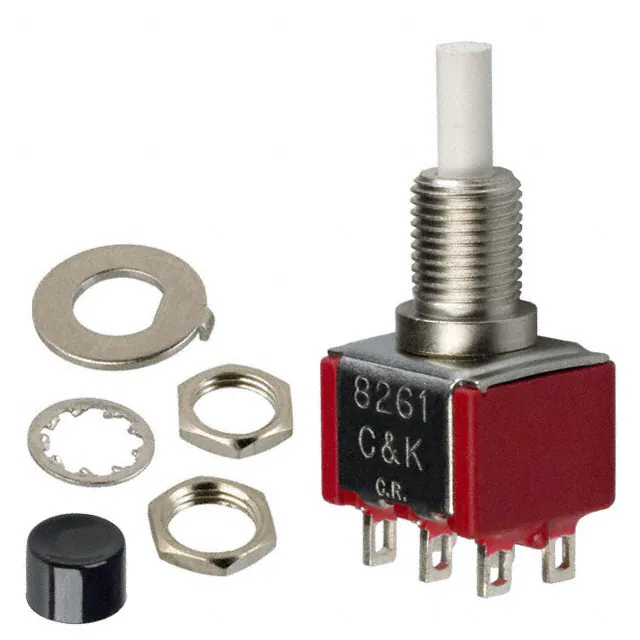

8261SHZQE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
1,227 |
|
Datasheet |
8060 | Bulk | Obsolete | Panel Mount, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

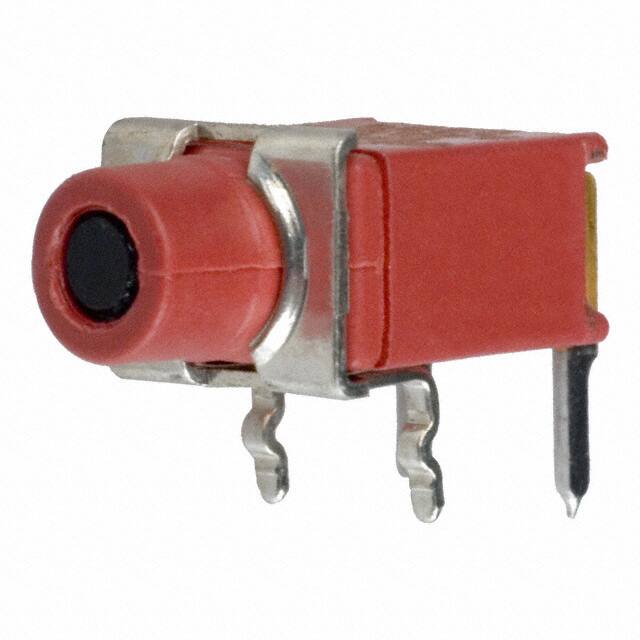

EP11FPD1AKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,190 |
|
Datasheet |
EP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger, Flush | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

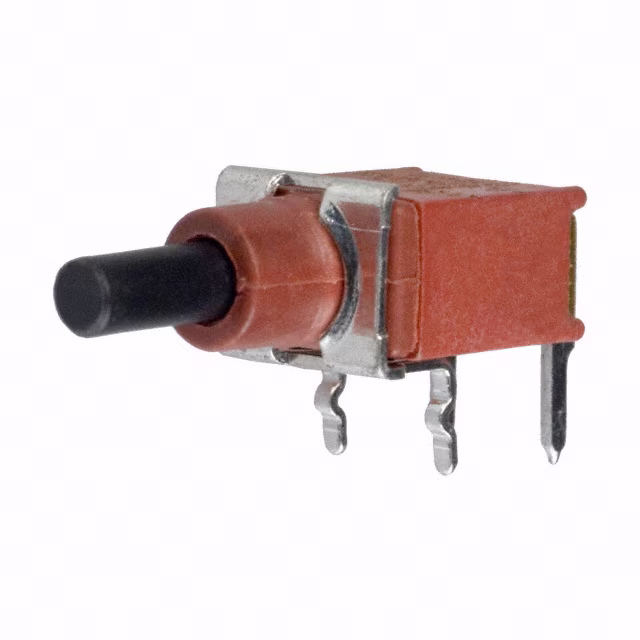

EP11SD1AKESWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,273 |
|
Datasheet |
EP | Bulk | Obsolete | Through Hole, Right Angle | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
