Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
K6BL YE 1.5 5N L327SWITCH PUSH SPST-NO 0.1A 30V C&K |
3,376 |
|
Datasheet |
K6 | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | - | LED, Yellow | - | PC Pin | - | Tactile Feedback | - | -40°C ~ 85°C |
|

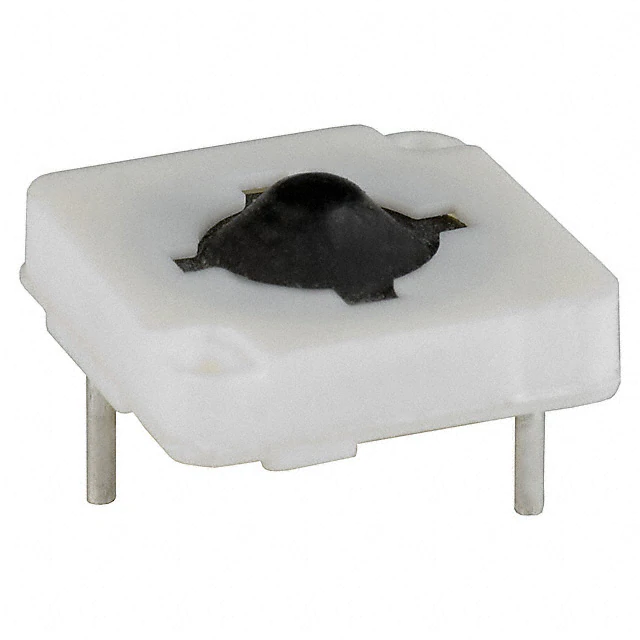

210278SWITCH PUSH SPST-NO 0.05A 100V C&K |
3,508 |
|
Datasheet |
- | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | - | - | - | PC Pin | - | - | - | -25°C ~ 70°C |
|
|
MD SSWITCH PUSH SPST-NO 0.1A 100V C&K |
2,411 |
|
Datasheet |
MD | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Round, Button, Rubber | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|

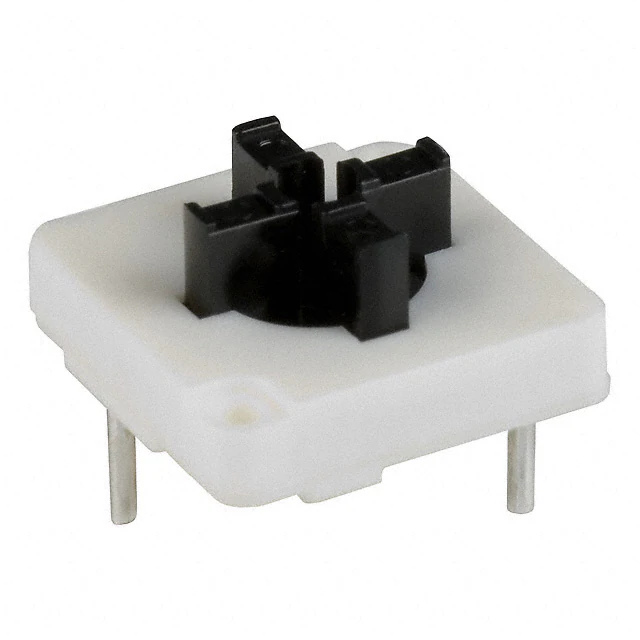

MDP GSWITCH PUSH SPST-NO 0.05A 100V C&K |
4,531 |
|
Datasheet |
MDP | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 50mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
|
MDP SSWITCH PUSH SPST-NO 0.1A 100V C&K |
2,425 |
|
Datasheet |
MDP | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Plunger for Cap | No Marking | Black | - | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|
MDPL 1 S 50 BTN 40SWITCH PUSH SPST-NO 0.1A 100V C&K |
1,533 |
|
Datasheet |
MDP | Bulk | Obsolete | Through Hole | Keyswitch, Illuminated | SPST-NO | Off-Mom | 100mA (AC/DC) | 100 V | 100 V | Square, Button | No Marking | Red | LED, Green | - | PC Pin | - | Tactile Feedback | - | -25°C ~ 70°C |
|

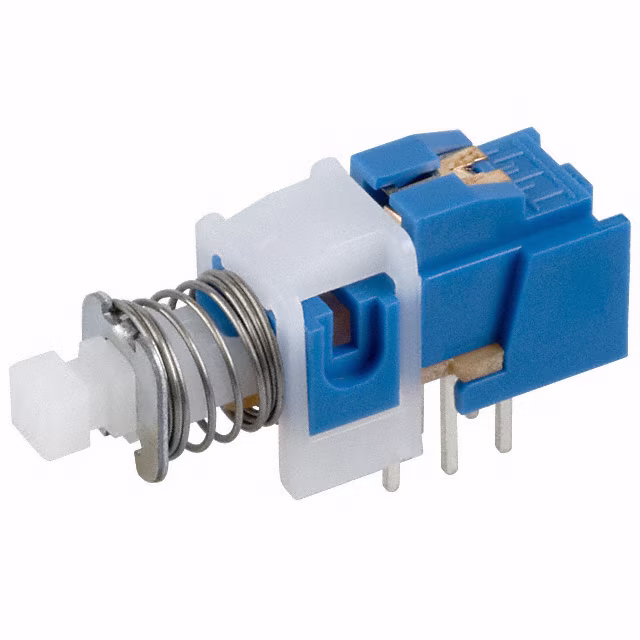

PHA2UEESWITCH PUSH DPDT 0.1A 30V C&K |
3,387 |
|
Datasheet |
PHA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed | - | -10°C ~ 60°C |
|

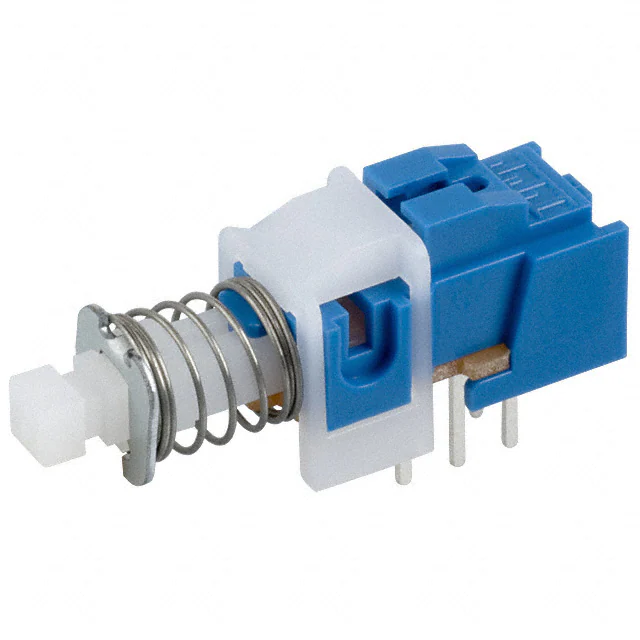

PHA2UOASWITCH PUSH DPDT 0.1A 30V C&K |
3,340 |
|
Datasheet |
PHA | Bulk | Obsolete | Through Hole, Right Angle | Standard | DPDT | On-Mom | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed | - | -10°C ~ 60°C |
|
PHA4UEESWITCH PUSH 4PDT 0.1A 30V C&K |
1,537 |
|
Datasheet |
PHA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 4PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed | - | -10°C ~ 60°C |
|
PHA6UEESWITCH PUSH 6PDT 0.1A 30V C&K |
4,667 |
|
Datasheet |
PHA | Bulk | Obsolete | Through Hole, Right Angle | Standard | 6PDT | On-On | 100mA (DC) | - | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Sealed | - | -10°C ~ 60°C |
