Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNP8S2D2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
3,717 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

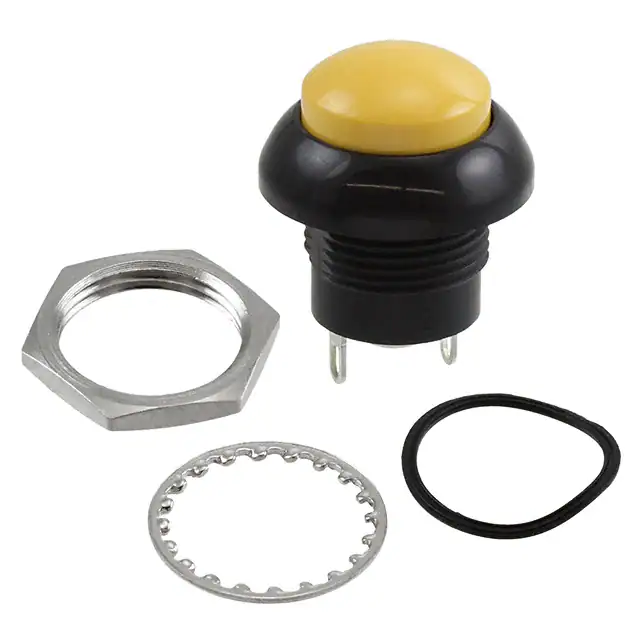

PNP8E5D2Y03QESWITCH PUSHBUTTON SPST-NO 5A 32V C&K |
3,198 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8E2D2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
3,204 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Black | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8E3D2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
3,527 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8S3T2Y03QESWITCH PUSHBUTTON SPST-NO 5A 32V C&K |
2,854 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
PNP8S5T2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
4,749 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

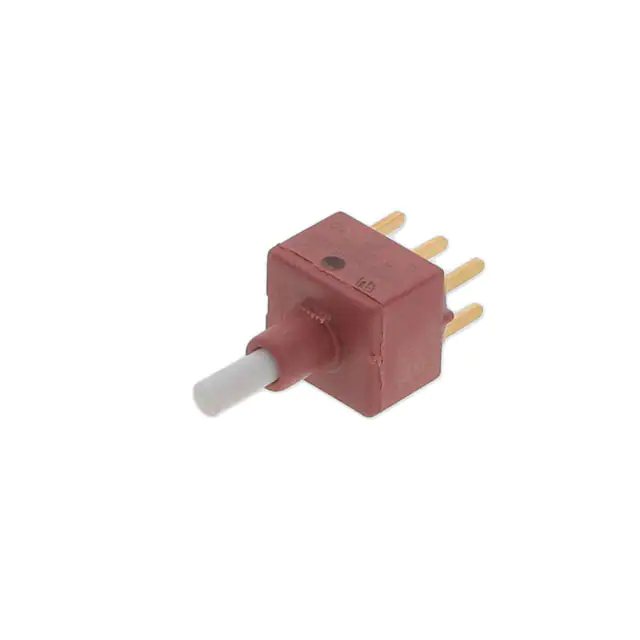

E221SD1CGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,300 |
|
Datasheet |
E020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

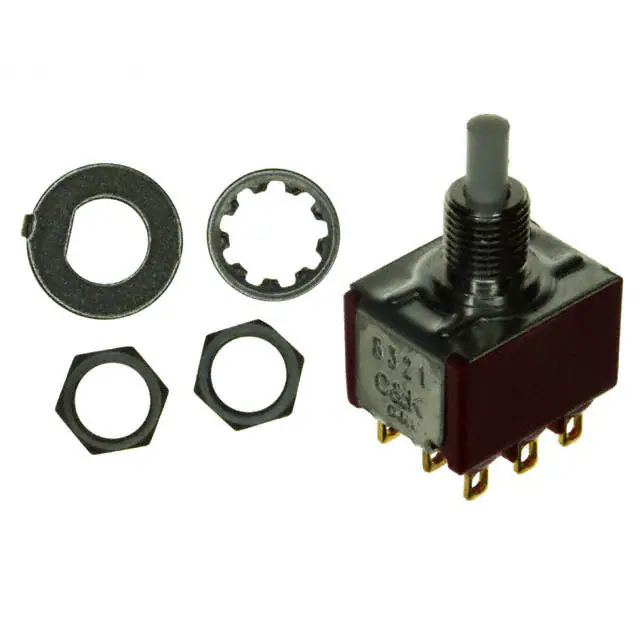

8321SHZGESWITCH PUSHBUTTON 3PDT 1A 120V C&K |
4,184 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | 3PDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

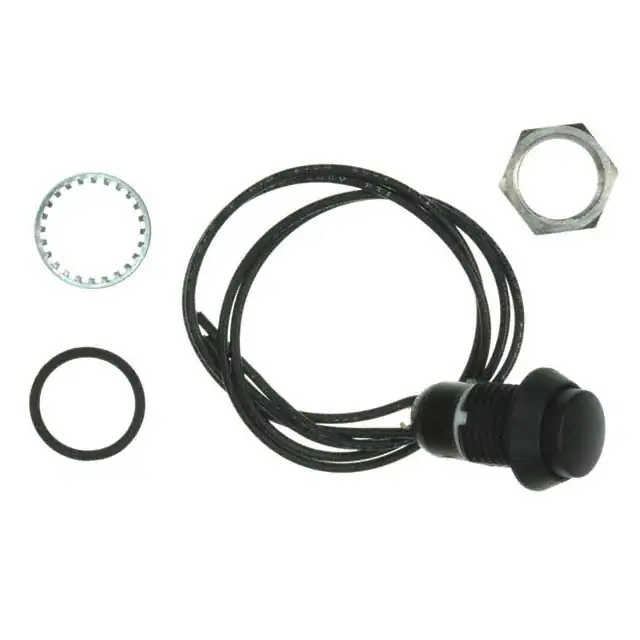

AP4E200TWBESWITCH PUSH SPST-NO 0.125A 125V C&K |
4,061 |
|
Datasheet |
AP | Bag | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 105°C |
|

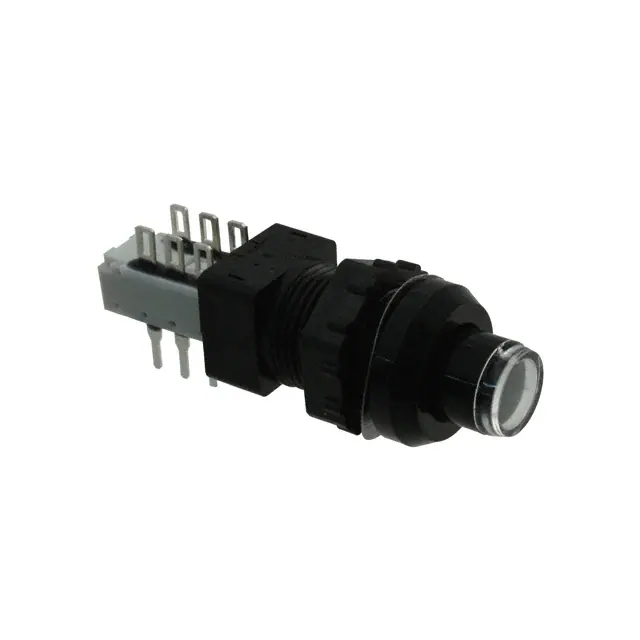

ZFA FA200 BK OG 2U EESWITCH PUSH DPDT 0.5A 125V C&K |
3,849 |
|
Datasheet |
F | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | DPDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Round, Button | No Marking | Orange | - | - | PC Pin, Solder Lug | - | - | Circular - 14.00mm Dia | -40°C ~ 70°C |
