Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

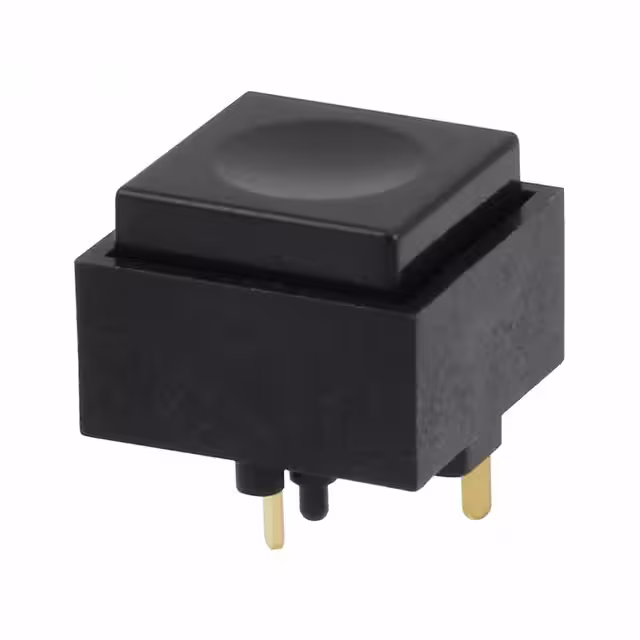

KS11R22CBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
4,470 |
|
Datasheet |
KS | Bulk | Obsolete | Through Hole | Keyswitch | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Square, Button | No Marking | Black | - | - | PC Pin | - | Voltage Reduction Lighting | - | -30°C ~ 65°C |
|
8534SZQE3SWITCH PUSH SPST-NC 1A 120V C&K |
2,985 |
|
Datasheet |
8500 | Bulk | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Red | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

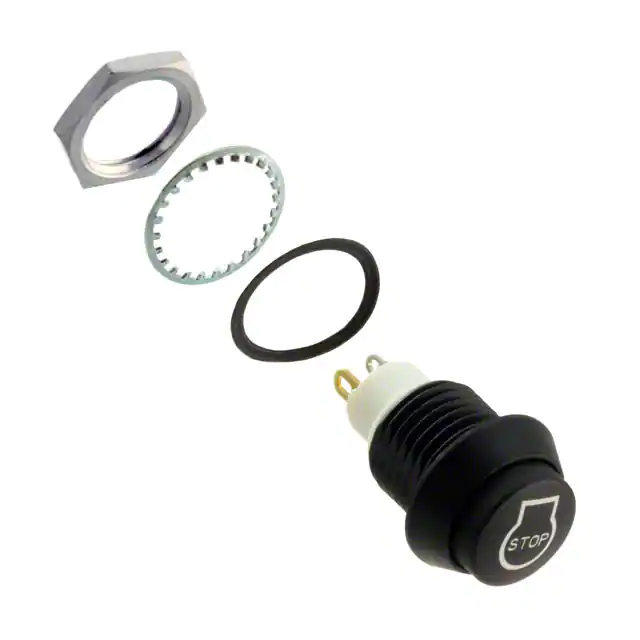

APB4E01TZBE003SWITCH PUSH SPST-NO 0.2A 24V C&K |
1,899 |
|
Datasheet |
APB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | Engine Stop Symbol | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
PNP8N0T2C03QE8N, STD THREAD, SPST, SOLDER LUG C&K |
4,170 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

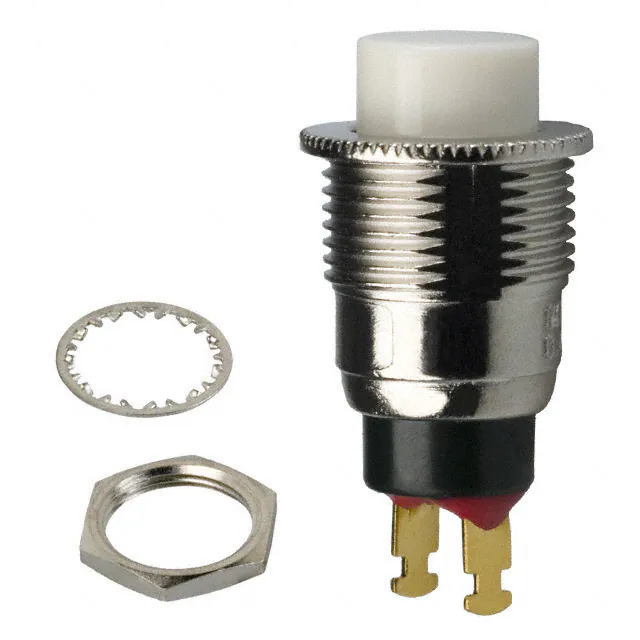

8532T1ZBE1SWITCH PUSH SPST-NO 0.4VA 20V C&K |
2,865 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | White | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
F8UEE01ASWITCH PUSH 8PDT 0.5A 125V C&K |
3,060 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 8PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | - | - | -40°C ~ 70°C |
|
8161J82ZQE22SWITCH PUSHBUTTON SPDT 6A 120V C&K |
1,685 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
8161S1H9ABE2SWITCH PUSH SPDT 0.4VA 20V C&K |
1,156 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|
8161SHABE2SWITCH PUSH SPDT 0.4VA 20V C&K |
1,914 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Right Angle, Rear | Standard | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

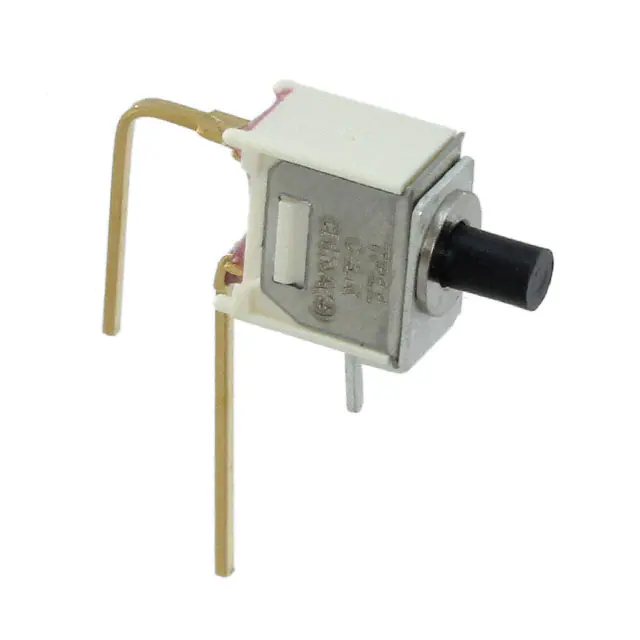

TP11MS9AVBESWITCH PUSH SPST-NO 0.4VA 20V C&K |
4,954 |
|
Datasheet |
TP | Tray | Active | Through Hole, Right Angle, Vertical | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | - | -30°C ~ 85°C |
