Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

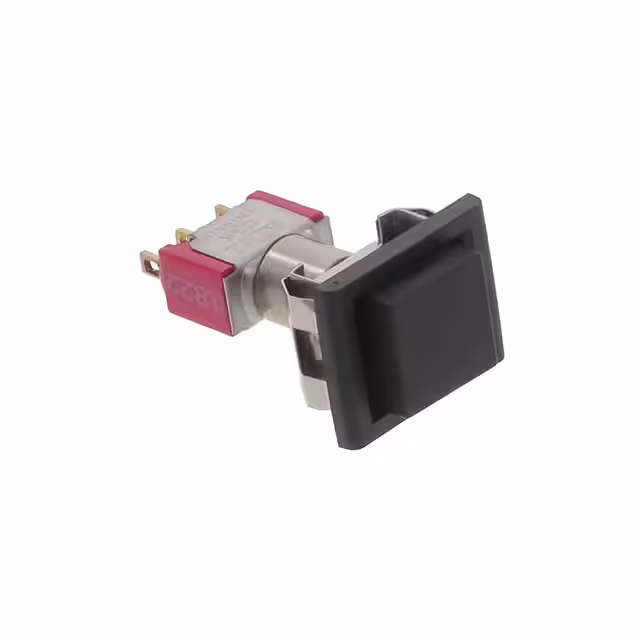

8161J81ZGE22SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,414 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|

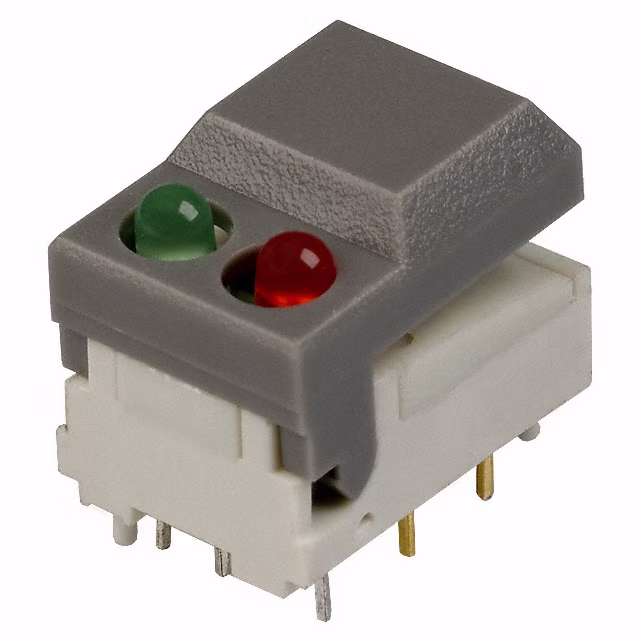

SER2LGYRDGNAUEESWITCH PUSH SPDT 0.01A 24V C&K |
2,352 |
|
Datasheet |
DIGITAST | Bulk | Active | Through Hole | Keyswitch, Illuminated | SPDT | On-On | 10mA (DC) | - | 24 V | Square, Button | No Marking | Gray | LED, Green/Red | - | PC Pin | - | - | - | -25°C ~ 85°C |
|

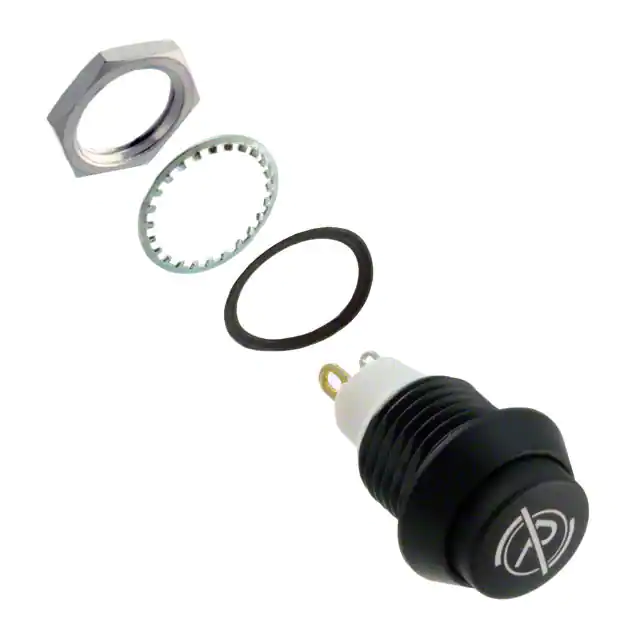

APB4E01TZBE004SWITCH PUSH SPST-NO 0.2A 24V C&K |
2,805 |
|
Datasheet |
APB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | Park Brake Release Symbol | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

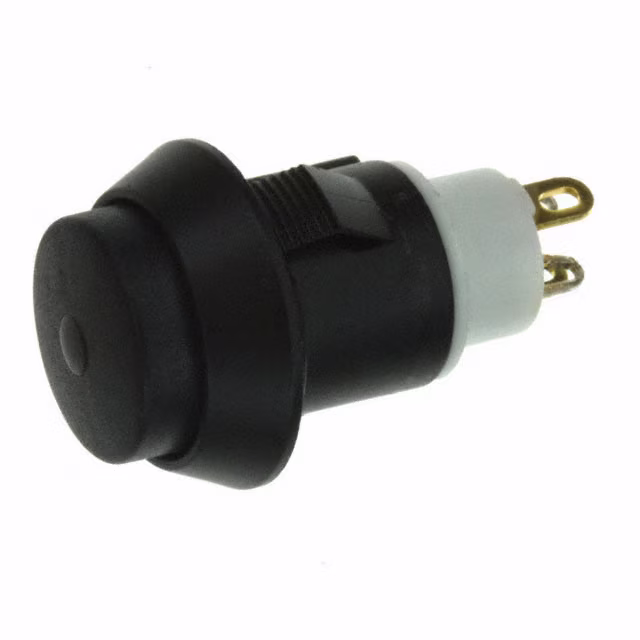

AP4E207SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
4,509 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | LED, Blue | 3.8 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

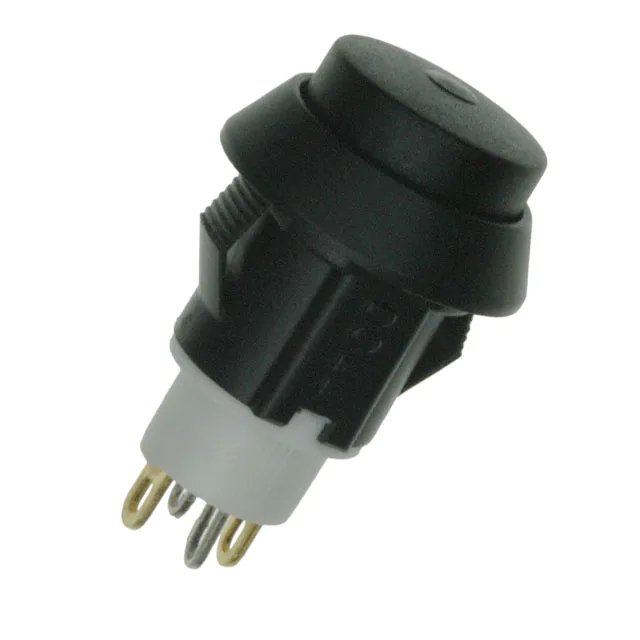

AP4E202SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,875 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | No Marking | Black | LED, Green/Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
E225SD1CBESWITCH PUSH DPDT 0.4VA 20V C&K |
2,520 |
|
Datasheet |
E020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
NP8S5P203QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
1,072 |
|
Datasheet |
NP | Bulk | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
8121SD3V4GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,472 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
8121SH9AGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,255 |
|
Datasheet |
8020 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
KLS12L063AQL CONCAVE, SPDT, PCB, MOM, GREEN C&K |
3,037 |
|
Datasheet |
KLS | Tray | Active | Through Hole | Standard, Illuminated | SPDT | On-Mom | 500mA (DC) | - | 25 V | Square, Button | No Marking | Clear | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 85°C |
