Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8168SHWQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
4,545 |
|
Datasheet |
8060 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | Wire Wrap | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|
PNP8S3D2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
2,419 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button, Domed | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

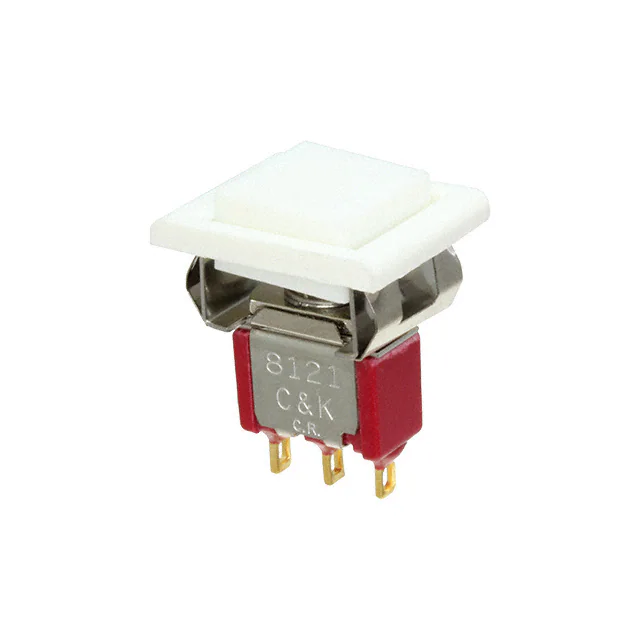

8121J81ZGE11SWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,527 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Snap-In | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | White | - | - | Solder Lug | - | Tactile Feedback | Rectangular - 15.24mm x 12.70mm | -30°C ~ 75°C |
|
E121SD1A3GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
4,923 |
|
Datasheet |
E020 | Bulk | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|
PNP8S3T2W03QESWITCH PUSHBUTTON SPST-NC 5A 32V C&K |
1,969 |
|
Datasheet |
PNP | Bulk | Active | Panel Mount, Front | Standard | SPST-NC | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Red | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|
8121SYWGESWITCH PUSHBUTTON SPDT 1A 120V C&K |
100 |
|
Datasheet |
8020 | Tray | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | Wire Wrap | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

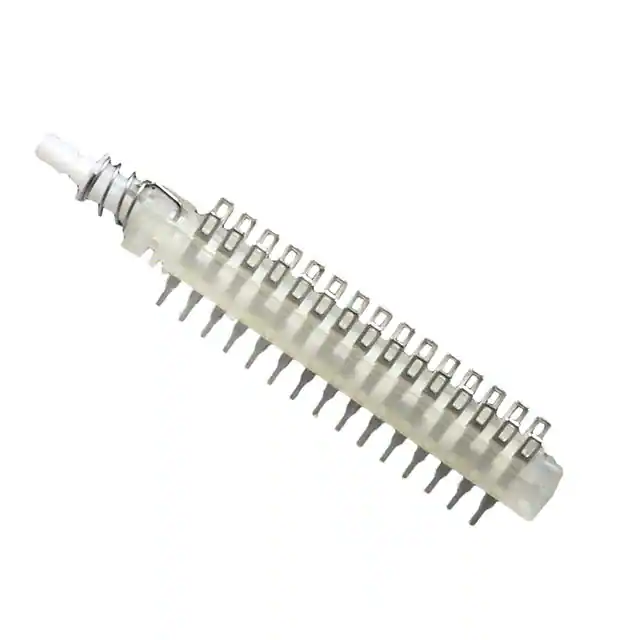

F10UEESWITCH PUSH 10PDT 0.5A 125V C&K |
3,144 |
|
Datasheet |
F | Bulk | Active | Through Hole, Right Angle | Standard | 10PDT | On-On | 500mA (AC/DC) | 125 V | 30 V | Plunger for Cap | No Marking | White | - | - | PC Pin, Solder Lug | - | - | - | -40°C ~ 70°C |
|
E121SD3V6GESWITCH PUSHBUTTON SPDT 1A 120V C&K |
3,895 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
|

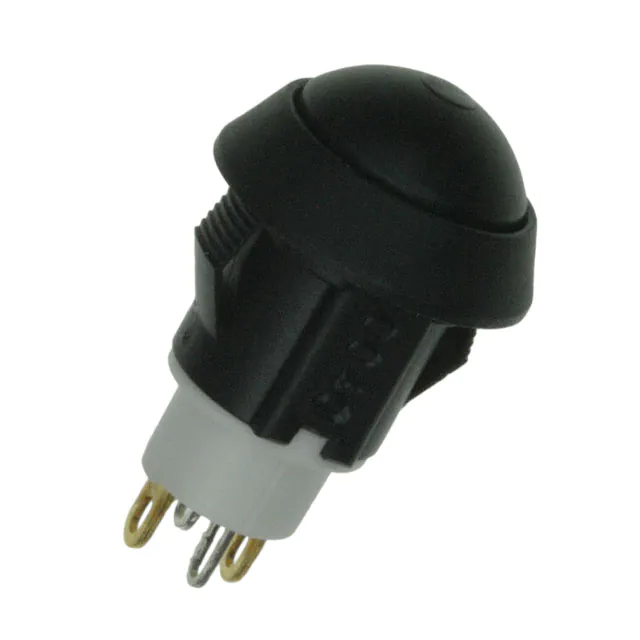

AP4D203SZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,870 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

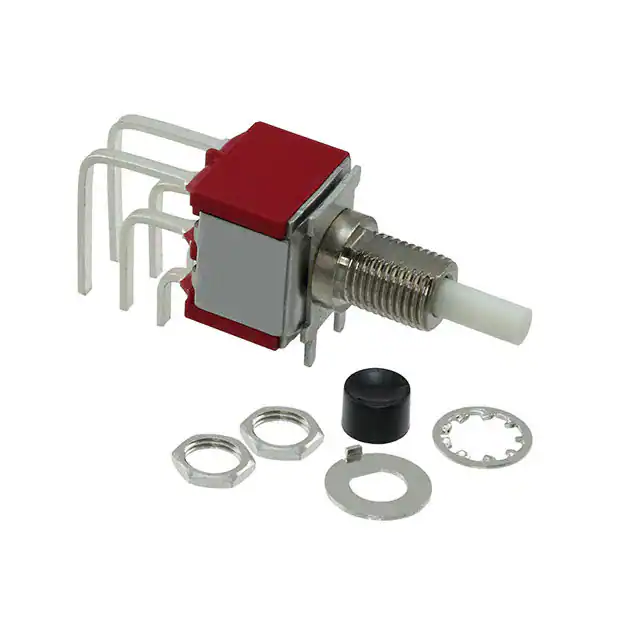

8261SHAV2QE2SWITCH PUSHBUTTON DPDT 6A 120V C&K |
2,796 |
|
Datasheet |
8060 | Tray | Obsolete | Panel Mount, Right Angle, Vertical, Rear | Standard | DPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
