Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

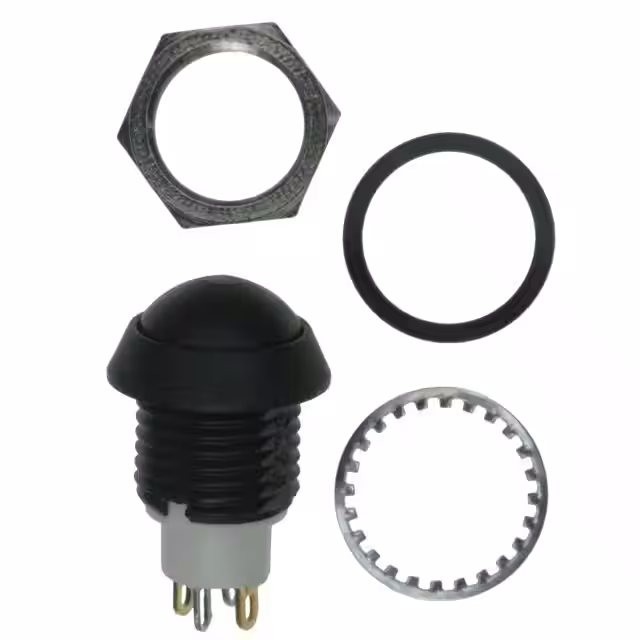

AP4D203TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
2,752 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
PNP8N0T2Y03QE8N, STD THREAD, SPST NO, SOLDER C&K |
1,472 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPST-NO | Off-Mom | 5A (DC) | - | 32 V | Plunger for Cap | No Marking | - | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

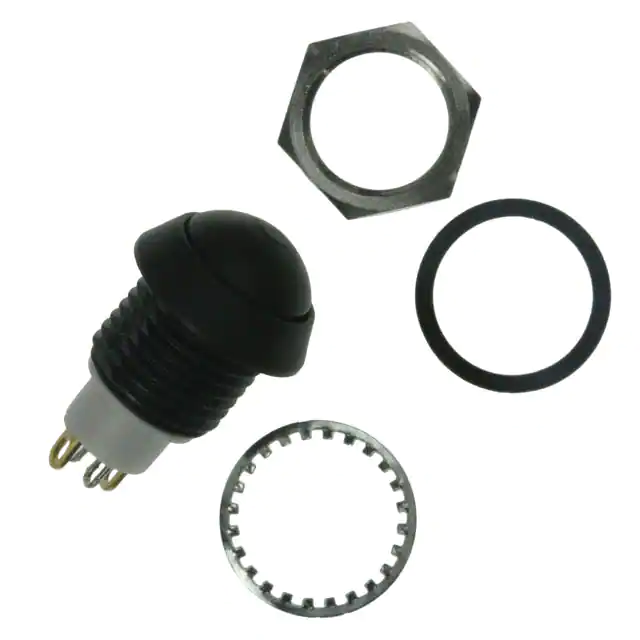

AP2D203TZBESWITCH PUSH SPST-NO 0.125A 125V C&K |
1,020 |
|
Datasheet |
AP | Tray | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button, Domed | No Marking | Black | LED, Red | 2 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 13.80mm Dia | -40°C ~ 85°C |
|

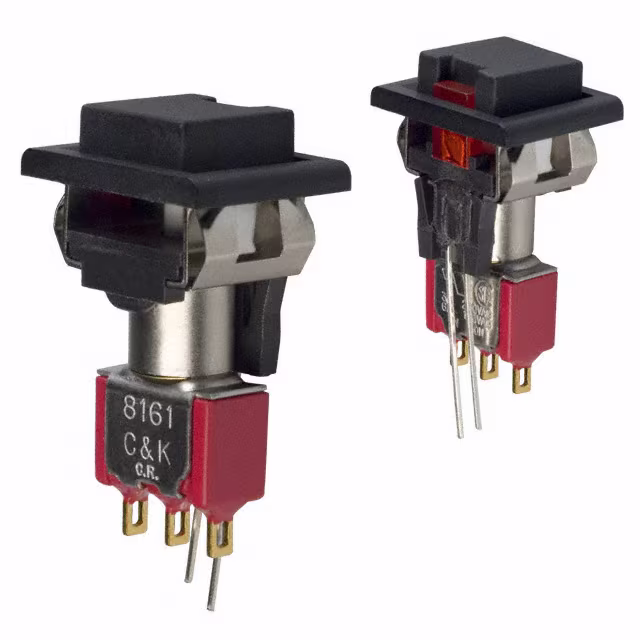

8161J86ZGE223SWITCH PUSHBUTTON SPDT 6A 120V C&K |
3,685 |
|
Datasheet |
8060 | Tray | Active | Panel Mount, Snap-In | Standard, Illuminated | SPDT | On-On | 6A (AC/DC) | 120 V | 28 V | Square, Button | No Marking | Black | LED, Red | 2.1 VDC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.24mm x 12.70mm | -30°C ~ 65°C |
|
ATPS19SL1306M0SA04GRING, RED, 6V, RND, SPST, MOM, L C&K |
3,774 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|

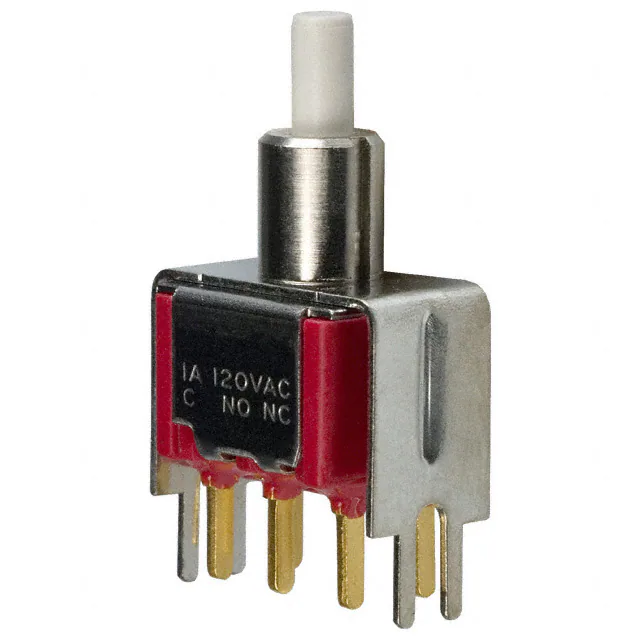

8221SD9V3GESWITCH PUSHBUTTON DPDT 1A 120V C&K |
2,591 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|
|
ATPS19SL5306M4SA04GR+PO, RED, 6V, DD SHA, SPST, MOM C&K |
2,202 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 6 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.00mm Dia | -20°C ~ 70°C |
|
|
ATPS19SL5303M0SA04GR+PO, RED, 3V, RND, SPST, MOM, L C&K |
2,937 |
|
Datasheet |
ATPS19 | Tray | Active | Panel Mount, Front | Anti-Vandal, Illuminated | SPST-NO | Off-Mom | 2A (DC) | - | 36 V | Round, Button, Flush | No Marking | Silver | LED, Red | 3 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | - | Circular - 19.20mm Dia | -20°C ~ 70°C |
|

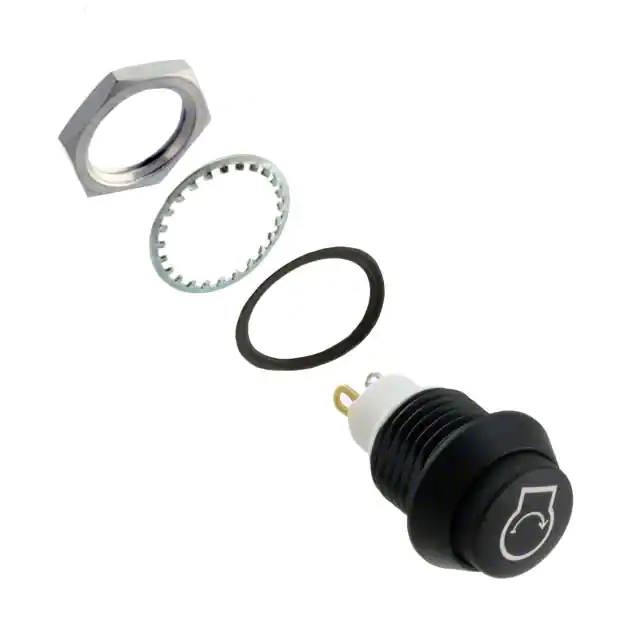

APB4E01TZBE005SWITCH PUSH SPST-NO 0.2A 24V C&K |
4,094 |
|
Datasheet |
APB | Box | Active | Panel Mount, Front | Standard, Illuminated | SPST-NO | Off-Mom | 125mA (AC), 200mA (DC) | 125 V | 24 V | Round, Button | Engine Start Symbol | Black | LED, White | 3.5 VDC | Solder Lug | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 13.80mm Dia | -40°C ~ 85°C |
|
Y97KT23B0NAFPLinear IC's C&K |
3,779 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
