Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PNP8E5D2C03QESWITCH PUSHBUTTON SPDT 5A 32V C&K |
4,815 |
|
Datasheet |
PNP | Tray | Active | Panel Mount, Front | Standard | SPDT | On-Mom | 5A (DC) | - | 32 V | Round, Button | No Marking | Yellow | - | - | Solder Lug | IP68 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Circular - 12.30mm Dia | -40°C ~ 85°C |
|

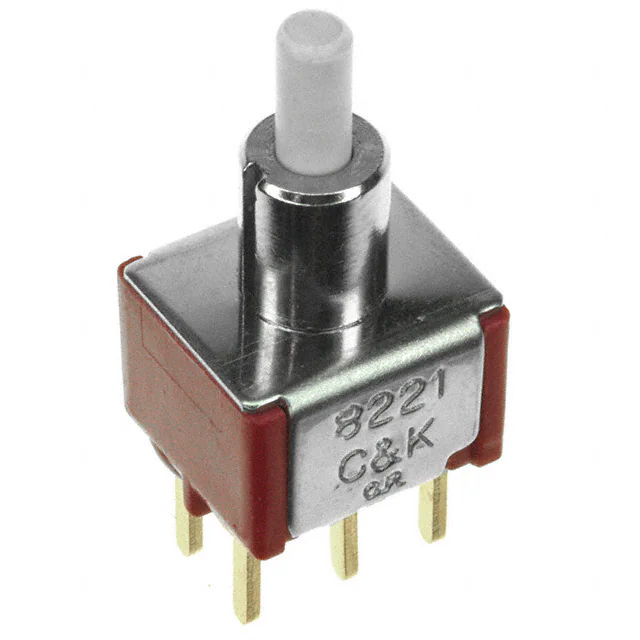

8221SD9CGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
4,114 |
|
Datasheet |
8020 | Tray | Active | Through Hole | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | - | -30°C ~ 75°C |
|

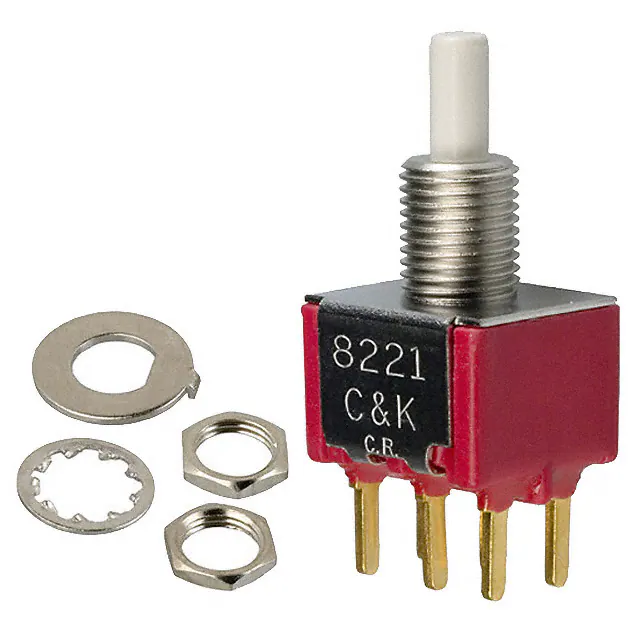

8221SDCGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
3,699 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
8221SHCGESWITCH PUSHBUTTON DPDT 1A 120V C&K |
3,142 |
|
Datasheet |
8020 | Bulk | Active | Panel Mount, Rear | Standard | DPDT | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Tactile Feedback | Circular - 6.35mm Dia | -30°C ~ 75°C |
|

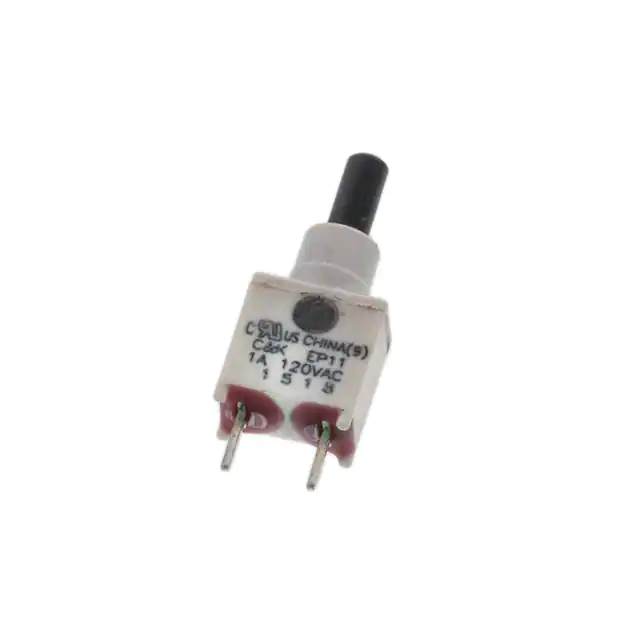

EP11SD1CQESWITCH PUSH SPST-NO 1A 120V C&K |
4,588 |
|
Datasheet |
EP | Bulk | Active | Through Hole | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | - | -30°C ~ 85°C |
|

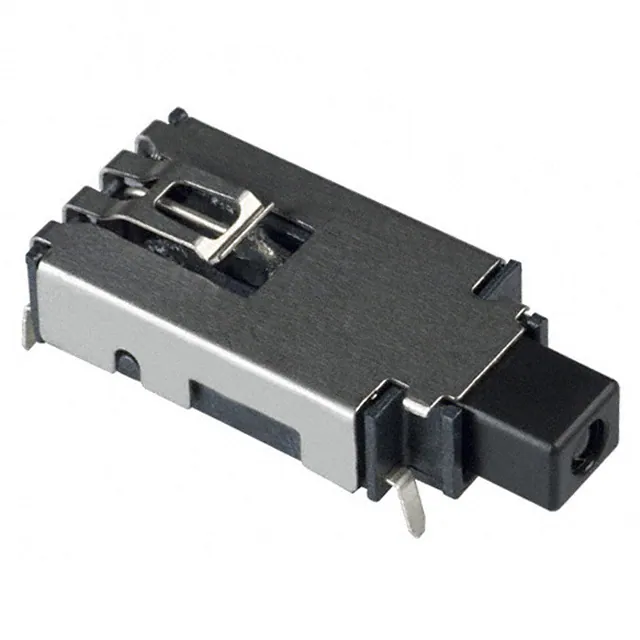

ELUMEETHQ2C12SWITCH PUSH SPDT 0.25A 50V C&K |
2,034 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green/Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
ELUMOATHQC02SWITCH PUSH SPDT 0.25A 50V C&K |
4,565 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | - | - | PC Pin | - | - | - | -40°C ~ 80°C |
|

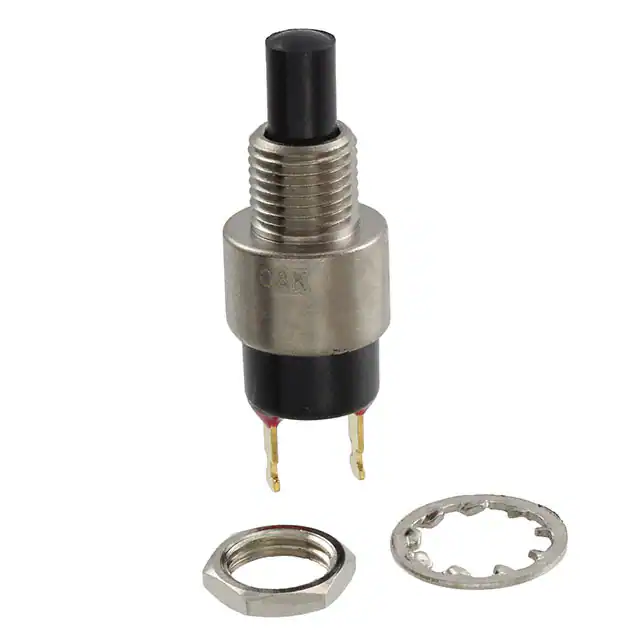

8531SZBE2SWITCH PUSH SPST-NO 0.4VA 20V C&K |
3,545 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | Black | - | - | Solder Lug | - | Epoxy Sealed Terminals | Circular - 6.35mm Dia | -30°C ~ 65°C |
|

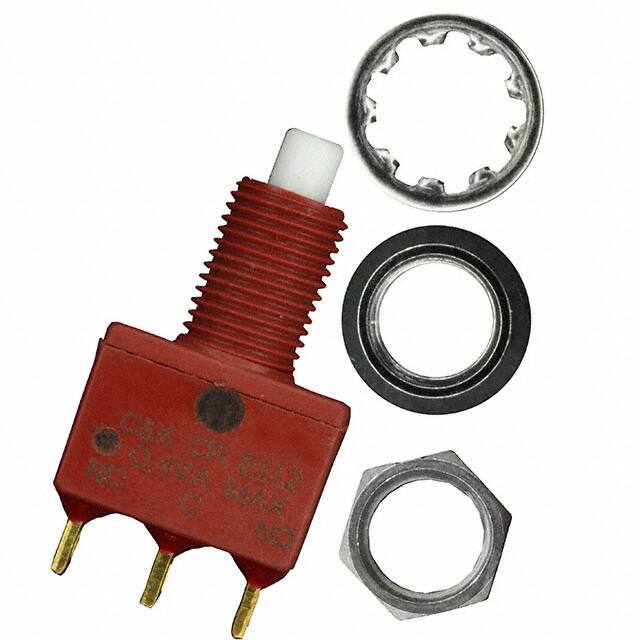

E112SYZBESWITCH PUSH SPDT 0.4VA 20V C&K |
4,512 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Plunger | No Marking | White | - | - | Solder Lug | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
E125MD1CBESWITCH PUSH SPDT 0.4VA 20V C&K |
1,989 |
|
Datasheet |
E020 | Bulk | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Plunger for Cap | No Marking | White | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 75°C |
