Pushbutton Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Marking | Color - Actuator/Cap | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ELUMOASAQ2C12SWITCH PUSH SPDT 0.25A 50V C&K |
3,639 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green/Red | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|
8532TCQE2SWITCH PUSH SPST-NO 1A 120V C&K |
1,567 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
E112LYCQESWITCH PUSHBUTTON SPDT 4A 125V C&K |
1,270 |
|
Datasheet |
E010 | Bulk | Active | Panel Mount, Rear | Standard | SPDT | On-Mom | 4A (AC/DC) | 125 V | 28 V | Round, Plunger | No Marking | White | - | - | PC Pin | - | Process Sealed | Circular - 6.35mm Dia | -30°C ~ 75°C |
|
|
ELUMOATHQ3C12SWITCH PUSH SPDT 0.25A 50V C&K |
4,107 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Red | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|
TP11LTAQESWITCH PUSH SPST-NO 1A 120V C&K |
2,450 |
|
Datasheet |
TP | Bulk | Active | Panel Mount, Right Angle, Rear | Standard | SPST-NO | Off-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Plunger | No Marking | Black | - | - | PC Pin | - | Sealed | Circular - 6.35mm Dia | -30°C ~ 85°C |
|
|
ELUMOATHQ6C12SWITCH PUSH SPDT 0.25A 50V C&K |
2,304 |
|
Datasheet |
ELUM™ | Tray | Active | Through Hole, Right Angle | Standard, Illuminated | SPDT | On-Mom | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Green | 2 VDC | PC Pin | - | - | - | -40°C ~ 80°C |
|

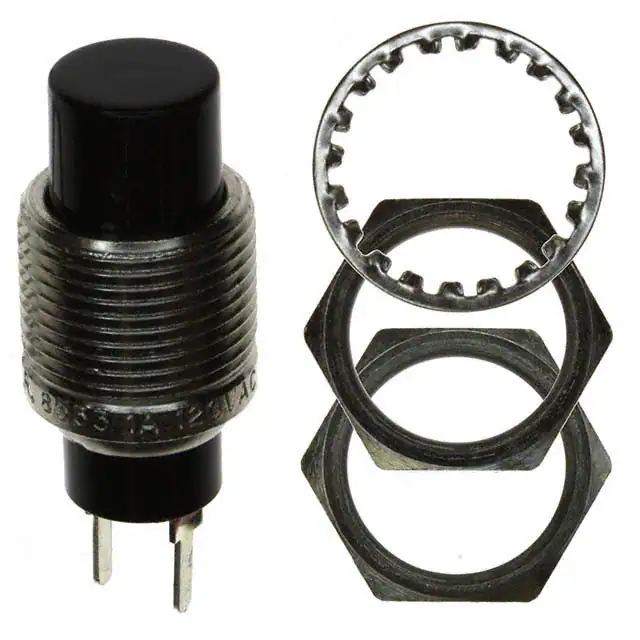

8533TCQE2SWITCH PUSH SPST-NC 1A 120V C&K |
1,726 |
|
Datasheet |
8500 | Tray | Active | Panel Mount, Rear | Standard | SPST-NC | On-Mom | 1A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | Circular - 11.91mm Dia | -30°C ~ 65°C |
|
ELUMEESAQ7C12SWITCH PUSH SPDT 0.25A 50V C&K |
3,968 |
|
Datasheet |
ELUM™ | Tape & Reel (TR) | Active | Surface Mount, Right Angle | Standard, Illuminated | SPDT | On-On | 250mA (DC) | - | 50 V | Rectangular, Button | No Marking | Black | LED, Blue | 2 VDC | Gull Wing | - | - | - | -40°C ~ 80°C |
|

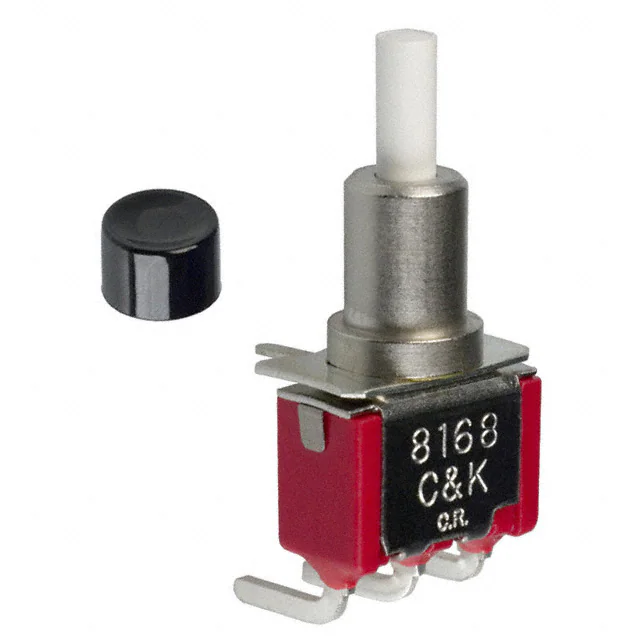

8168SH9AQE2SWITCH PUSHBUTTON SPDT 6A 120V C&K |
2,563 |
|
Datasheet |
8060 | Tray | Active | Through Hole, Right Angle | Standard | SPDT | On-Mom | 6A (AC/DC) | 120 V | 28 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
|

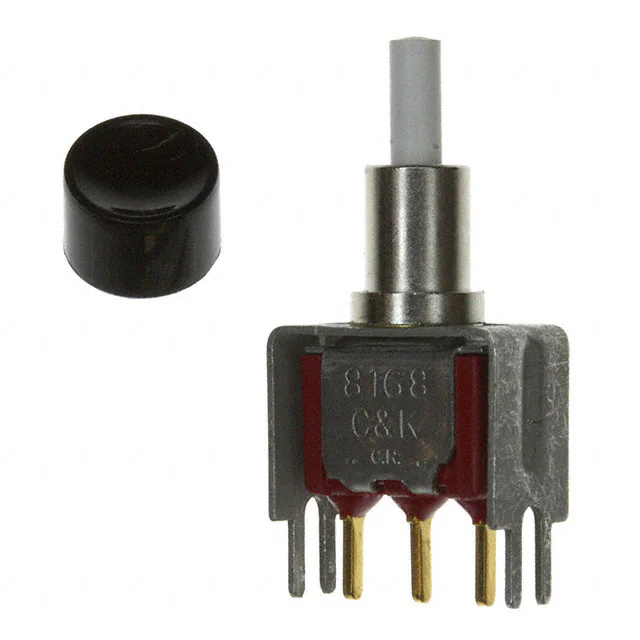

8168SH9V3BE2SWITCH PUSH SPDT 0.4VA 20V C&K |
3,910 |
|
Datasheet |
8060 | Tray | Active | Through Hole | Standard | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Round, Button | No Marking | Black | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 65°C |
