Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SW3833DSWITCH ROCKER 3PDT 30A 30V NKK Switches |
3,549 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3833D/USWITCH ROCKER 3PDT 30A 30V NKK Switches |
4,575 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-Off-On | 30A (DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3833/A/CULSWITCH ROCKER NKK Switches |
3,715 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
SW3832Z035SWITCH ROCKER 3PDT 30A 125V NKK Switches |
1,923 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
SW3832/CULHIGH CAPACITY ROCKER NKK Switches |
4,572 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PDT | On-On | 30A (AC/DC) | - | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
M2019TXW13-GASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,907 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
|
M2012TXW13-GASWITCH ROCKER SPDT 6A 125V NKK Switches |
1,041 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
M2032TXW13-DCSWITCH ROCKER 3PDT 6A 125V NKK Switches |
3,296 |
|
Datasheet |
M | Bulk | Obsolete | Through Hole | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Standard V) | Red | No Marking | - | - | PC Pin | - | Epoxy Sealed Terminals | - | -30°C ~ 85°C | CSA, UL |
|
CWSC21JCACSSWITCH ROCKER DPST 9A 125V NKK Switches |
3,225 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Red Filter/Diffuser) | No Marking | LED, Red | 1.95 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|

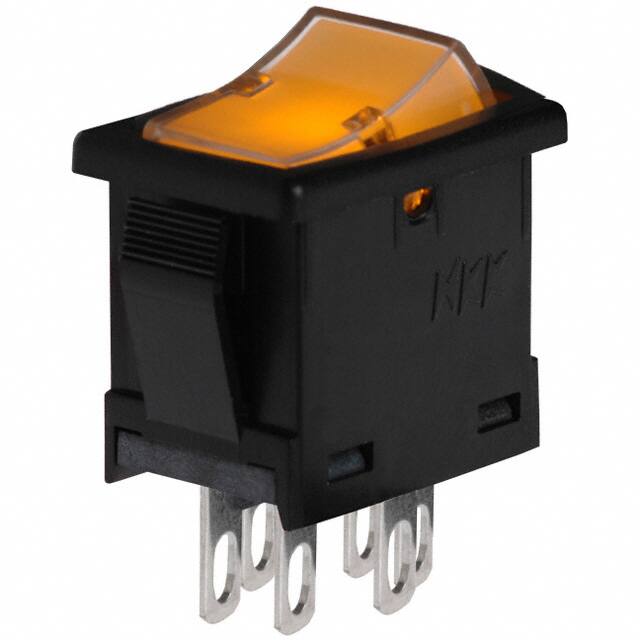

CWSC21JDADSSWITCH ROCKER DPST 9A 125V NKK Switches |
2,338 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Amber Filter/Diffuser) | No Marking | LED, Amber | 2 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
