Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWSC21JFAFSSWITCH ROCKER DPST 9A 125V NKK Switches |
1,014 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | DPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Green Filter/Diffuser) | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|

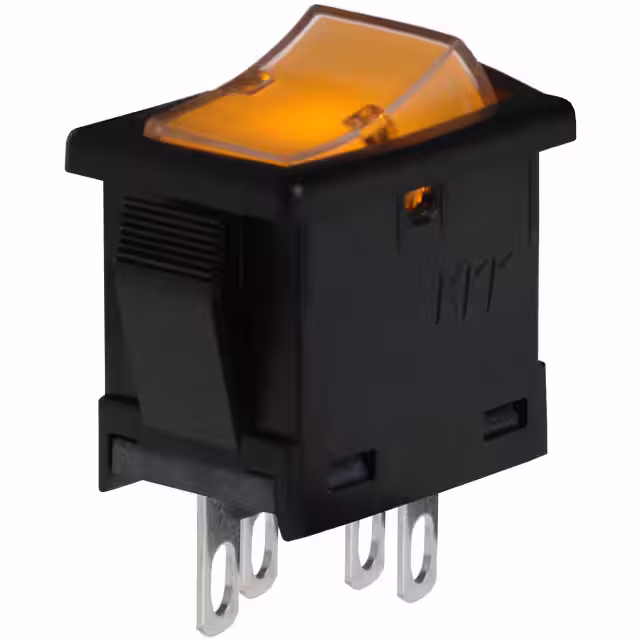

CWSC11JDADSSWITCH ROCKER SPST 9A 125V NKK Switches |
1,056 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Amber Filter/Diffuser) | No Marking | LED, Amber | 2 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|

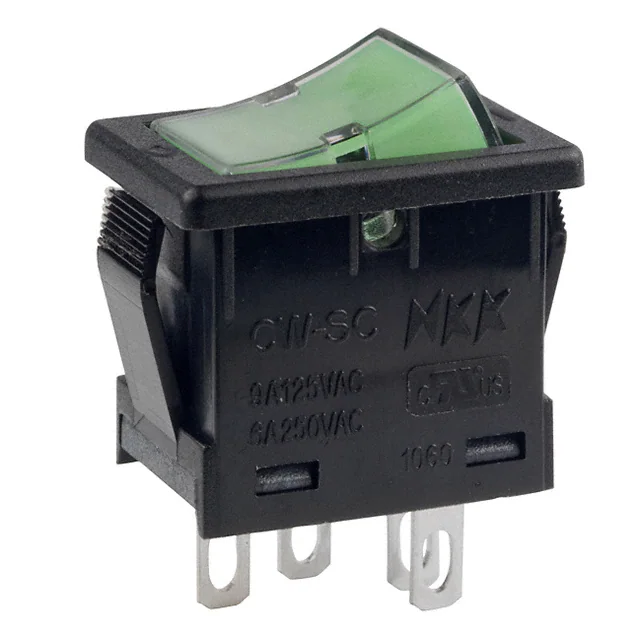

CWSC11JFAFSSWITCH ROCKER SPST 9A 125V NKK Switches |
1,237 |
|
Datasheet |
CWSC | Bulk | Obsolete | Panel Mount, Snap-In | SPST | On-Off | 9A (AC) | 125 V | - | Concave (Curved) - Illuminated | Clear (Green Filter/Diffuser) | No Marking | LED, Green | 2.1 VDC | Quick Connect - 0.110" (2.8mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 50°C | UL |
|
M2122RFG03SWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
3,272 |
|
Datasheet |
M2100 | Bulk | Obsolete | Panel Mount, Flange | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Standard V) - Illuminated | Black | No Marking | LED, Green | 2.2 VDC | PC Pin | - | - | Rectangular - 17.80mm x 10.10mm | -10°C ~ 55°C | CSA, UL |
|
|
SW3211-ROSWITCH ROCKER SPST 3A 125V NKK Switches |
2,063 |
|
Datasheet |
SW | Bulk | Obsolete | Panel Mount, Flange | SPST | On-Off | 3A (AC), 1.5A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | - | -10°C ~ 70°C | CSA, UL |
|
|
MLW3028-12-DC-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
3,499 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|

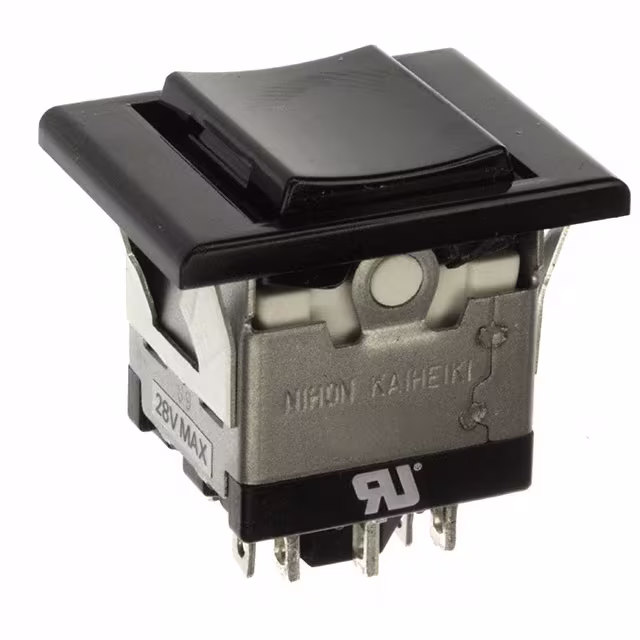

MLW3023-N-RB-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
2,305 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Neon, White | 110 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
LW3122-0100-ASWITCH ROCKER DPDT 10A 125V NKK Switches |
4,030 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
LW3128SWITCH ROCKER DPDT 10A 125V NKK Switches |
4,234 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
MLW3028-28-RB-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
4,082 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 28 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
