Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MLW3028-28-RB-2ASWITCH ROCKER DPDT 5A 125V NKK Switches |
2,710 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | Mom-Off-Mom | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | White | No Marking | Incandescent, White | 28 VAC | Solder Lug | - | Epoxy Sealed Terminals | Square - 19.20mm² | -10°C ~ 50°C | UL |
|
|
M2018TJW01-GC-1ASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,301 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Red | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|

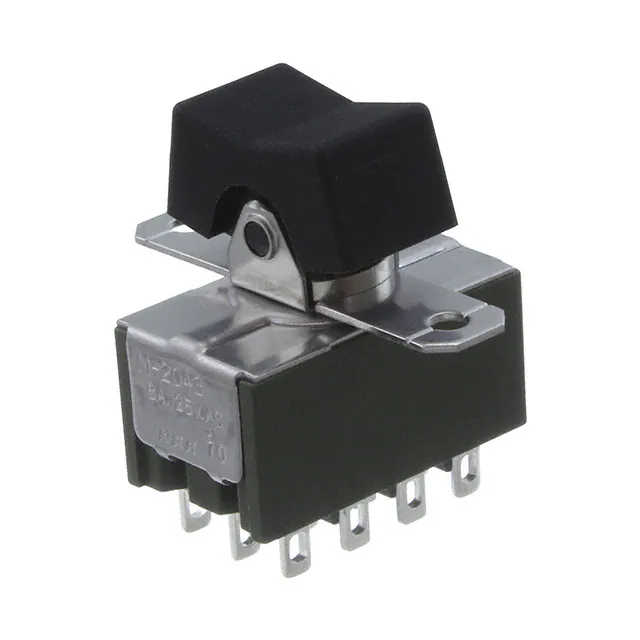

M2043TNW01-DASWITCH ROCKER 4PDT 6A 125V NKK Switches |
4,379 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Flange | 4PDT | On-Off-On | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 17.80mm x 10.10mm | -30°C ~ 85°C | CSA, UL |
|

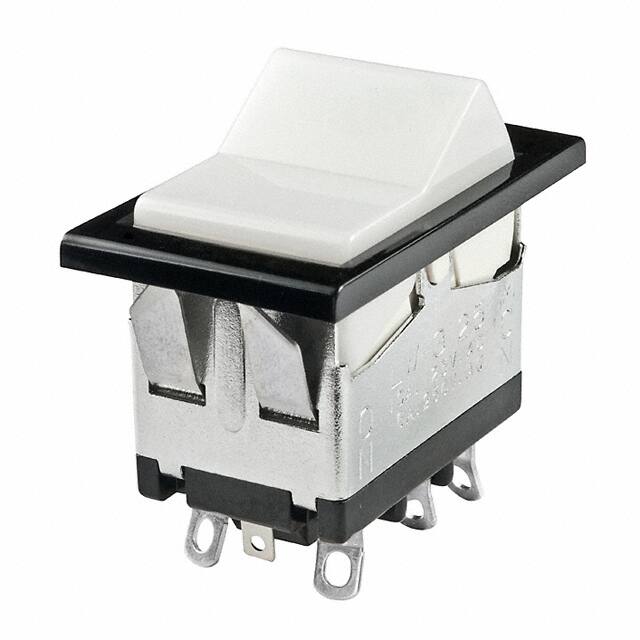

LW3125-0100-ASWITCH ROCKER DPDT 10A 125V NKK Switches |
3,990 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
M2018TJW01-FA-1ASWITCH ROCKER SPDT 6A 125V NKK Switches |
1,816 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Concave (Standard V) | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
M2018TJW01-GA-1ASWITCH ROCKER SPDT 6A 125V NKK Switches |
4,109 |
|
Datasheet |
M | Tray | Obsolete | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 6A (AC), 3A (DC) | 125 V | 30 V | Paddle | Black | No Marking | - | - | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 15.90mm x 12.50mm | -30°C ~ 85°C | CSA, UL |
|
LW3122SWITCH ROCKER DPDT 10A 125V NKK Switches |
2,099 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 10A (AC), 6A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
|
MLW3022-12-RF-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
1,166 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Green | No Marking | Incandescent, Green | 12 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
MLW3022-28-RC-1ASWITCH ROCKER DPDT 5A 125V NKK Switches |
2,536 |
|
Datasheet |
MLW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-On | 5A (AC), 3A (DC) | 125 V | 30 V | Concave (Curved) - Illuminated | Red | No Marking | Incandescent, Red | 28 VAC | Solder Lug | - | Epoxy Sealed Terminals | Rectangular - 18.70mm x 16.70mm | -10°C ~ 50°C | UL |
|
|
LW3123SWITCH ROCKER DPDT 10A 125V NKK Switches |
4,182 |
|
Datasheet |
LW | Tray | Obsolete | Panel Mount, Snap-In | DPDT | On-Off-On | 10A (AC), 6A (DC) | 125 V | 30 V | Actuator Arm, Cap Required | - | Varies by Cap | - | - | Solder Lug | - | - | Rectangular - 32.00mm x 19.80mm | -20°C ~ 50°C | CSA, UL |
