Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WR11AFSWITCH ROCKER SPST 15A 125V NKK Switches |
1,111 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.250" (6.3mm) | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
WR18ALSWITCH ROCKER SPDT 15A 125V NKK Switches |
340 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPDT | Mom-Off-Mom | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
WR11ALSWITCH ROCKER SPST 15A 125V NKK Switches |
119 |
|
Datasheet |
WR | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 15A (AC/DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Wire Leads | IP67 - Dust Tight, Waterproof | - | Rectangular - 34.20mm x 17.20mm | -25°C ~ 85°C | EN, UL |
|
SW3822SWITCH ROCKER DPDT 30A 125V NKK Switches |
173 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | DPDT | On-On | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|
SW3831/USWITCH ROCKER 3PST 30A 125V NKK Switches |
827 |
|
Datasheet |
SW | Bulk | Active | Panel Mount, Flange | 3PST | On-Off | 30A (AC/DC) | 125 V | 30 V | Concave (Standard V) | White | No Marking | - | - | Screw Terminal | - | - | - | -10°C ~ 70°C | CSA, UL |
|

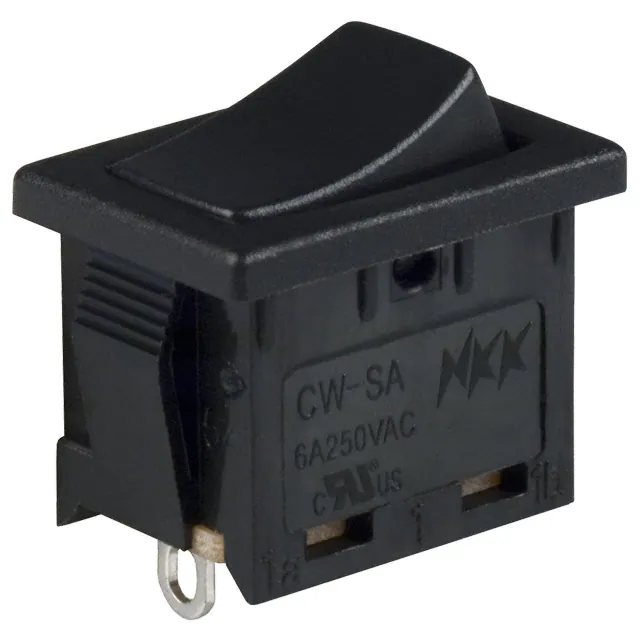

CWSA11AANSSWITCH ROCKER SPST 6A 250V NKK Switches |
3,835 |
|
Datasheet |
CWSA | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
GW12LCVSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
164 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

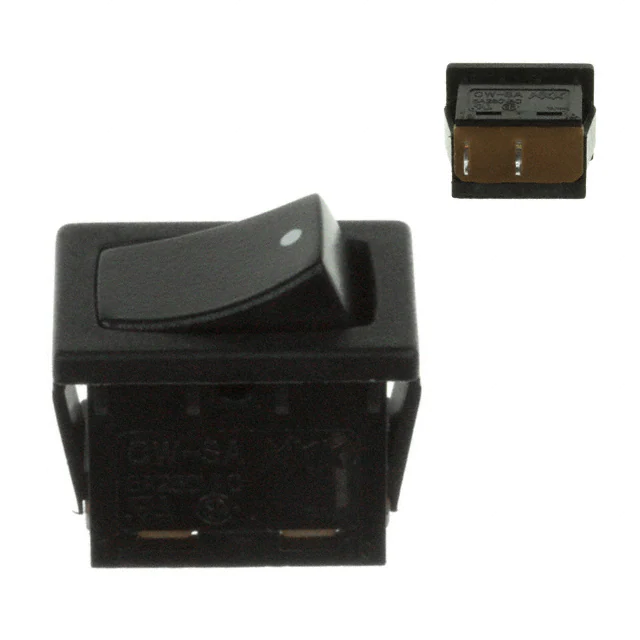

CWSA11AAN3SSWITCH ROCKER SPST 6A 250V NKK Switches |
207 |
|
Datasheet |
CWSA | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | Dot | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|

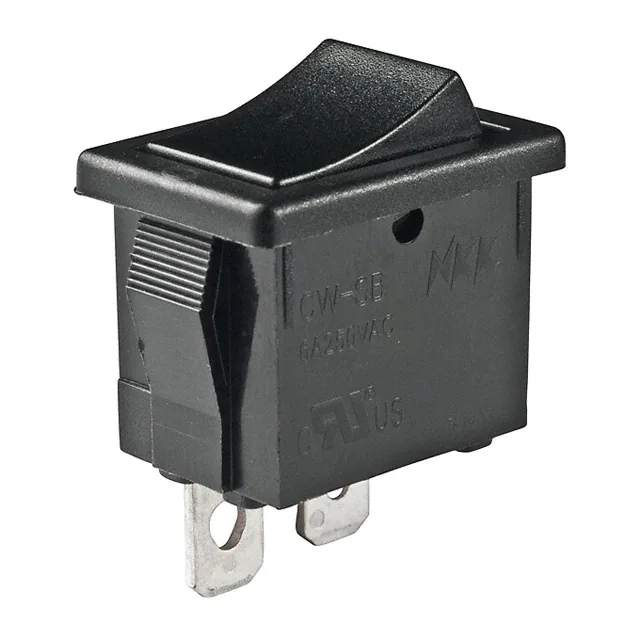

CWSB11AAFSWITCH ROCKER SPST 6A 250V NKK Switches |
911 |
|
Datasheet |
CWSB | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Quick Connect - 0.187" (4.7mm) | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
CWSA12AANSSWITCH ROCKER SPDT 6A 250V NKK Switches |
316 |
|
Datasheet |
CWSA | Tray | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | Solder Lug | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
