Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

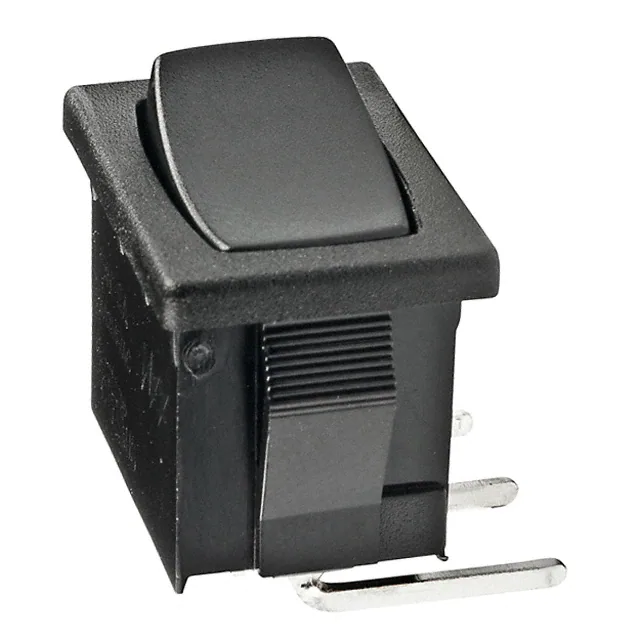

CWSA12AANHSWITCH ROCKER SPDT 6A 250V NKK Switches |
208 |
|
Datasheet |
CWSA | Tray | Active | Panel Mount, Snap-In, Right Angle | SPDT | On-On | 6A (AC) | 250 V | - | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | - | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
CWT12AAS1/USWITCH ROCKER SPDT 6A 125V NKK Switches |
1,690 |
|
Datasheet |
CWT | Bulk | Active | Panel Mount, Snap-In | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Concave (Curved) | Black | No Marking | - | - | Solder Lug | Dust Proof | Epoxy Sealed Terminals | Rectangular - 19.20mm x 6.80mm | -25°C ~ 70°C | cULus |
|

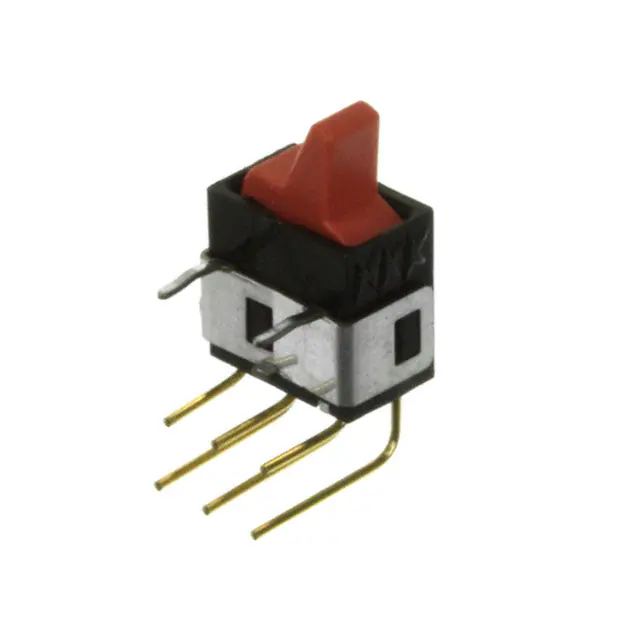

GW22LCHSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
2,085 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

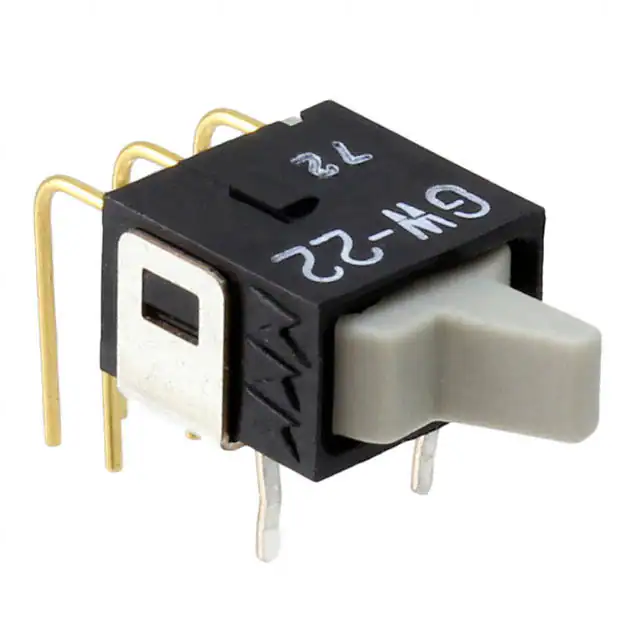

GW22LHHSWITCH ROCKER DPDT 0.4VA 28V NKK Switches |
179 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | DPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GW12RBPSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
133 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|
GW12LHPSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
111 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Gray | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

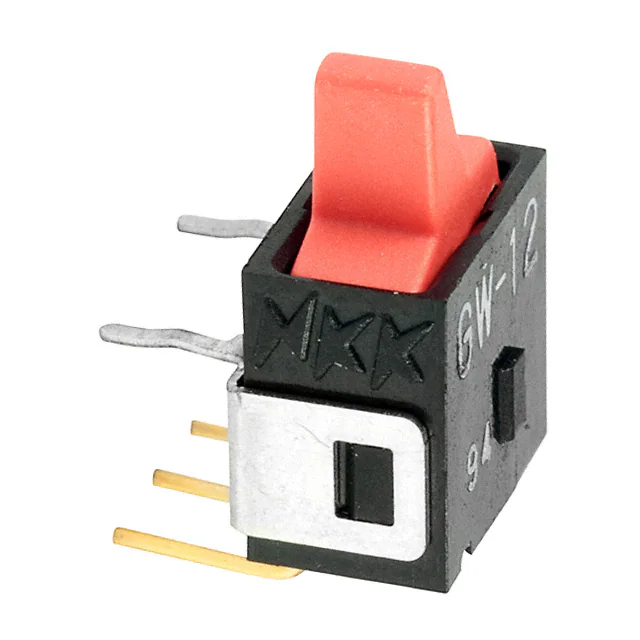

GW12LCHSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
224 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | Red | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

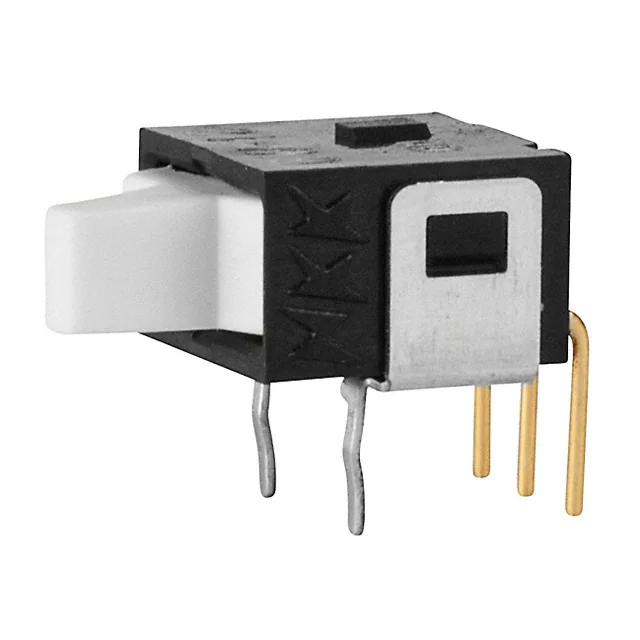

GW12LBHSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
170 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle | White | No Marking | - | - | PC Pin | - | Sealed - Flux Protection | - | -30°C ~ 85°C | CSA, UL |
|

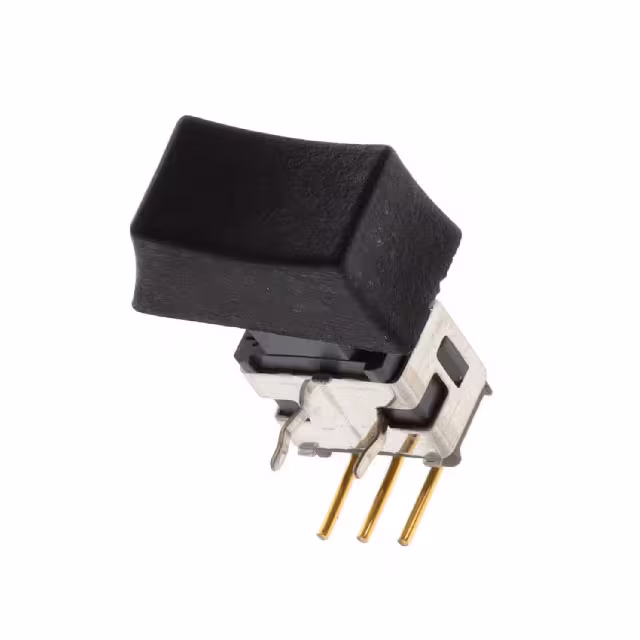

A12K1H-EASWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
124 |
|
Datasheet |
A | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Concave (Curved) | Black | No Marking | - | - | PC Pin | - | Process Sealed | - | -30°C ~ 85°C | CSA, UL |
|

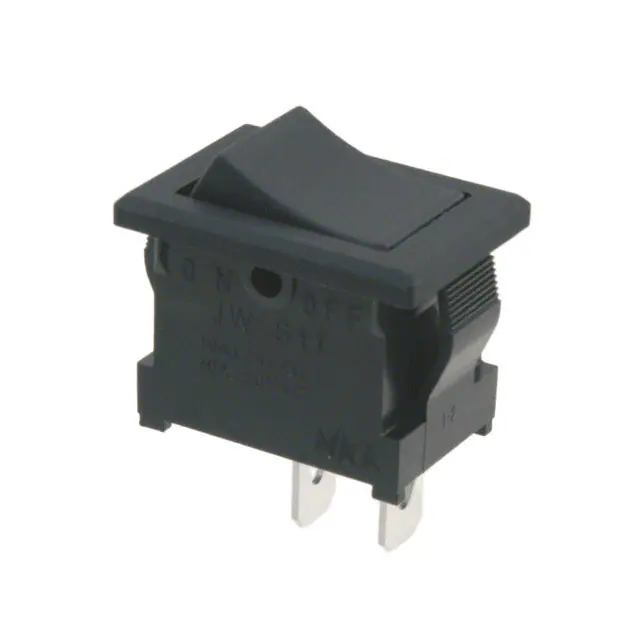

JWS11RAASWITCH ROCKER SPST 6A 125V NKK Switches |
116 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
