Rocker Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Color - Actuator/Cap | Actuator Marking | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Ingress Protection | Features | Panel Cutout Dimensions | Operating Temperature | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CWSB21AA1HSWITCH ROCKER DPST 6A 250V NKK Switches |
262 |
|
Datasheet |
CWSB | Tray | Active | Panel Mount, Snap-In, Right Angle | DPST | On-Off | 6A (AC) | 250 V | - | Concave (Curved) | Black | O I | - | - | PC Pin | - | Audible Click | Rectangular - 19.20mm x 12.90mm | -10°C ~ 70°C | cULus |
|
JWM11RC1A/UCVSWITCH ROCKER SPST 10A 125V NKK Switches |
171 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Red | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

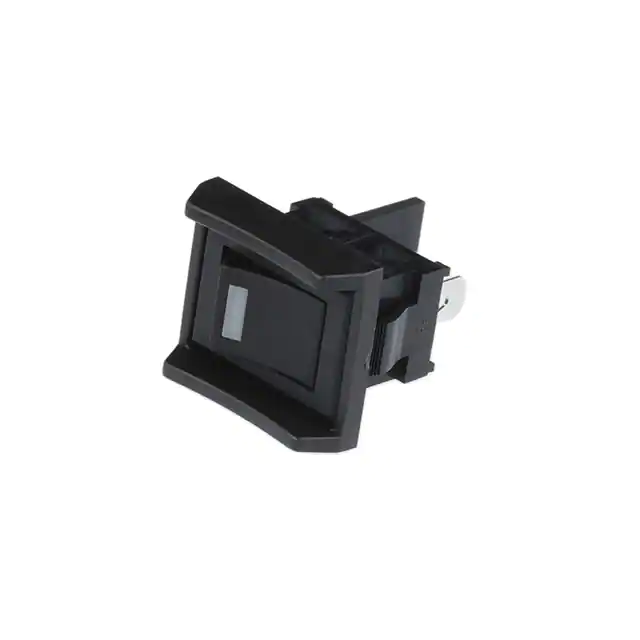

JWS11BAAC-ASWITCH ROCKER SPST 6A 125V NKK Switches |
640 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) - Illuminated | Black | No Marking | LED, Red | 1.8 VDC | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | With Barrier | Rectangular - 19.20mm x 12.90mm | -25°C ~ 50°C | CSA, UL, VDE |
|

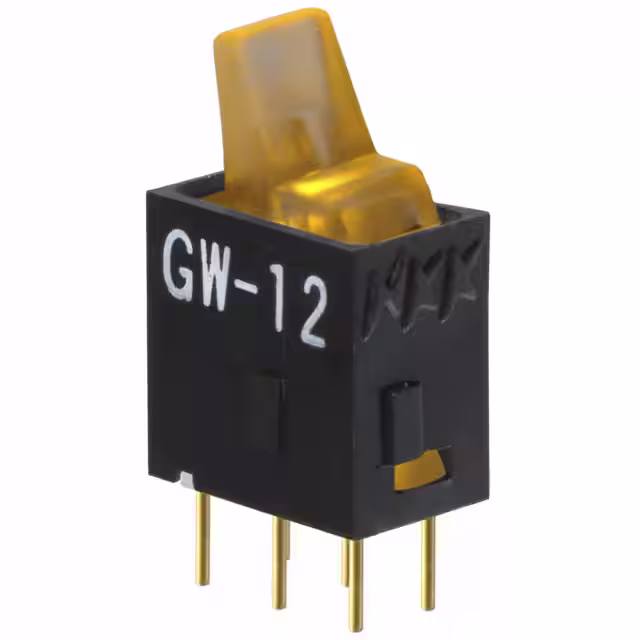

GW12LJPDSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
135 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Amber | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|

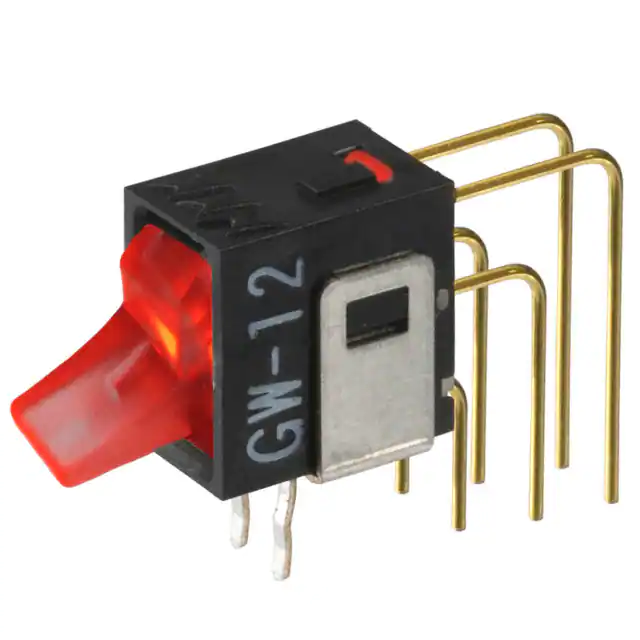

GW12LJVCSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
4,240 |
|
Datasheet |
GW | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Red | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|
JWM11RAASWITCH ROCKER SPST 10A 125V NKK Switches |
1,855 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

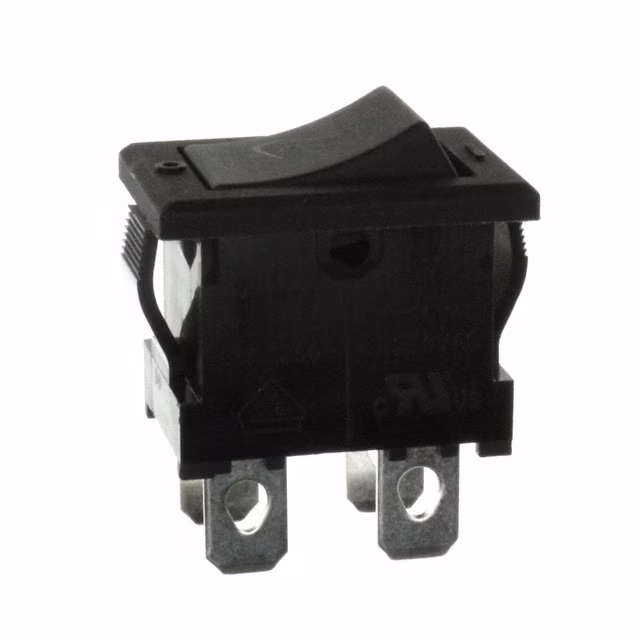

JWS21RAA/UCVSWITCH ROCKER DPST 6A 125V NKK Switches |
4,410 |
|
Datasheet |
JWS | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 6A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.187" (4.7mm) | Dust Proof | - | Rectangular - 19.20mm x 12.90mm | -25°C ~ 70°C | CSA, UL, VDE |
|

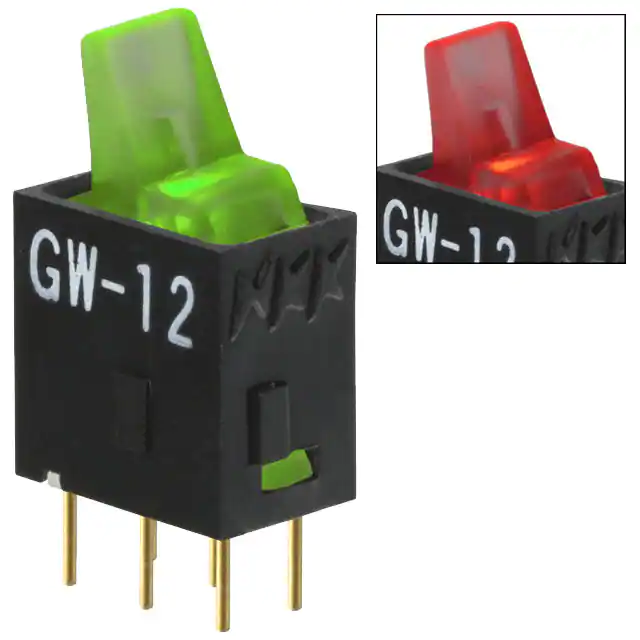

GW12LJPCFSWITCH ROCKER SPDT 0.4VA 28V NKK Switches |
328 |
|
Datasheet |
GW | Tray | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Paddle - Illuminated | Clear | No Marking | LED, Green/Red | 2 VDC | PC Pin | - | Sealed - Flux Protection | - | -25°C ~ 55°C | CSA, UL |
|

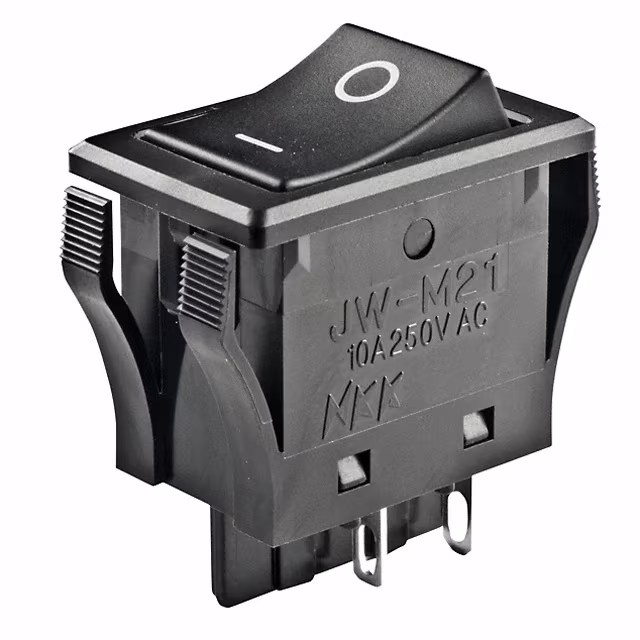

JWM21RA1A/UCVSWITCH ROCKER DPST 10A 125V NKK Switches |
103 |
|
Datasheet |
JW | Bulk | Active | Panel Mount, Snap-In | DPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | O I | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
|

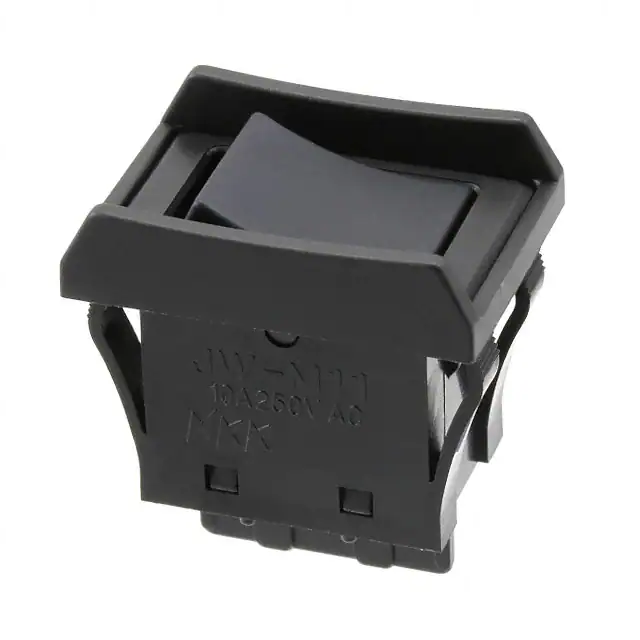

JWM11BAA-ASWITCH ROCKER SPST 10A 125V NKK Switches |
142 |
|
Datasheet |
JW | Tray | Active | Panel Mount, Snap-In | SPST | On-Off | 10A (AC) | 125 V | - | Concave (Curved) | Black | No Marking | - | - | Solder, Quick Connect - 0.110" (2.8mm) | Dust Proof | Epoxy Sealed Terminals | Rectangular - 24.00mm x 15.40mm | -25°C ~ 70°C | CSA, UL, VDE |
