Rotary Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Number of Positions | Index Stops | Number of Decks | Number of Poles per Deck | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Depth Behind Panel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MRB22B-ASWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
1,747 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
|
MRT23-CASWITCH ROTARY 3POS 5A 125V NKK Switches |
3,376 |
|
Datasheet |
MR | Bulk | Last Time Buy | 3 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 3A (DC) | 125 V | 30 V | Knob | 15.80mm | 60° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 12.00mm |
|
|
MRT23-CGSWITCH ROTARY 3POS 5A 125V NKK Switches |
2,641 |
|
Datasheet |
MR | Bulk | Last Time Buy | 3 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 5A (AC), 3A (DC) | 125 V | 30 V | Knob | 15.80mm | 60° | Silver Alloy | - | Panel Mount, Right Angle | Solder Lug | Sealed - Flux Protection | 12.00mm |
|
|
MRB12H-A-AT535SWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
2,076 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | IP67 - Dust Tight, Waterproof | 12.56mm |
|
|
MRB22B-A-AT535SWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
2,907 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 2 | DPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 11.00mm |
|

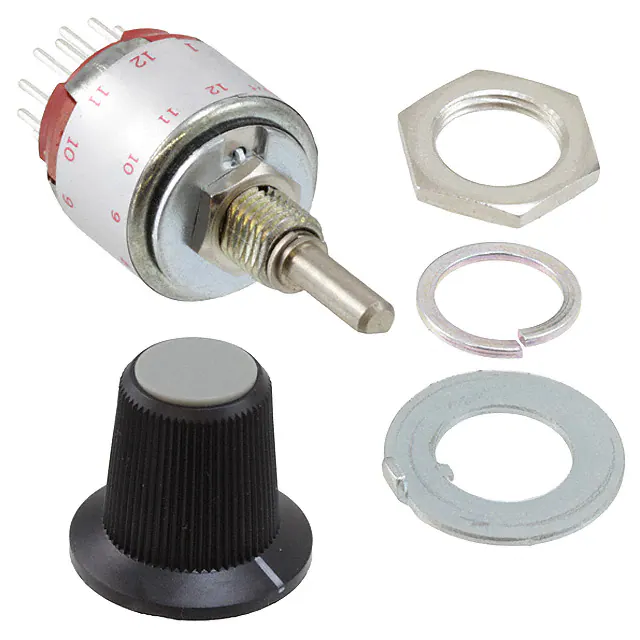

MRA112-CBSWITCH ROTARY 2-12POS 250MA 125V NKK Switches |
1,132 |
|
Datasheet |
MR | Bulk | Obsolete | 2 ~ 12 | Adjustable | 1 | 1 | SP12T | Non-Shorting (BBM) | 250mA (AC) | 125 V | - | Knob | 15.80mm | 30° | Copper | Silver | Panel Mount, Through Hole | PC Pin | Process Sealed | 17.00mm |
|
|
MRB12B-CASWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
4,549 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | Sealed - Fully | 11.00mm |
|
|
MRB14H-ASWITCH ROTARY 3POS 0.4VA 28V NKK Switches |
3,258 |
|
Datasheet |
MRB | Bulk | Active | 3 | Fixed | 1 | 1 | SP3T | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 13.00mm | 45° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 12.56mm |
|
|
MRB12B-CA-AT535SWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
1,102 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 15.80mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | 11.00mm |
|
|
MRB12H-BASWITCH ROTARY 2POS 0.4VA 28V NKK Switches |
3,004 |
|
Datasheet |
MRB | Bulk | Active | 2 | Fixed | 1 | 1 | SPDT | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Knob | 14.30mm | 90° | Beryllium Copper | Gold | Panel Mount, Through Hole, Right Angle | PC Pin | Sealed - Fully | 12.56mm |
