Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

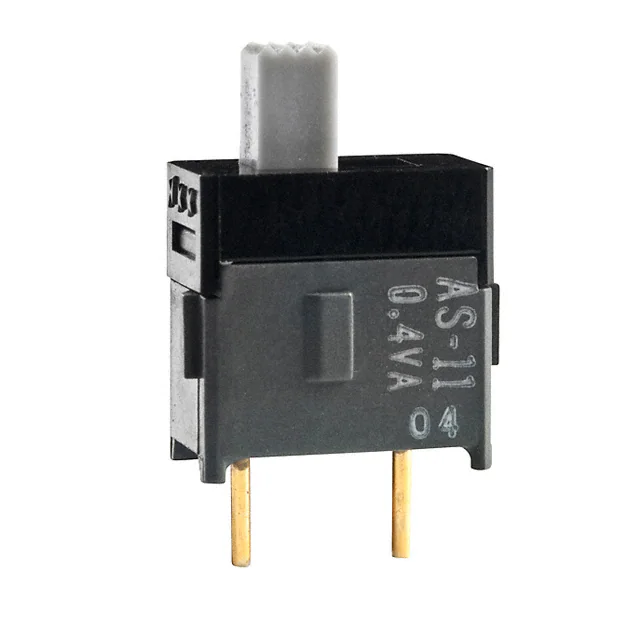

AS11CPSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
1,986 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

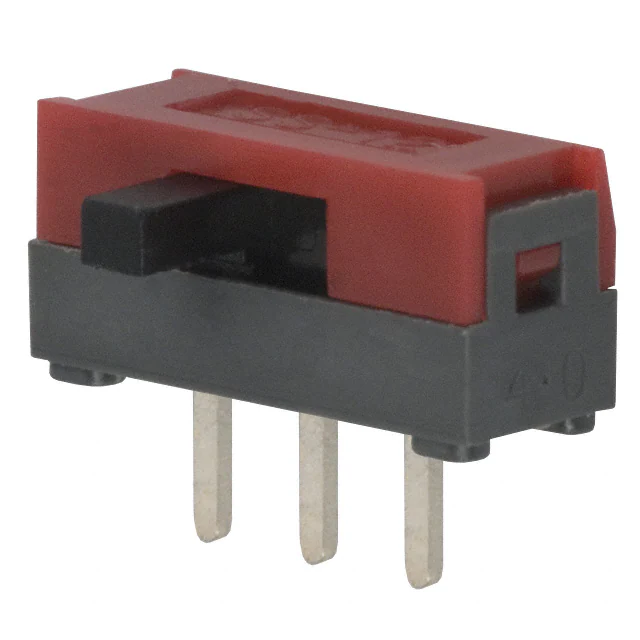

SS12SDH2SWITCH SLIDE SPDT 100MA 30V NKK Switches |
729 |
|
Datasheet |
SS | Tray | Active | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|

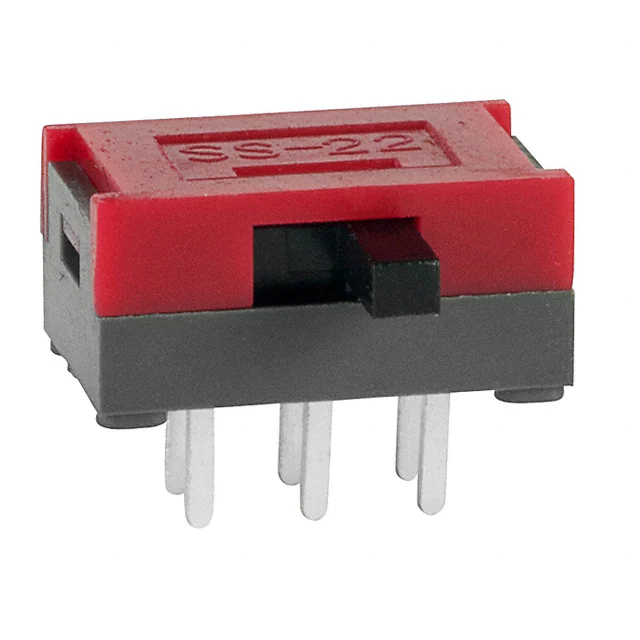

SS22SDH2SWITCH SLIDE DPDT 100MA 30V NKK Switches |
3,760 |
|
Datasheet |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Standard | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
SS22SDH4SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,514 |
|
Datasheet |
SS | Tray | Active | DPDT | Shorting (MBB) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | - |
|

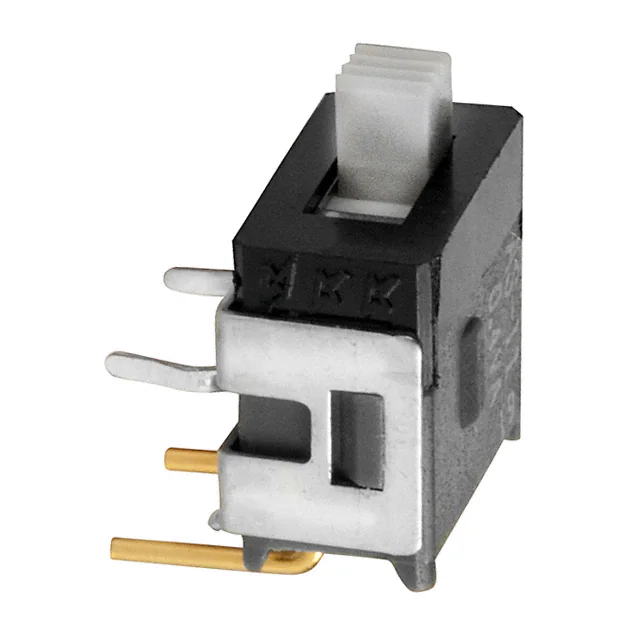

AS11AHSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
1,442 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

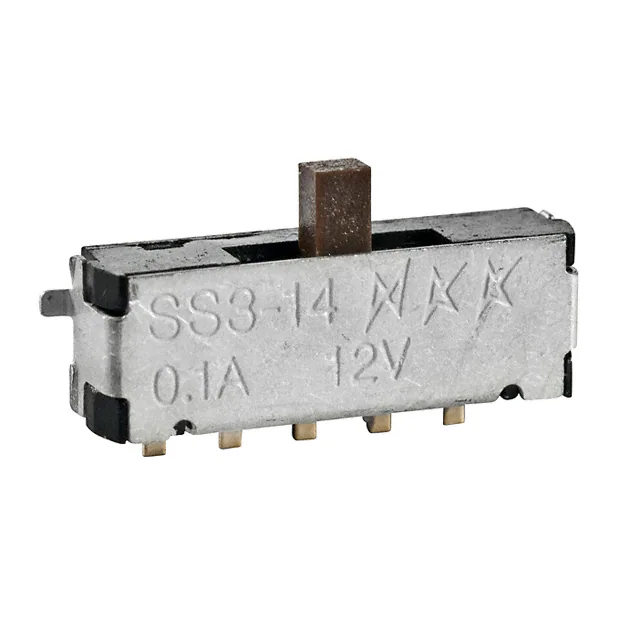

SS314MAH4SWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
163 |
|
Datasheet |
SS3 | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On/On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.00mm | Phosphor Bronze | Gold | Surface Mount, Right Angle | Gull Wing | - |
|

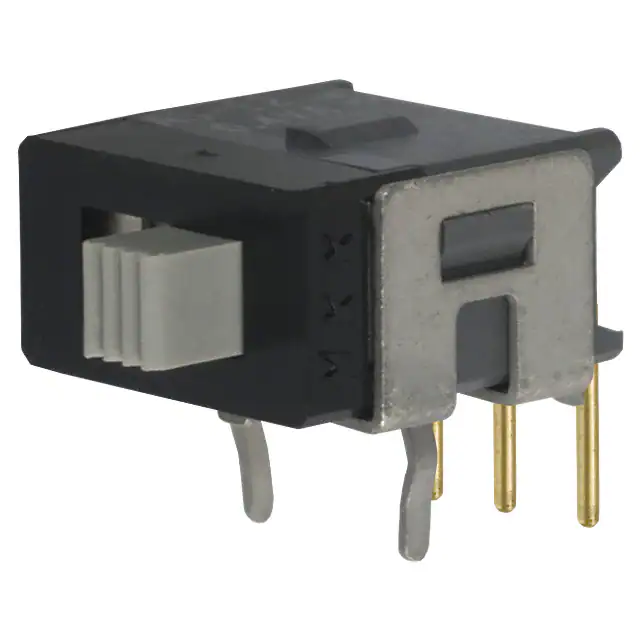

AS12AHSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
4,127 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

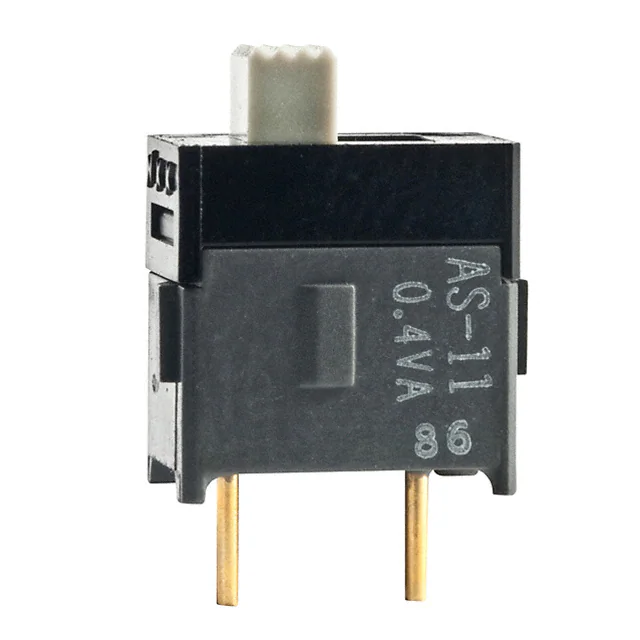

AS11APSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
2,440 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

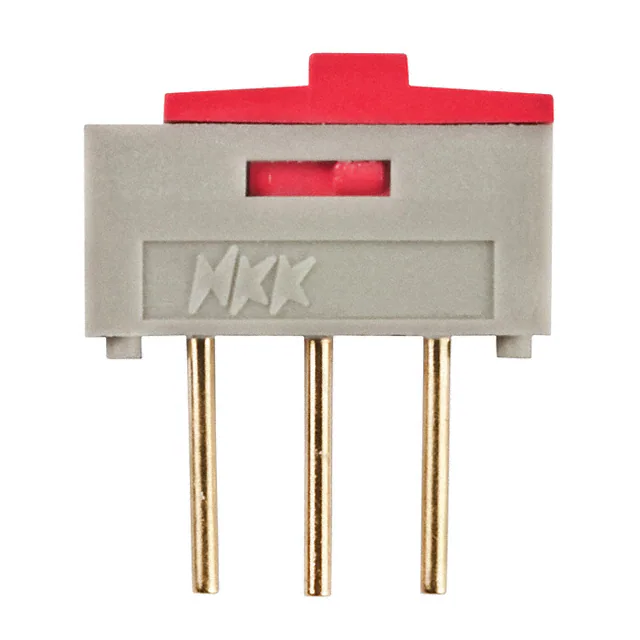

SM0320102SWITCH SLIDE SPDT 500MA 12V NKK Switches |
1,494 |
|
Datasheet |
SM | Bulk | Active | SPDT | Non-Shorting (BBM) | On-On | 500mA (DC) | - | 12 V | Standard | 1.40mm | Brass | Gold | Through Hole | PC Pin | - |
|

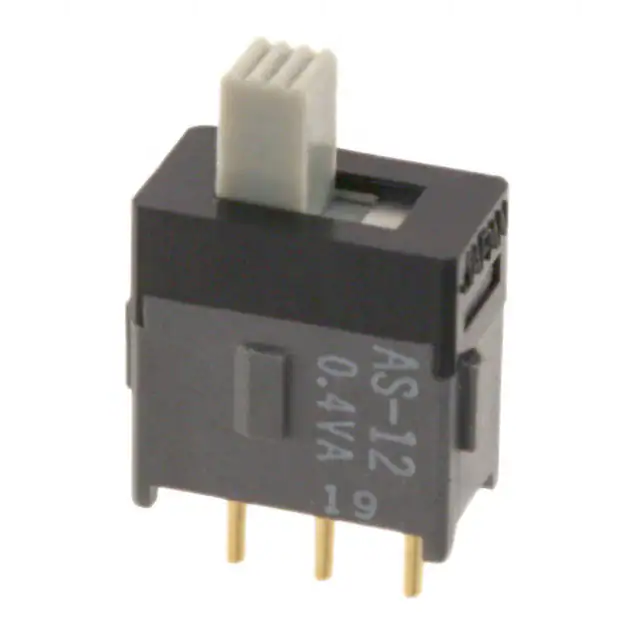

AS12CPSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
327 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
