Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

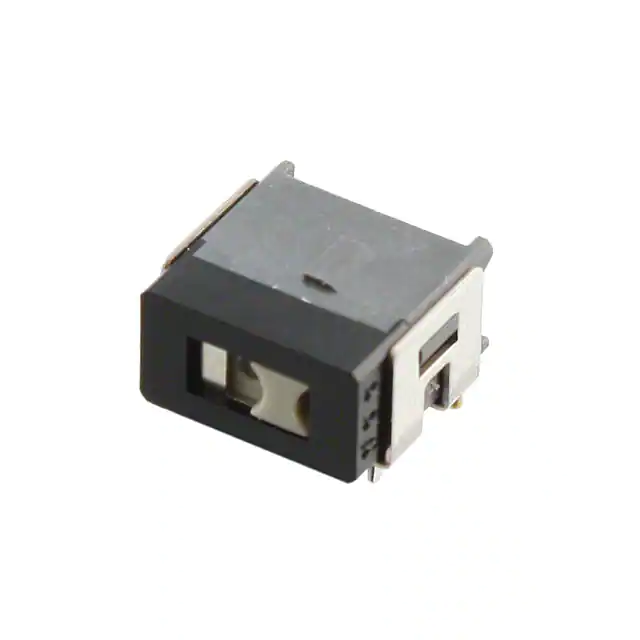

AS12BHSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
133 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
AS11BWSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
190 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|
AS11CVSWITCH SLIDE SPST 0.4VA 28V NKK Switches |
629 |
|
Datasheet |
AS | Tray | Active | SPST | Non-Shorting (BBM) | On-Off | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

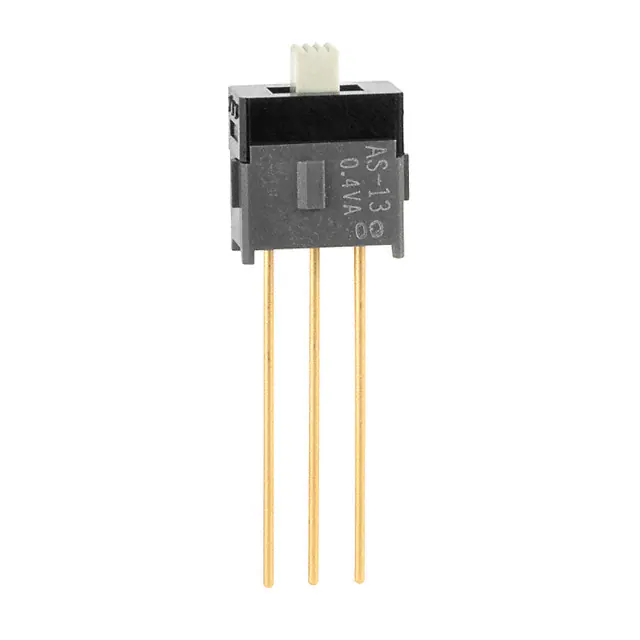

AS13AWSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
399 |
|
Datasheet |
AS | Tube | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | Wire Wrap | Epoxy Sealed Terminals |
|

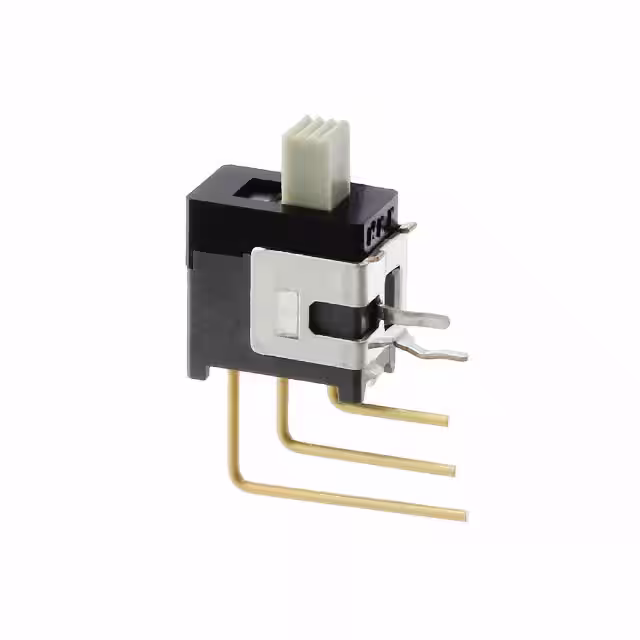

AS12CVSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
566 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

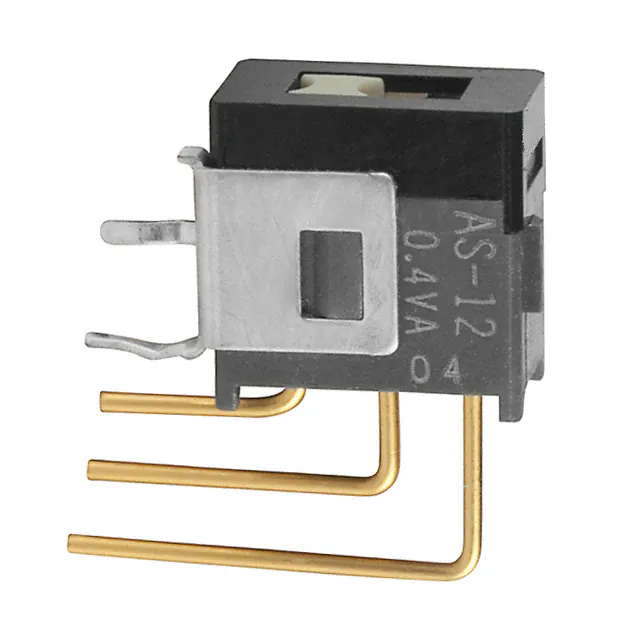

AS12BVSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
174 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Flush | Flush | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

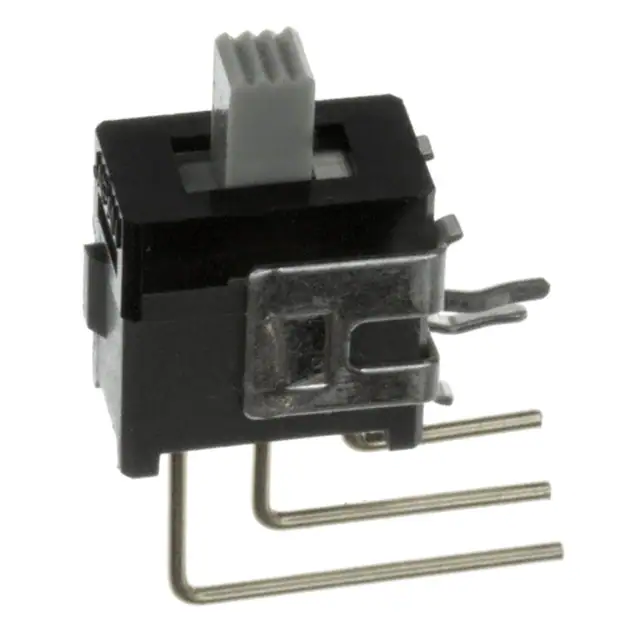

AS13CVSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
154 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

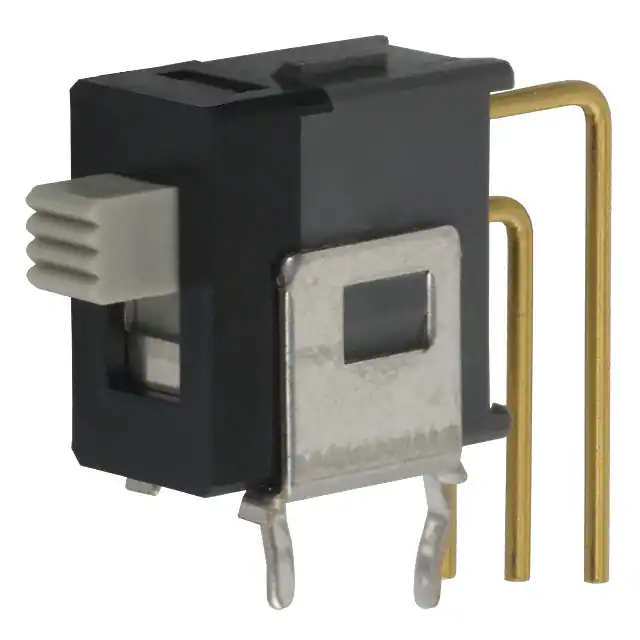

AS13AVSWITCH SLIDE SPDT 0.4VA 28V NKK Switches |
1,048 |
|
Datasheet |
AS | Tray | Active | SPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

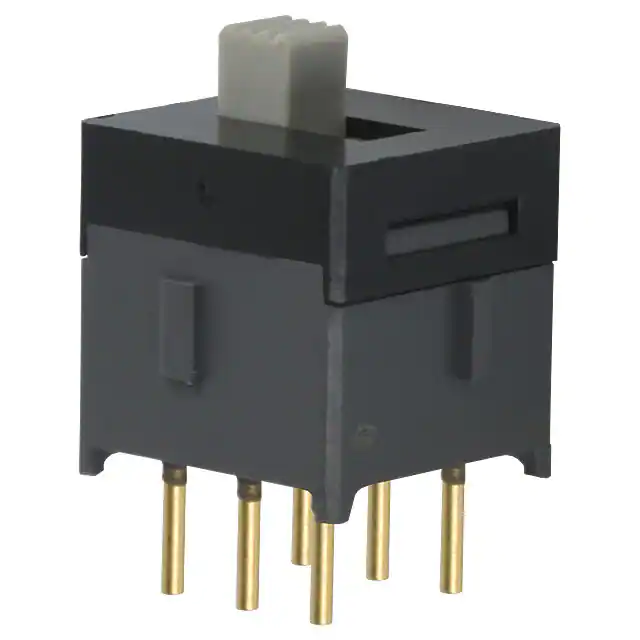

AS23APSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
201 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
AS22ABSWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
162 |
|
Datasheet |
AS | Tray | Active | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 2.50mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Epoxy Sealed Terminals |
