Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS22BSW13SWITCH SLIDE DPDT 6A 125V NKK Switches |
4,110 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
MS22ASW13/CULSWITCH SLIDE DPDT 6A 125V NKK Switches |
3,614 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|

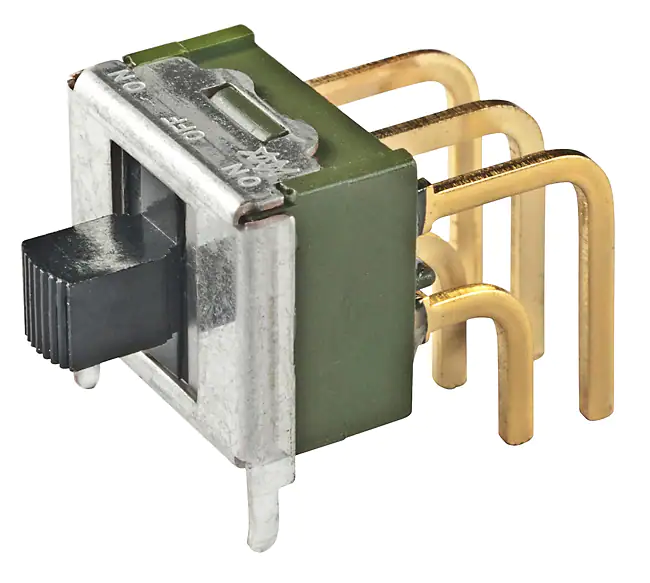

MS23ASG40SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,221 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|
SS12SDH2LCSWITCH SLIDE SPDT 100MA 30V NKK Switches |
3,225 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
SS12SDH2LESWITCH SLIDE SPDT 100MA 30V NKK Switches |
3,973 |
|
Datasheet |
SS | Bulk | Last Time Buy | SPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole, Right Angle | PC Pin | - |
|
SS22SDP2LESWITCH SLIDE DPDT 100MA 30V NKK Switches |
1,283 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS22SDP2LFSWITCH SLIDE DPDT 100MA 30V NKK Switches |
2,474 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|
SS22SDP2LCSWITCH SLIDE DPDT 100MA 30V NKK Switches |
4,453 |
|
Datasheet |
SS | Bulk | Last Time Buy | DPDT | Shorting (MBB) | On-On | 100mA (DC) | - | 30 V | Illuminated | 2.50mm | Phosphor Bronze | Silver | Through Hole | PC Pin | - |
|

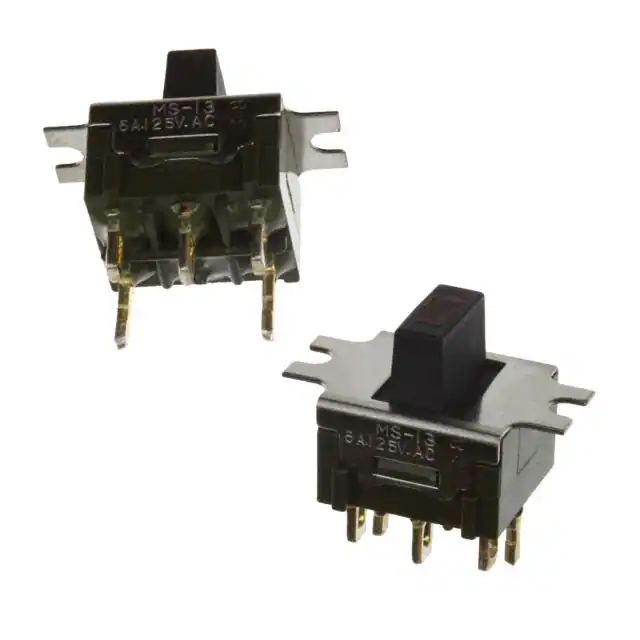

MS13LFW01CSWITCH SLIDE SPDT 6A 125V NKK Switches |
2,775 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
|
MS20AFW01SWITCH SLIDE SP3T 6A 125V NKK Switches |
3,210 |
|
- |
MS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
