Slide Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Contact Timing | Switch Function | Current Rating (Amps) | Voltage Rating - DC | Actuator Type | Actuator Length | Contact Material | Contact Finish | Mounting Type | Termination Style | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

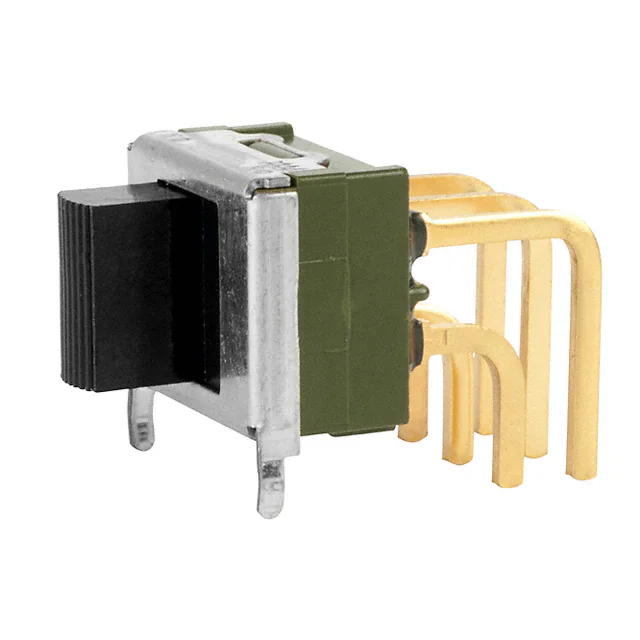

MS22BSG30SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
2,071 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

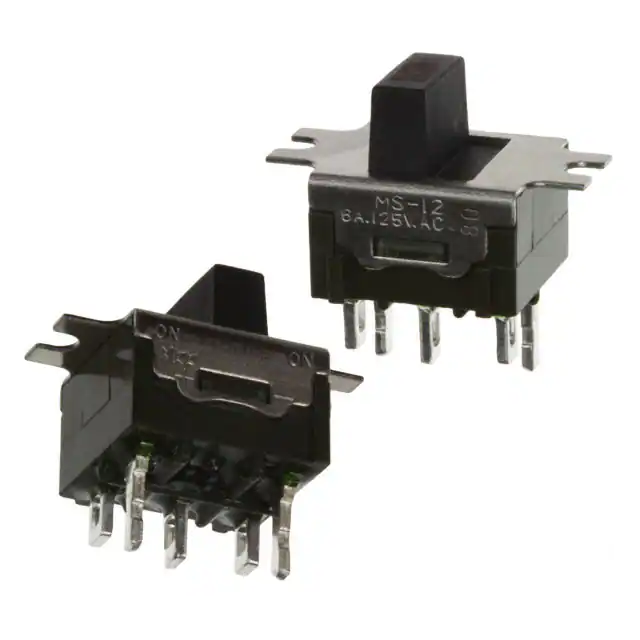

MS12LFW01CSWITCH SLIDE SPDT 6A 125V NKK Switches |
2,729 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
|
MS23AFA01MINIATURE SLIDE NKK Switches |
3,788 |
|
- |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | - |
|

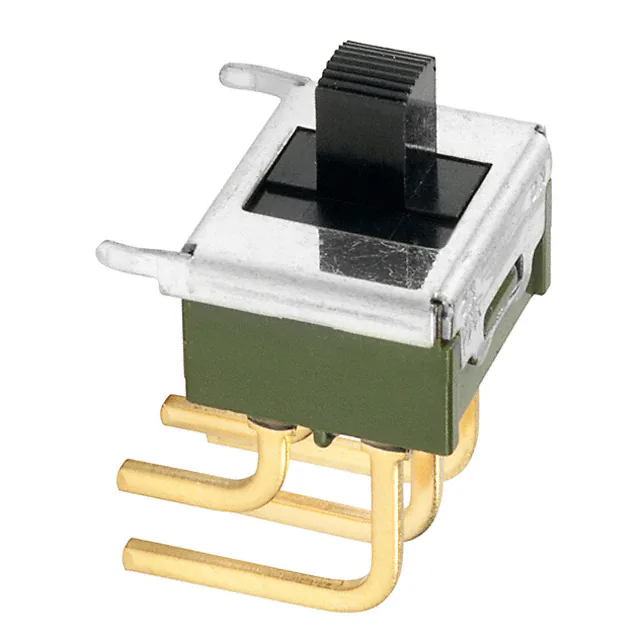

MS22ASG30SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
2,250 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|
|
MS20ASW30SWITCH SLIDE SP3T 6A 125V NKK Switches |
4,107 |
|
Datasheet |
MS | Bulk | Obsolete | SP3T | Non-Shorting (BBM) | On-On-On | 6A (AC) | 125 V | - | Standard | 5.10mm | Silver Alloy | Silver | Through Hole, Right Angle | PC Pin | Jumper needed to achieve triple throw |
|

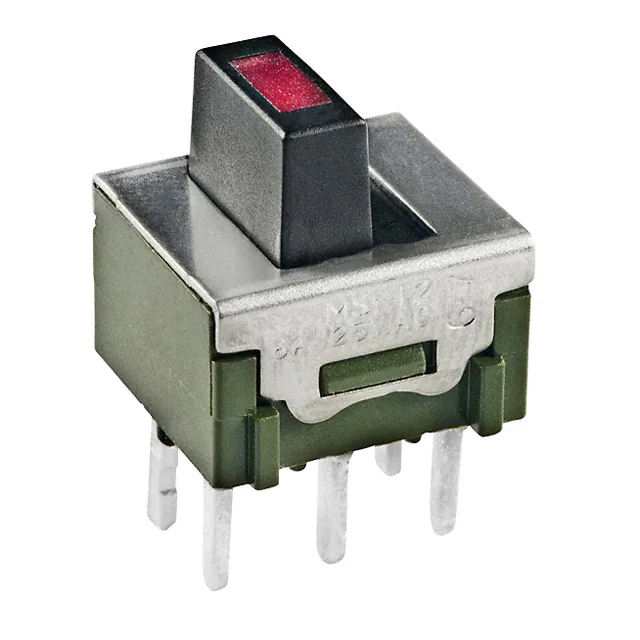

MS12LNW03CSWITCH SLIDE SPDT 6A 125V NKK Switches |
4,637 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Through Hole | PC Pin | Epoxy Sealed Terminals |
|
|
AS24CBSWITCH SLIDE SP3T 0.4VA 28V NKK Switches |
4,785 |
|
Datasheet |
AS | Tray | Active | SP3T | Non-Shorting (BBM) | On-On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 3.80mm | Phosphor Bronze | Gold | Through Hole | PC Pin | Jumper needed to achieve triple throw |
|
|
MS23BSG30SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
3,116 |
|
Datasheet |
MS | Tray | Obsolete | DPDT | Non-Shorting (BBM) | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle | PC Pin | Epoxy Sealed Terminals |
|

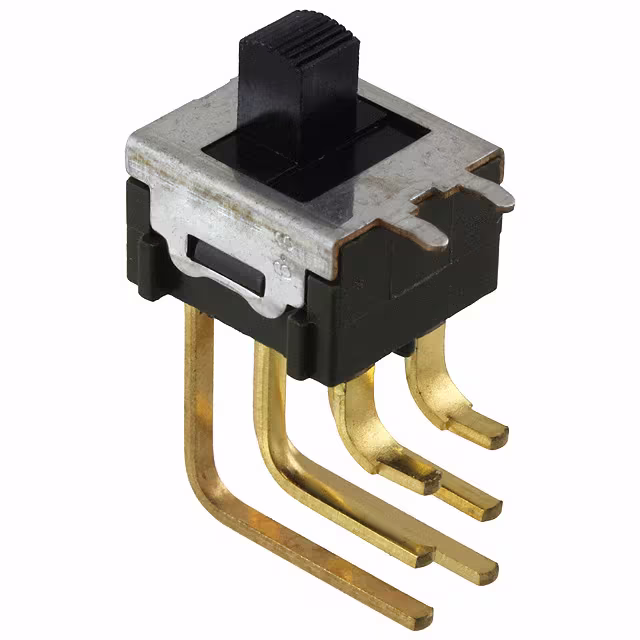

MS22ASG40SWITCH SLIDE DPDT 0.4VA 28V NKK Switches |
2,608 |
|
Datasheet |
MS | Bulk | Obsolete | DPDT | Non-Shorting (BBM) | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard | 5.10mm | Copper | Gold | Through Hole, Right Angle, Vertical | PC Pin | Epoxy Sealed Terminals |
|

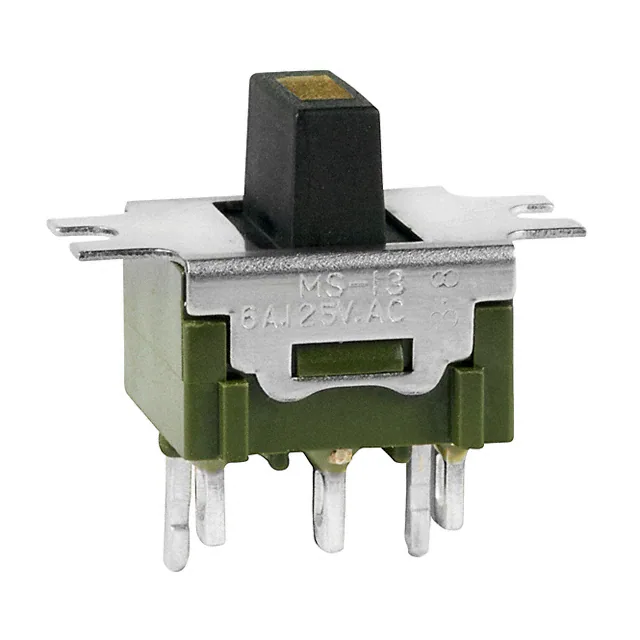

MS13LFW01ESWITCH SLIDE SPDT 6A 125V NKK Switches |
3,189 |
|
Datasheet |
MS | Tray | Obsolete | SPDT | Non-Shorting (BBM) | On-Off-On | 6A (AC) | 125 V | - | Illuminated | 5.10mm | Silver Alloy | Silver | Panel Mount | Solder Lug | Epoxy Sealed Terminals |
