Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P1597NLTXFMR ISOL DC/DC CONV SMD Pulse Electronics |
458 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Isolation | LTC1535 | Linear Technology | - | - | 2000Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.453" L x 0.339" W (11.50mm x 8.60mm) | 0.354" (9.00mm) | 0.453" L x 0.512" W (11.50mm x 13.00mm) | - |
|
PA2369NLXFMR SWITCH MODE 5A Pulse Electronics |
1,968 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | 0.551" L x 0.695" W (14.00mm x 17.65mm) | - |
|
PA3855.006NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
1,130 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
PA0367ANLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
338 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | LT3420 | Linear Technology | - | - | 500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.215" (5.45mm) | 0.460" L x 0.460" W (11.68mm x 11.68mm) | - |
|
PH0416NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
3,834 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 5000Vrms | - | 75kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.502" (12.75mm) | 0.394" L x 0.394" W (10.00mm x 10.00mm) | - |
|
PA0648NLXFMR SMD Pulse Electronics |
1,225 |
|
Datasheet |
- | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.355" L x 0.340" W (9.02mm x 8.64mm) | 0.300" (7.62mm) | - | - |
|
PA3964.002NLXFMR PUSH PULL 7W Pulse Electronics |
1,565 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.291" (7.40mm) | 0.614" L x 0.650" W (15.60mm x 16.50mm) | - |
|
P1597NLXFMR ISOL DC/DC CONV SMD Pulse Electronics |
843 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Isolation | LTC1535 | Linear Technology | - | - | 2000Vrms | - | - | -40°C ~ 125°C | - | - | Surface Mount | 0.453" L x 0.339" W (11.50mm x 8.60mm) | 0.354" (9.00mm) | 0.453" L x 0.512" W (11.50mm x 13.00mm) | - |
|
|
PA3855.003NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
2,006 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

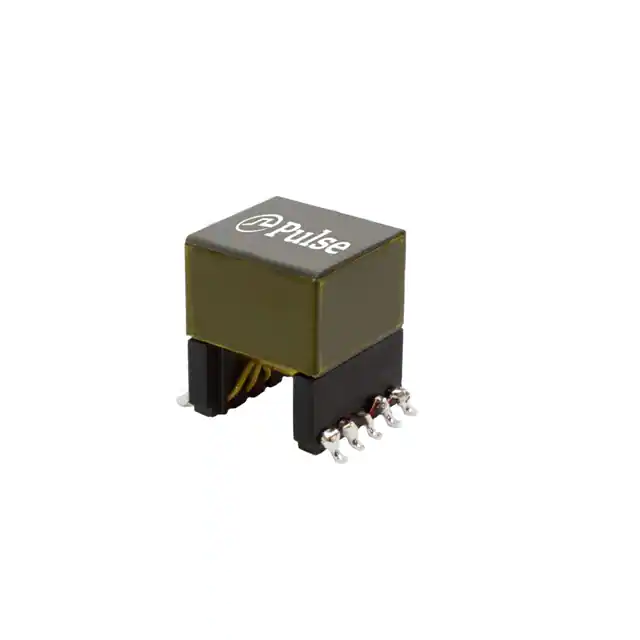

PA5112.003NLTXFMR FLYBACK DC/DC CONV 155UH SM Pulse Electronics |
665 |
|
Datasheet |
PA5112.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 155µH @ 140kHz | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
