Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PA3855.004NLTXFMR FLYBACK DC/DC CONV 21UH SMD Pulse Electronics |
247 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
.00xNL-Series.jpg)
|
PA3856.005NLXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
302 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.003NLTXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
672 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3856.006NLXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
174 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
PH9496NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
875 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.492" (12.50mm) | - | - |
|
PH9363NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
472 |
|
Datasheet |
- | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | ACPL-32JT, ACPL-302J | - | 8 ~ 18V | - | 2500Vrms | - | 80kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.472" L x 0.366" W (12.00mm x 9.30mm) | 0.266" (6.75mm) | 0.472" L x 0.512" W (12.00mm x 13.00mm) | - |
|
PAT6261.006NLTXFMR FLYBACK 3UH SMD Pulse Electronics |
133 |
|
Datasheet |
PAT6261.XXXNL | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 9 ~ 57V | 12.5V @ 50mA | 1500Vrms | 3µH @ 100kHz | 250kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.650" L x 0.650" W (16.50mm x 16.50mm) | 0.413" (10.50mm) | 0.650" L x 0.875" W (16.50mm x 22.23mm) | Wirewound |
|
PH0801CNLXFMR DC/DC CONV SMD Pulse Electronics |
752 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.368" (9.35mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
|

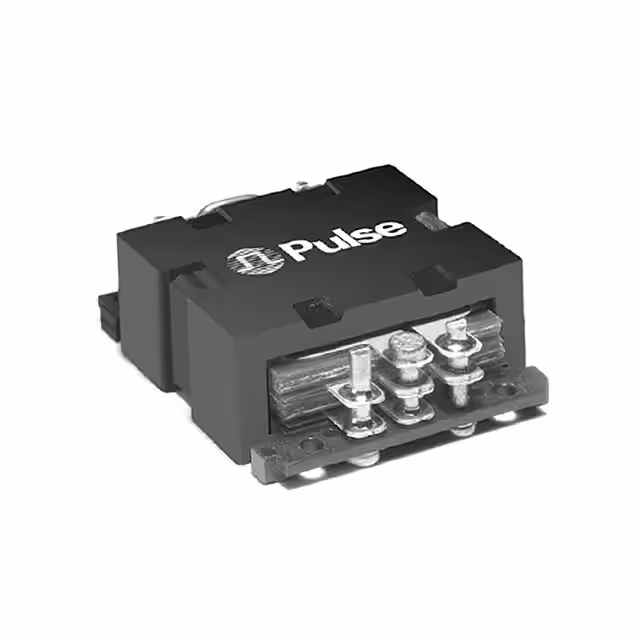

PA0803NLXFMR DC/DC CONV SMD Pulse Electronics |
115 |
|
Datasheet |
PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
|

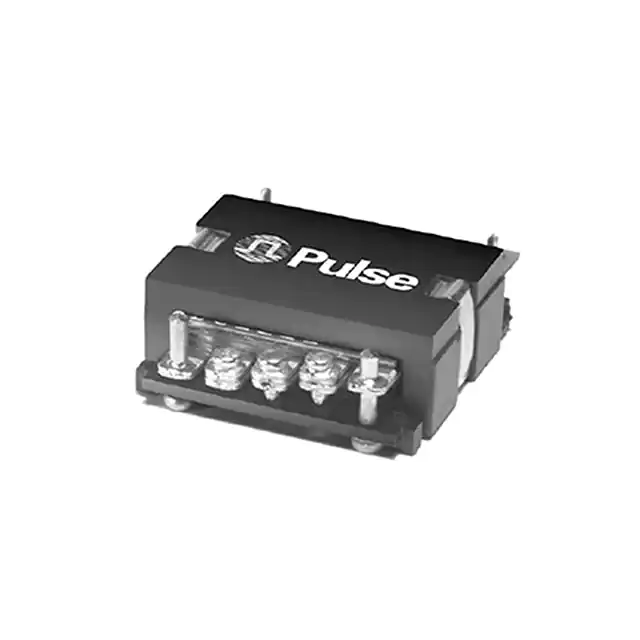

PA0806NLXFMR DC/DC CONV SMD Pulse Electronics |
862 |
|
Datasheet |
PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
