Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PE-68422NLXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
133 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.970" L x 1.070" W (24.64mm x 27.18mm) | 0.680" (17.27mm) | 0.970" L x 1.070" W (24.64mm x 27.18mm) | - |
|
|
PA0905NLXFMR SMD Pulse Electronics |
119 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|

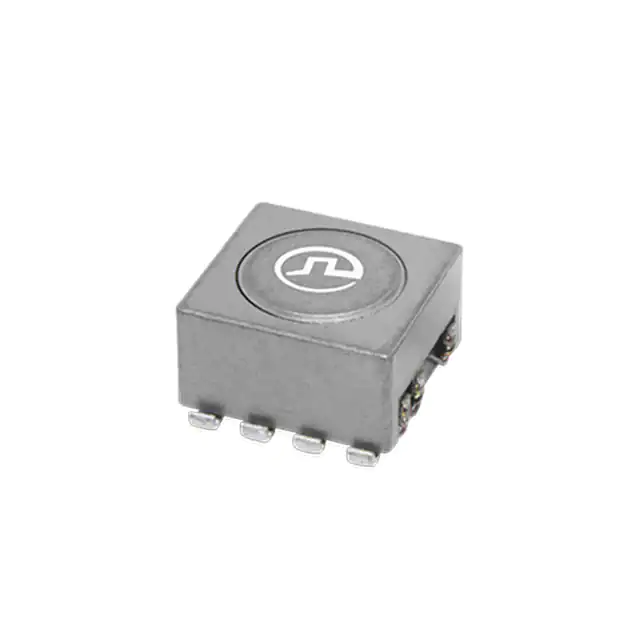

PH9585.003NLTXFMR FLYBACK SMD Pulse Electronics |
4,764 |
|
Datasheet |
PH9585.XXXNLT | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 36 ~ 72V | 15V | 2250V | - | 430kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.250" L x 0.242" W (6.35mm x 6.15mm) | 0.142" (3.60mm) | 0.252" L x 0.244" W (6.40mm x 6.20mm) | Wirewound |
|
PA3855.005NLTXFMR FLYBACK DC/DC CONV 21UH SMD Pulse Electronics |
1,950 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3855.002NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
1,727 |
|
Datasheet |
EP13Plus | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.526" W (14.50mm x 13.36mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
.00xNL-Series.jpg)
|
PA3856.004NLXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
772 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|
|
PA3965.001NLTXFMR FLYBACK 7W Pulse Electronics |
999 |
|
Datasheet |
PA3965.XXXNLT | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.657" L x 0.500" W (16.70mm x 12.70mm) | 0.557" (14.15mm) | 0.657" L x 0.650" W (16.70mm x 16.50mm) | - |
|
PA3964.001NLXFMR AC FORWARD 7W Pulse Electronics |
735 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | 0.614" L x 0.591" W (15.60mm x 15.00mm) | 0.291" (7.40mm) | 0.614" L x 0.650" W (15.60mm x 16.50mm) | - |
|
PA5099.006NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
975 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
|
PA5099.005NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
264 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
