Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

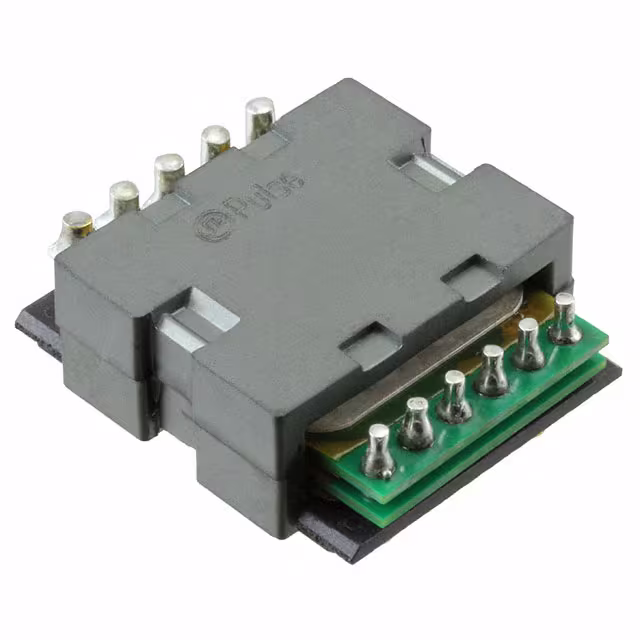

PA0907NLXFMR SMD Pulse Electronics |
1,760 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|
PA5130.004NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
4,520 |
|
Datasheet |
PA5130XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5130.005NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
4,277 |
|
Datasheet |
PA5130XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
PA5180NLXFMR DC/DC CONV 4UH SMD Pulse Electronics |
4,349 |
|
Datasheet |
PA5180NL | Tray | Active | For DC/DC Converters | - | - | - | 2 ~ 8V | - | 1500Vrms | 4µH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.451" (11.45mm) | 0.600" L x 0.516" W (15.24mm x 13.10mm) | Wirewound |
|
|
PA5178NLXFMR DC/DC CONV 4UH SMD Pulse Electronics |
1,420 |
|
Datasheet |
PA5178NL | Tray | Active | For DC/DC Converters | - | - | - | 2 ~ 8V | - | 1500Vrms | 4µH | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | - | 0.451" (11.45mm) | 0.600" L x 0.516" W (15.24mm x 13.10mm) | Wirewound |
|
|
PA5131.005NLTXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
1,956 |
|
Datasheet |
PA5131XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5131.006NLTXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
4,265 |
|
Datasheet |
PA5131XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 9 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.610" L x 0.512" W (15.50mm x 13.00mm) | 0.610" (15.50mm) | 0.610" L x 0.512" W (15.50mm x 13.00mm) | Wirewound |
|
|
PA5100.003NLTXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
1,565 |
|
Datasheet |
PA5100XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | - | 2250V | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PA5000.002NLTXFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics |
1,652 |
|
Datasheet |
PA5000.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|
|
PA5000.001NLTXFMR FWD P-P DC/DC CONV 100UH SM Pulse Electronics |
4,948 |
|
Datasheet |
PA5000.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 75V | - | 3000Vrms | 100µH @ 200kHz | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
