Switching Converter, SMPS Transformers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Applications | Intended Chipset | Chipset Manufacturer | Voltage - Primary | Voltage - Auxiliary | Voltage - Isolation | Inductance @ Frequency | Frequency | Operating Temperature | Grade | Qualification | Mounting Type | Size / Dimension | Height - Seated (Max) | Footprint | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.00xNL-Series.jpg)
|
PA3856.003NLXFMR FWD P-P DC/DC CONV SMD Pulse Electronics |
4,041 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Forward, Push-Pull Converters | - | - | 33 ~ 57V | 10V @ 50mA | 2250VDC | - | 200kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.571" L x 0.695" W (14.50mm x 17.65mm) | 0.551" (14.00mm) | 0.571" L x 0.695" W (14.50mm x 17.65mm) | - |
|

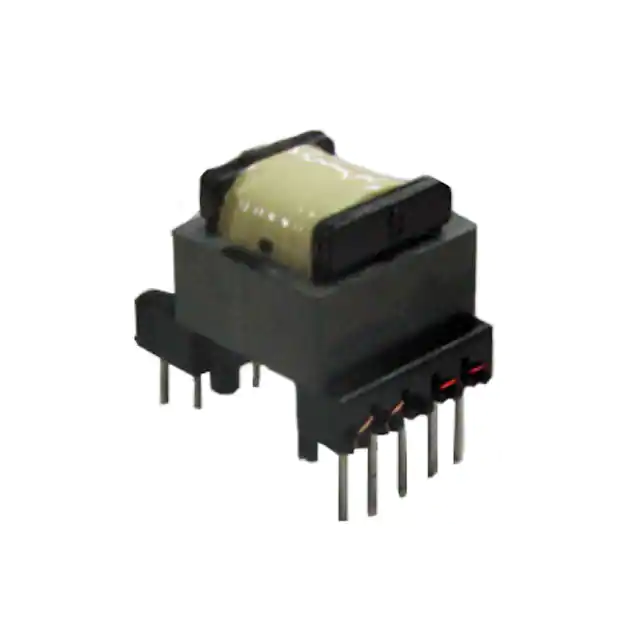

PA2718NLXFMR FLYBACK CONFIG DC/DC TH Pulse Electronics |
4,229 |
|
Datasheet |
- | Tray | Active | Configurable (For DC/DC) | Flyback Converters | - | - | 85 ~ 256V | - | 3000Vrms | - | 132kHz | -40°C ~ 130°C | - | - | Through Hole | 0.531" L x 0.768" W (13.50mm x 19.50mm) | 0.591" (15.00mm) | 0.531" L x 0.768" W (13.50mm x 19.50mm) | - |
|

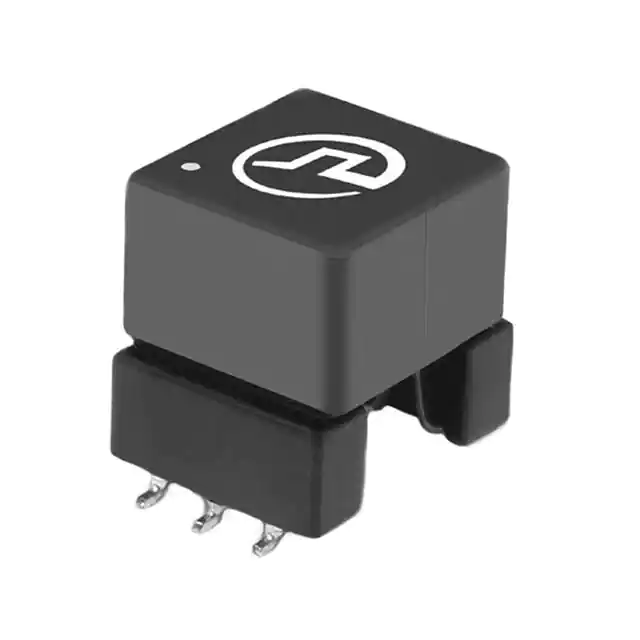

PM9595NLTXFMR FLYBACK DC/DC CONV 13UH SMD Pulse Electronics |
1,713 |
|
Datasheet |
PM9595.XXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 12V | - | 4300VDC | 13µH | 350kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.539" (13.70mm) | 0.512" L x 0.394" W (13.01mm x 10.00mm) | Wirewound |
|
PA5112.002NLTXFMR FLYBACK DC/DC CONV 160UH SM Pulse Electronics |
1,179 |
|
Datasheet |
PA5112.XXXNL | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 85 ~ 265V | - | 3000Vrms | 160µH @ 140kHz | 140kHz | -40°C ~ 130°C | - | - | Surface Mount | 0.531" L x 0.520" W (13.50mm x 13.20mm) | 0.650" (16.50mm) | 0.689" L x 0.531" W (17.50mm x 13.50mm) | Wirewound |
|

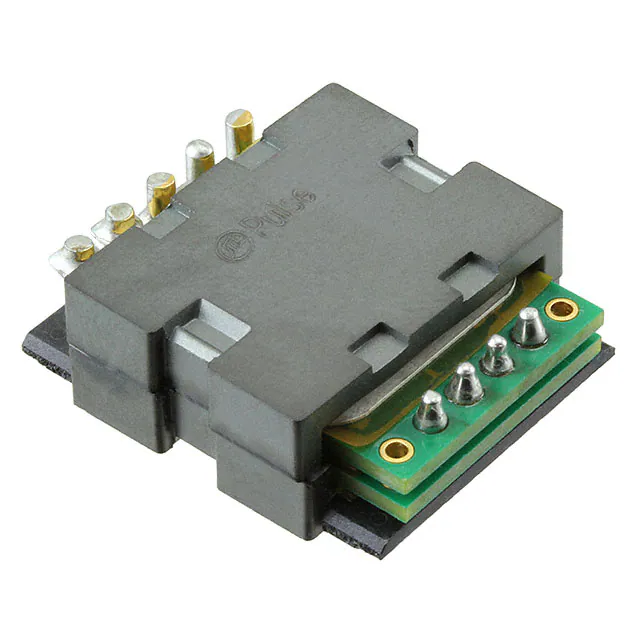

PA0909NLXFMR SMD Pulse Electronics |
3,646 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 1.160" L x 1.000" W (29.46mm x 25.40mm) | 0.402" (10.20mm) | 1.000" L x 1.160" W (25.40mm x 29.46mm) | - |
|
PA5099.004NLTXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
100 |
|
Datasheet |
PA5099.XXXNLT | Tape & Reel (TR) | Active | For DC/DC Converters | Flyback Converters | - | - | 9 ~ 57V | - | 2250VDC | - | 200kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.535" L x 0.433" W (13.60mm x 11.00mm) | 0.610" (15.50mm) | 0.535" L x 0.433" W (13.60mm x 11.00mm) | Wirewound |
|
PG1895NLTXFMR FLYBACK 48UH SMD Pulse Electronics |
2,709 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | Flyback Converters | - | - | 12 ~ 36V | 23V @ 30mA | 2420V | 48µH @ 100kHz | 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 1.004" L x 1.063" W (25.50mm x 27.00mm) | 0.472" (12.00mm) | 1.157" L x 1.004" W (29.40mm x 25.50mm) | Wirewound |
|

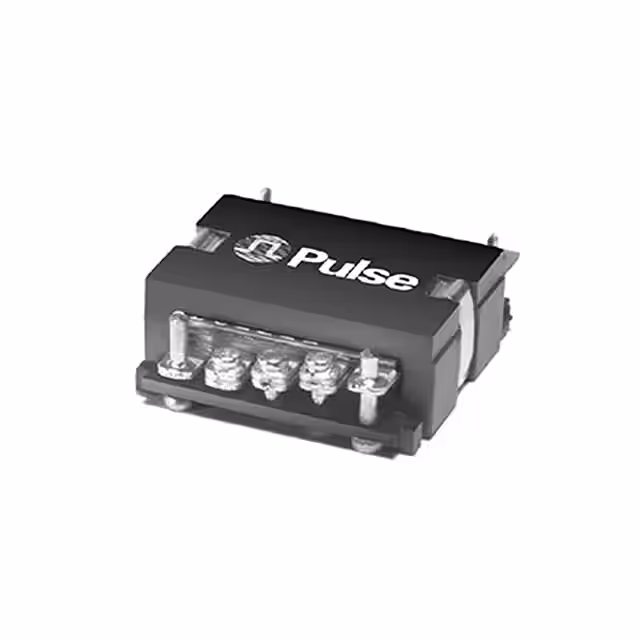

PA0808NLXFMR DC/DC CONV SMD Pulse Electronics |
1,524 |
|
Datasheet |
PA08XXNL | Tray | Active | For DC/DC Converters | - | - | - | 18 ~ 76V | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.920" W (21.60mm x 23.37mm) | 0.348" (8.85mm) | 0.850" L x 0.920" W (21.60mm x 23.37mm) | Planar |
|
PH0810CNLXFMR DC/DC CONV SMD Pulse Electronics |
2,568 |
|
Datasheet |
PH08XXCNL | Tray | Active | For DC/DC Converters | - | - | - | - | - | 1500Vrms | - | 200 ~ 700kHz | -40°C ~ 125°C | - | - | Surface Mount | 0.850" L x 0.970" W (21.59mm x 24.65mm) | 0.388" (9.85mm) | 0.850" L x 0.970" W (21.59mm x 24.65mm) | Planar |
.jpg)
|
PE-68414NLXFMR FLYBACK DC/DC CONV SMD Pulse Electronics |
2,717 |
|
Datasheet |
- | Tray | Active | For DC/DC Converters | Flyback Converters | LM2585, LM2586, LM2587, LM2588 | National Semiconductor | 18 ~ 36V | - | 1500Vrms | - | - | -40°C ~ 130°C | - | - | Surface Mount | 0.920" L x 1.040" W (23.37mm x 26.42mm) | 0.480" (12.19mm) | 0.920" L x 1.040" W (23.37mm x 26.42mm) | - |
