Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15HKP-2BSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
243 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

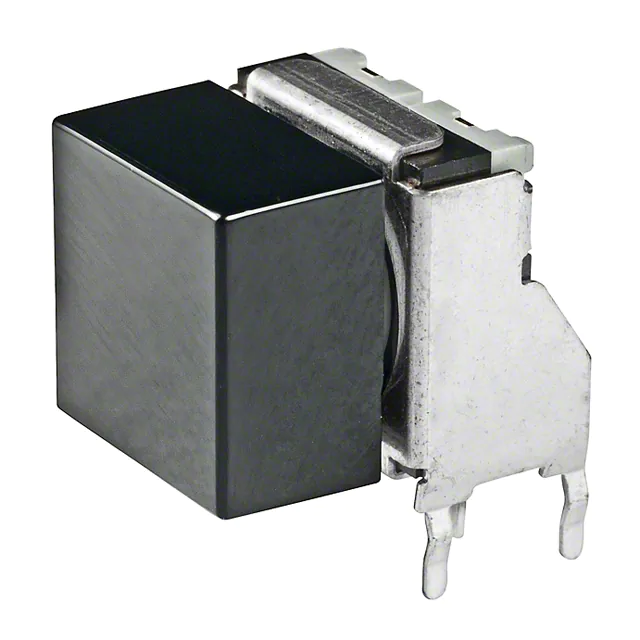

JB15HKH-6ASWITCH TACT SPST-NO 0.125A 24V NKK Switches |
202 |
|
Datasheet |
JB | Box | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole, Right Angle | - | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15LPE-JBSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
346 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HBPFSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
396 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

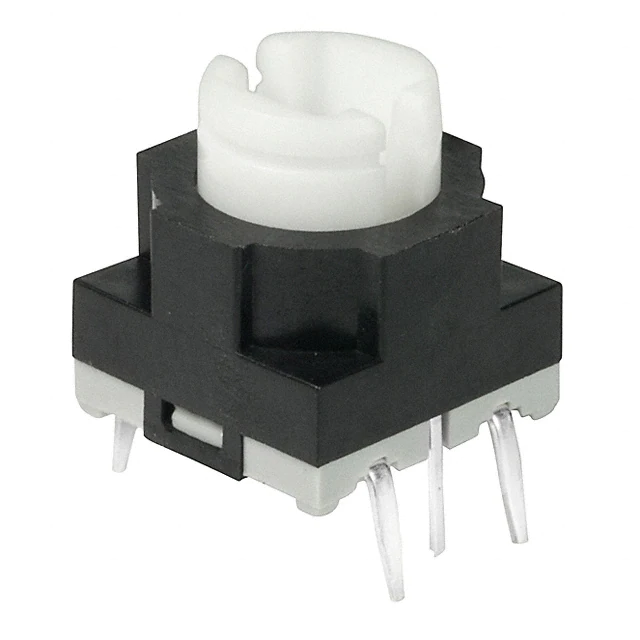

JB15HBPESWITCH TACT SPST-NO 0.125A 24V NKK Switches |
122 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Yellow | 2 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

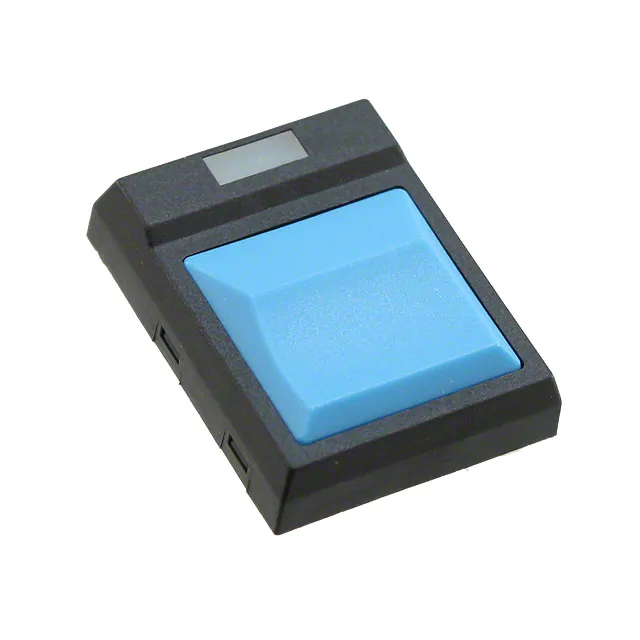

JF15RP3GFSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
135 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Green | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|

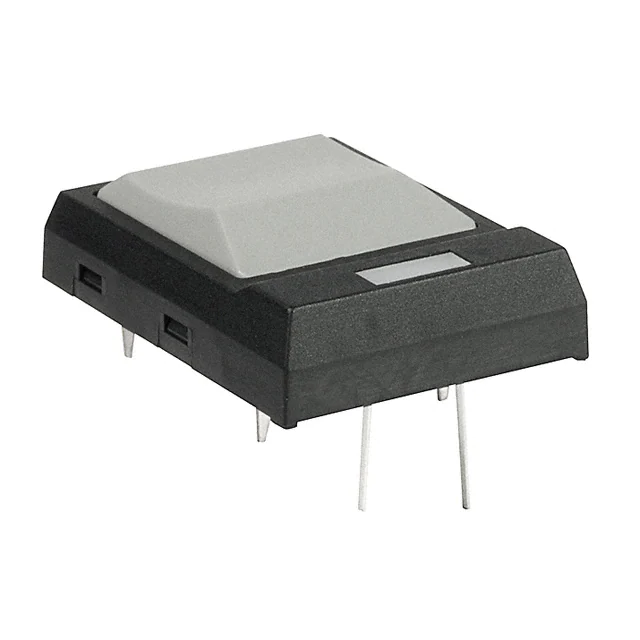

JF15RP3HCSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,720 |
|
Datasheet |
JF | Box | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 6.78mm | - | Top Actuated | PC Pin | 22.80mm x 17.70mm | Illuminated | LED, Red | 2 VDC | 200gf | - | Process Sealed | -25°C ~ 70°C |
|
JB15HBPF-JBSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
1,237 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 14.70mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15HLPF-JBSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
3,491 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
|
JB15HLPF-JFSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
4,767 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Green | 2.1 VDC | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
