Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

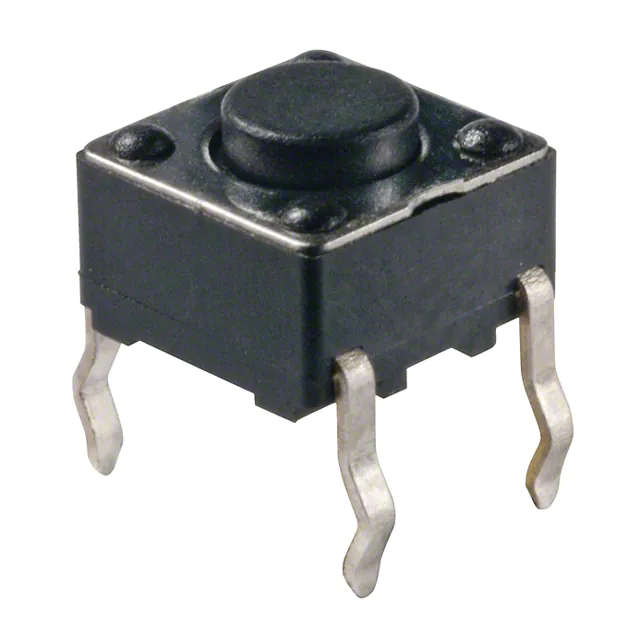

HP0215AFKP2SWITCH TACTILE SPST-NO 3VA 28V NKK Switches |
652 |
|
Datasheet |
HP02 | Box | Active | SPST-NO | Off-Mom | 3VA @ 28VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|

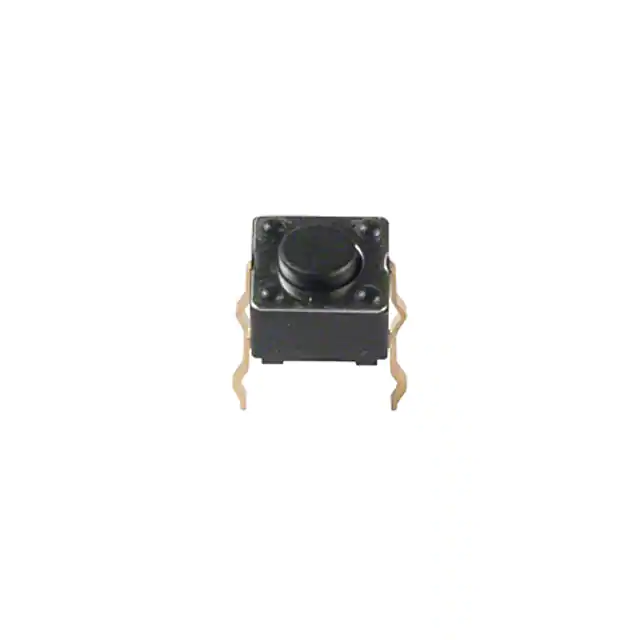

HP0215AFKP2-SSWITCH TACTILE SPST-NO 3VA 28V NKK Switches |
271 |
|
Datasheet |
HP02 | Tube | Active | SPST-NO | Off-Mom | 3VA @ 28VDC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
CB15FP-SSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,960 |
|
Datasheet |
CB | Tube | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 3.10mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 157gf | - | Sealed - Fully | -25°C ~ 70°C |
|

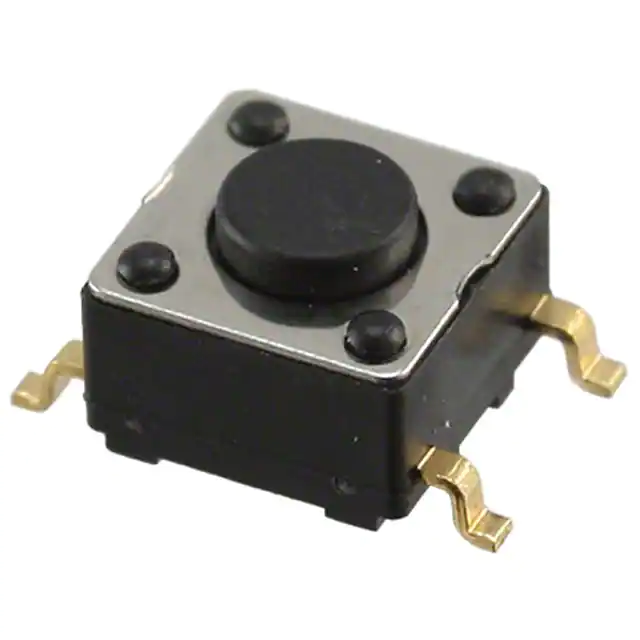

HP0315AFKP4-RSWITCH TACTILE SPST-NO 0.4VA 28V NKK Switches |
988 |
|
Datasheet |
HP03 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Standard | Surface Mount | 4.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|

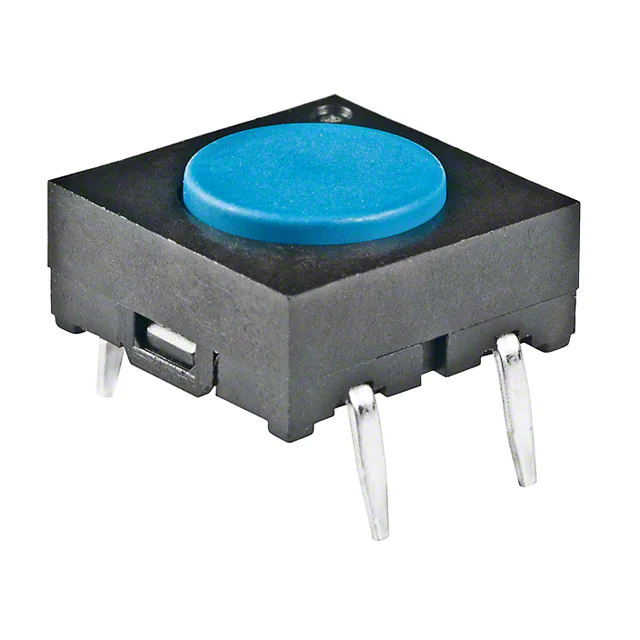

JB15FPSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
4,720 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 4.90mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15KPSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
1,882 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

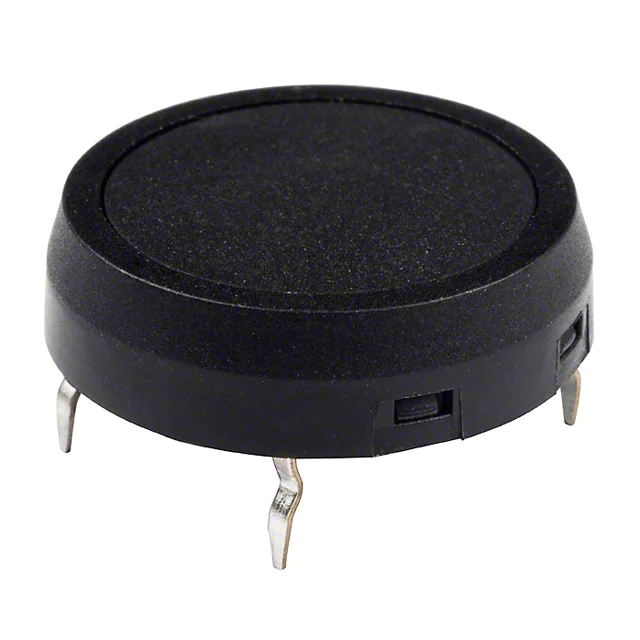

JF15CP2ASWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
7,690 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm Dia | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
JB15HAPSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
6,527 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Plunger for Cap | Through Hole | - | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

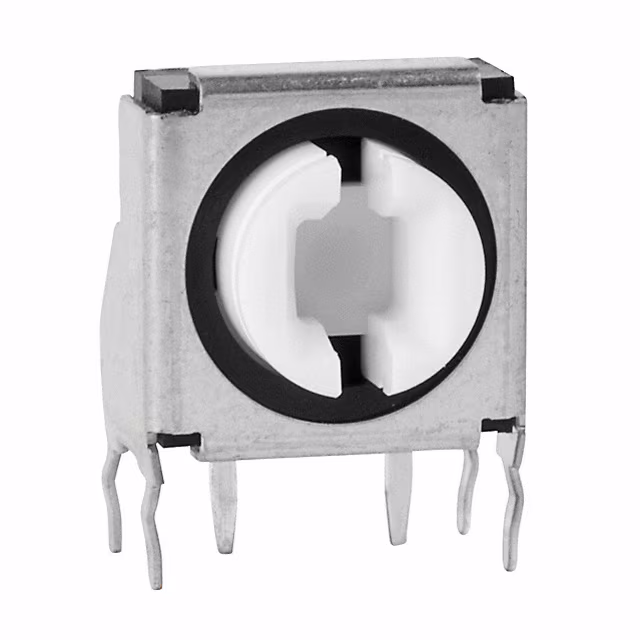

JB15KHSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
260 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Plunger for Cap | Through Hole, Right Angle | - | - | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

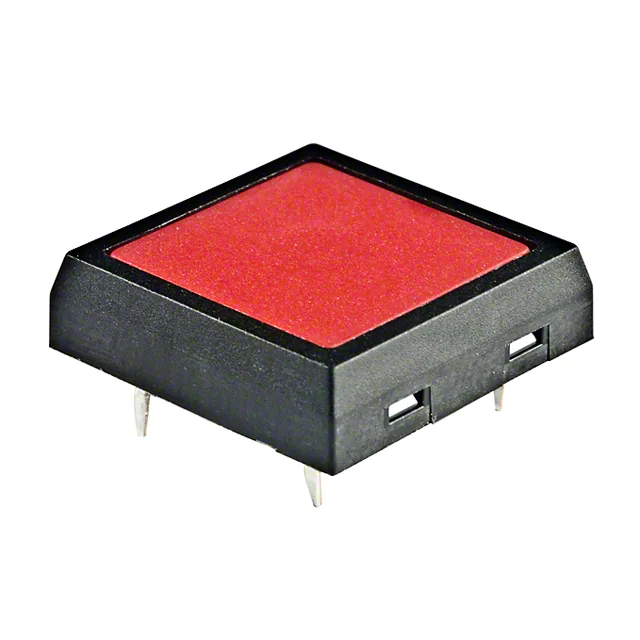

JF15SP1CSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
7,827 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
