Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JB15KP-2ASWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
1,078 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

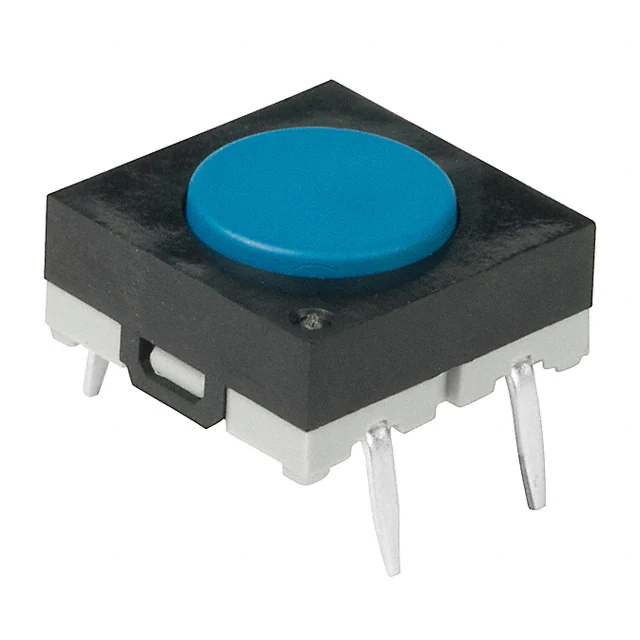

JB15HFPSWITCH TACT SPST-NO 0.125A 24V NKK Switches |
2,513 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.125A @ 24VDC | Round Button | Through Hole | 4.90mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 265gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15KH-6ASWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
8,168 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole, Right Angle | - | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
JB15KH-6HSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
568 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole, Right Angle | - | 7.76mm | Side Actuated | PC Pin | 10.80mm x 6.54mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

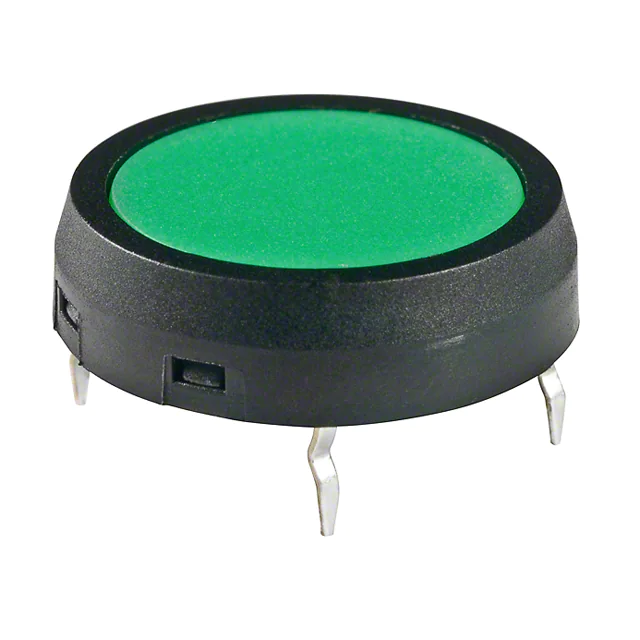

JF15CP2FSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
3,152 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm Dia | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

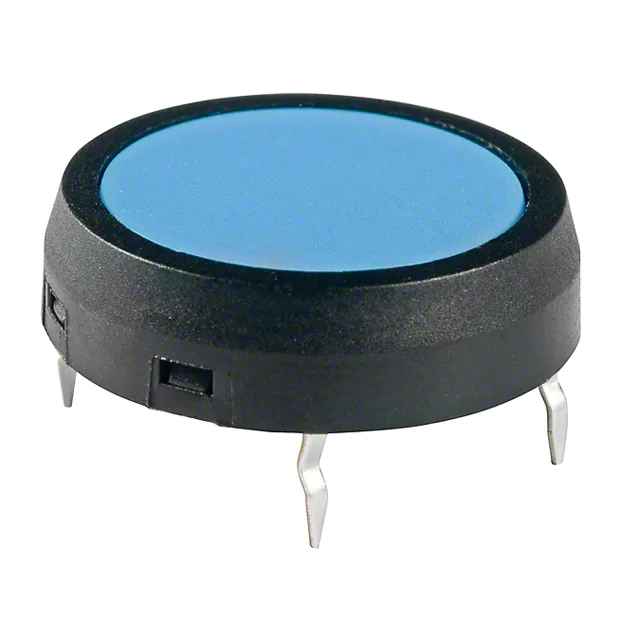

JF15CP2GSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
547 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm Dia | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

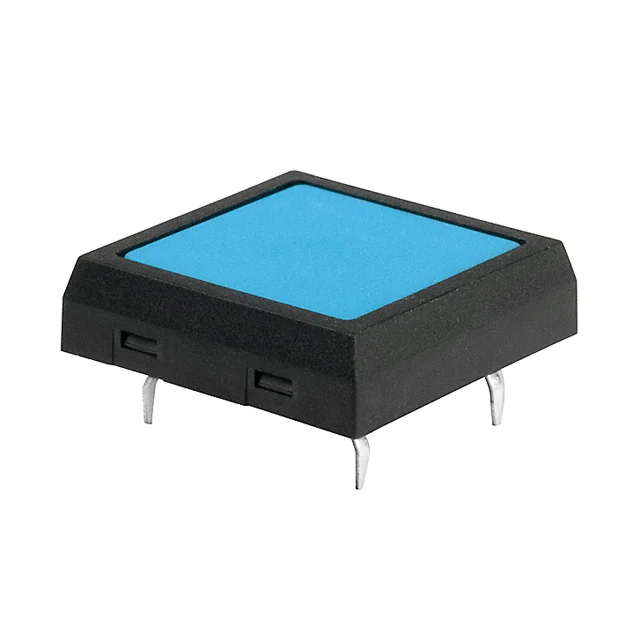

JF15SP1GSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
131 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

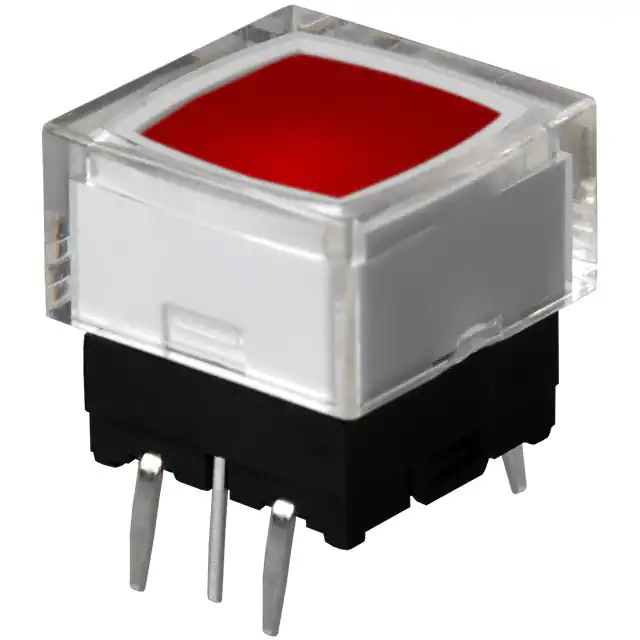

JB15LPC-JCSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
802 |
|
Datasheet |
JB | Bulk | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Illuminated | LED, Red | 1.8 VDC | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|
HP0315AFKP2SWITCH TACTILE SPST-NO 3VA 28V NKK Switches |
257 |
|
Datasheet |
HP03 | Box | Active | SPST-NO | Off-Mom | 3VA @ 28VDC | Standard | Surface Mount | 4.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
HP0315AFKP2-SSWITCH TACTILE SPST-NO 3VA 28V NKK Switches |
157 |
|
Datasheet |
HP03 | Tube | Active | SPST-NO | Off-Mom | 3VA @ 28VDC | Standard | Surface Mount | 4.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
