Tactile Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Contact Rating @ Voltage | Actuator Type | Mounting Type | Actuator Height off PCB, Vertical | Actuator Length, Right Angle | Actuator Orientation | Termination Style | Outline | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Operating Force | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

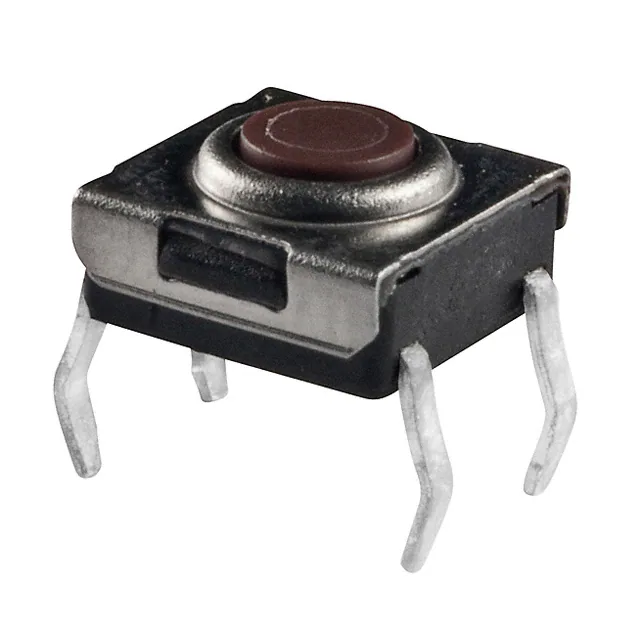

CB15FPSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,489 |
|
Datasheet |
CB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Through Hole | 3.10mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 157gf | - | Sealed - Fully | -25°C ~ 70°C |
|
HP0215AFKP4-SSWITCH TACTILE SPST-NO 0.4VA 28V NKK Switches |
209 |
|
Datasheet |
HP02 | Tube | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
HP0215AFKP4SWITCH TACTILE SPST-NO 0.4VA 28V NKK Switches |
116 |
|
Datasheet |
HP02 | Box | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Standard | Through Hole | 4.30mm | - | Top Actuated | PC Pin | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
HP0315AFKP4-SSWITCH TACTILE SPST-NO 0.4VA 28V NKK Switches |
450 |
|
Datasheet |
HP03 | Tube | Active | SPST-NO | Off-Mom | 0.4VA @ 28VAC/DC | Standard | Surface Mount | 4.40mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 160gf | - | Sealed - Flux Protection | -20°C ~ 70°C |
|
CB315FPSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
5,087 |
|
Datasheet |
CB3 | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Standard | Surface Mount | 3.10mm | - | Top Actuated | Gull Wing | 6.20mm x 6.20mm | Non-Illuminated | - | - | 157gf | - | Sealed - Fully | -25°C ~ 70°C |
|
JB15KP-1HSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
826 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

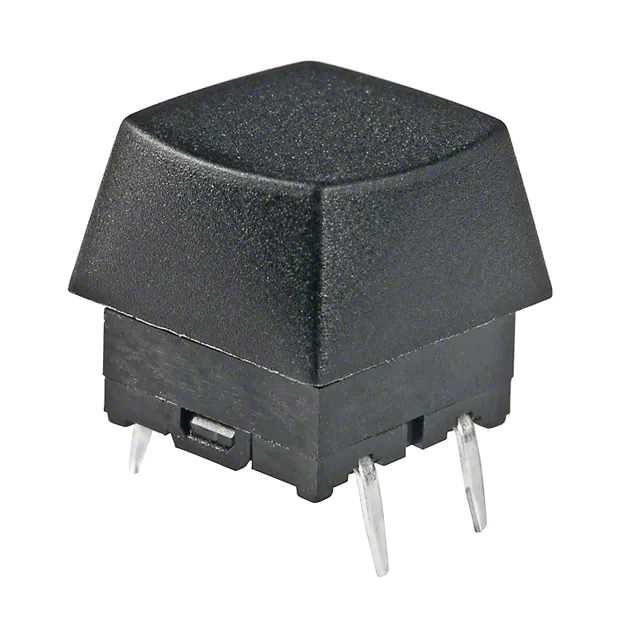

JB15KP-1ASWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
460 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
|

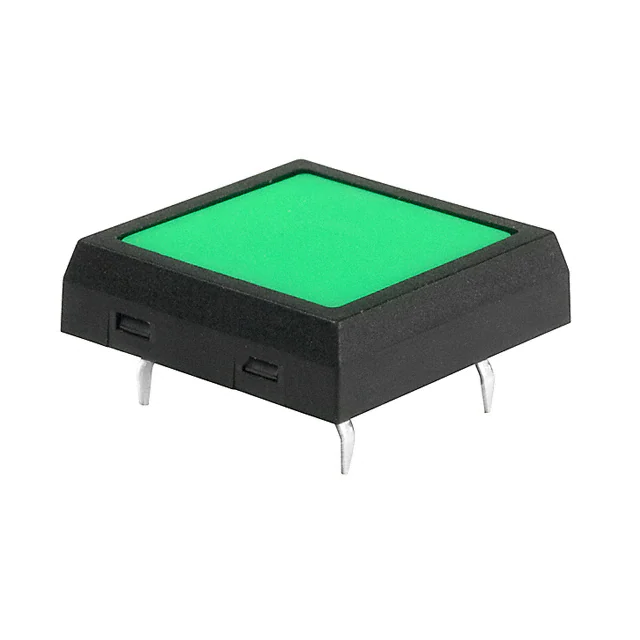

JF15SP1FSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
2,830 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|
JF15SP2HSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
157 |
|
Datasheet |
JF | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Round Button | Through Hole | 5.08mm | - | Top Actuated | PC Pin | 17.70mm x 17.70mm | Non-Illuminated | - | - | 300gf | - | Process Sealed | -25°C ~ 85°C |
|

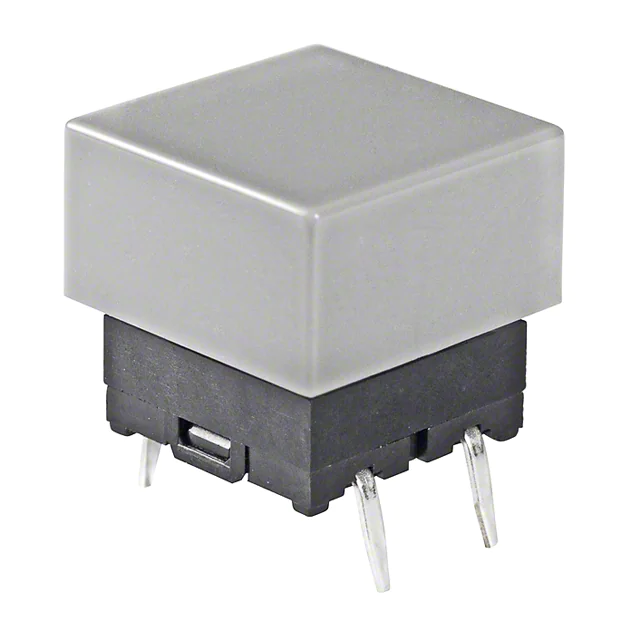

JB15KP-2HSWITCH TACTILE SPST-NO 0.05A 24V NKK Switches |
332 |
|
Datasheet |
JB | Tray | Active | SPST-NO | Off-Mom | 0.05A @ 24VDC | Square Button | Through Hole | 11.20mm | - | Top Actuated | PC Pin | 10.00mm x 10.00mm | Non-Illuminated | - | - | 176gf | IP67 - Dust Tight, Waterproof | Process Sealed | -25°C ~ 70°C |
