Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TCH35PR100JERES 0.1 OHM 5% 35W TO220 Ohmite |
219 |
|
Datasheet |
TCH | Tube | Active | 100 mOhms | ±5% | 35W | Thick Film | Moisture Resistant | ±700ppm/°C | -55°C ~ 175°C | TO-220 | 0.400" L x 0.175" W (10.16mm x 4.44mm) | 0.591" (15.00mm) | 2 | - |
|
90J1K0ERES 1K OHM 5% 11W AXIAL Ohmite |
371 |
|
Datasheet |
90 | Bulk | Active | 1 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
90J1K5ERES 1.5K OHM 5% 11W AXIAL Ohmite |
214 |
|
Datasheet |
90 | Bulk | Active | 1.5 kOhms | ±5% | 11W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.343" Dia x 1.811" L (8.70mm x 46.00mm) | - | 2 | - |
|
95J15KERES 15K OHM 5% 5W AXIAL Ohmite |
225 |
|
Datasheet |
90 | Bulk | Active | 15 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
95J10KERES 10K OHM 5% 5W AXIAL Ohmite |
225 |
|
Datasheet |
90 | Bulk | Active | 10 kOhms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
21J120ERES 120 OHM 5% 1W AXIAL Ohmite |
246 |
|
Datasheet |
20 | Bulk | Active | 120 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|
TEH100M1R00JERES 1 OHM 5% 100W TO247 Ohmite |
239 |
|
Datasheet |
TEH100 | Tube | Active | 1 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 250ppm/°C | - | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
TFSF20K0JERES 20K OHM 5% 2W AXIAL Ohmite |
146 |
|
Datasheet |
TFS | Bulk | Active | 20 kOhms | ±5% | 2W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.413" x 0.035" Rectangular x 1.024" L (10.50mm x 0.90mm x 26.00mm) | - | 2 | - |
|

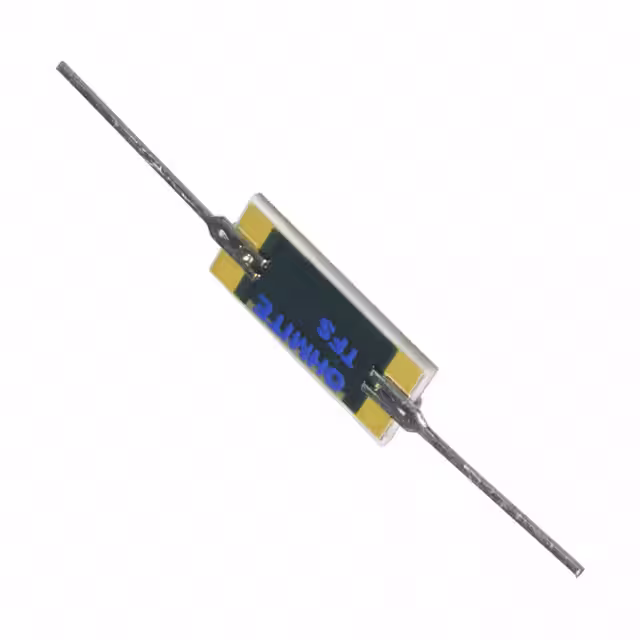

TFSF100KJERES 100K OHM 5% 2W AXIAL Ohmite |
167 |
|
Datasheet |
TFS | Bulk | Active | 100 kOhms | ±5% | 2W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.413" x 0.035" Rectangular x 1.024" L (10.50mm x 0.90mm x 26.00mm) | - | 2 | - |
|
21J500ERES 500 OHM 5% 1W AXIAL Ohmite |
250 |
|
Datasheet |
20 | Bulk | Active | 500 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
