Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

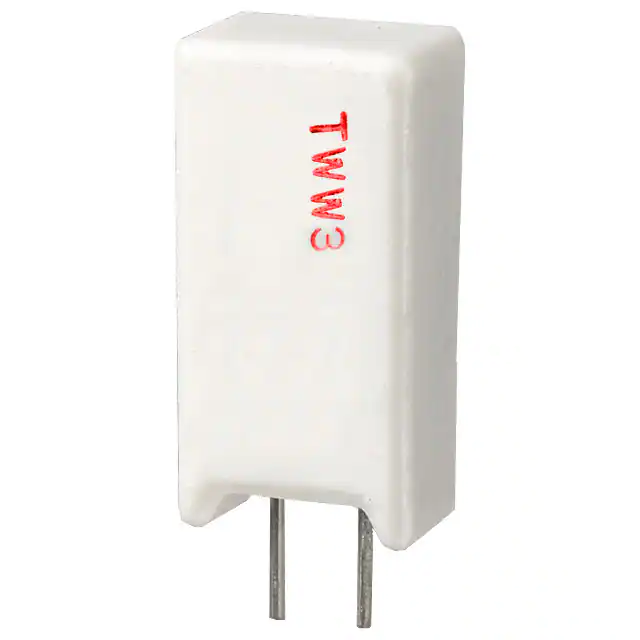

TWW10JR15ERES 0.15 OHM 5% 10W RADIAL Ohmite |
840 |
|
Datasheet |
TWW | Bulk | Active | 150 mOhms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 2.008" (51.00mm) | 2 | - |
|
OD242JERES 2.4K OHM 5% 1/4W AXIAL Ohmite |
398 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 2.4 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
SM102038004FERES 8M OHM 1% 1W RADIAL Ohmite |
151 |
|
Datasheet |
Slim-Mox | Bulk | Active | 8 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

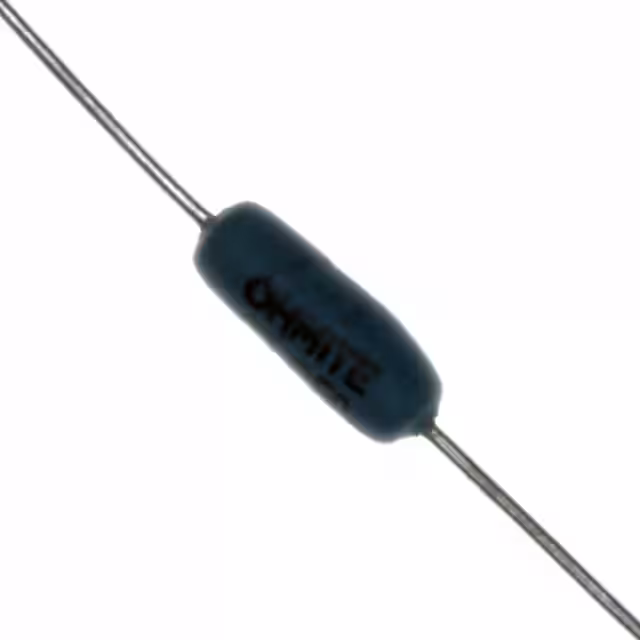

43JR503W 0.5 OHM SILICONE 5% NON ROHS Ohmite |
1,585 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
12FR015E2W 10 SERIES .015 OHM 1% Current Ohmite |
970 |
|
Datasheet |
10 | Bulk | Active | 15 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
|
45JR30ERES 0.3 OHM 5% 5W AXIAL Ohmite |
550 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 300 mOhms | ±5% | 5W | Wirewound | - | ±90ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
OD123KERES 12K OHM 10% 1/4W AXIAL Ohmite |
1,875 |
|
Datasheet |
Little Demon® OD | Bulk | Obsolete | 12 kOhms | ±10% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
20J600ERES 600 OHM 5% 10W AXIAL Ohmite |
200 |
|
Datasheet |
20 | Bulk | Active | 600 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
OF245JERES 2.4M OHM 5% 1/2W AXIAL Ohmite |
1,097 |
|
Datasheet |
Little Demon® OF | Strip | Active | 2.4 MOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
45F2R0RES 2 OHM 1% 5W AXIAL Ohmite |
3,774 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 2 Ohms | ±1% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
