Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX300002006JERES 200M OHM 5% 1/2W AXIAL Ohmite |
700 |
|
Datasheet |
Mini-Mox | Bulk | Active | 200 MOhms | ±5% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 200ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|
OF181JERES 180 OHM 5% 1/2W AXIAL Ohmite |
516 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 180 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
43J5K0ERES 5K OHM 5% 3W AXIAL Ohmite |
500 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 5 kOhms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
OF27GKERES 2.7 OHM 10% 1/2W AXIAL Ohmite |
4,705 |
|
Datasheet |
Little Demon® OF | Bulk | Obsolete | 2.7 Ohms | ±10% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
SM102035006PRES 500M OHM 20% 1W RADIAL Ohmite |
290 |
|
Datasheet |
Slim-Mox | Bulk | Active | 500 MOhms | ±20% | 1W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

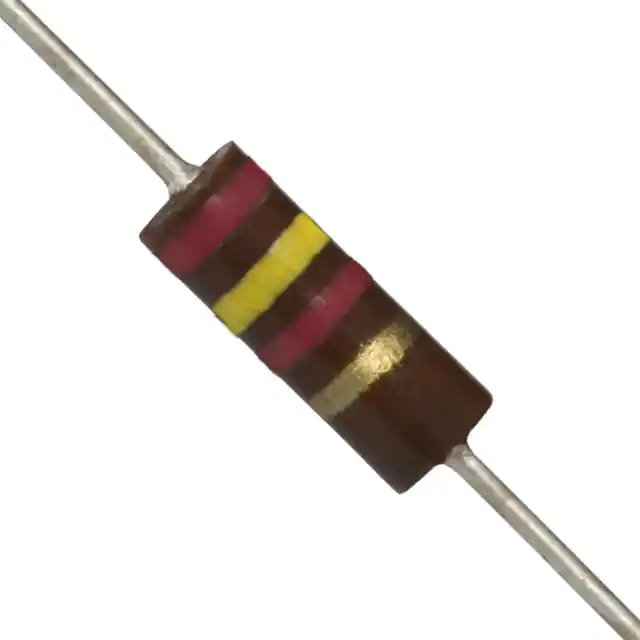

OF242JERES 2.4K OHM 5% 1/2W AXIAL Ohmite |
151 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 2.4 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
OF561KERES 560 OHM 10% 1/2W AXIAL Ohmite |
138 |
|
Datasheet |
Little Demon® OF | Bulk | Obsolete | 560 Ohms | ±10% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
SM102035005F2RES 50M OHM 1% 1W RADIAL Ohmite |
200 |
|
Datasheet |
Slim-Mox | Bulk | Active | 50 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM104032505KRES 25M OHM 1.5W 10% RADIAL Ohmite |
153 |
|
- |
Slim-Mox | Bulk | Active | 25 MOhms | ±10% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
40F2K010W 2K OHMS SILICONE 1% NON ROHS Ohmite |
515 |
|
Datasheet |
40 | Bulk | Active | 2 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
