Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OC1K120E-TRRES 12 OHM 10% 1.2W AXIAL Ohmite |
750 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 12 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|
|
OC1K330E-TRRES 33 OHM 10% 1.2W AXIAL Ohmite |
250 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 33 Ohms | ±10% | 1.2W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.650" L (7.90mm x 16.50mm) | - | 2 | - |
|

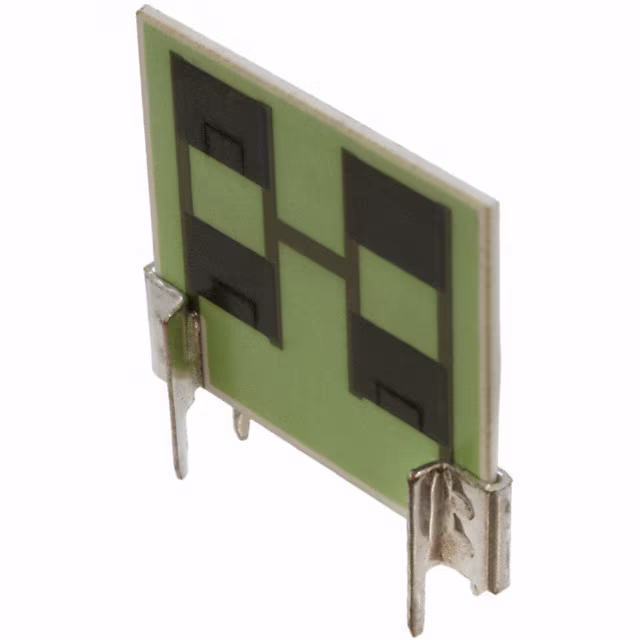

TA810PW3R90JERES 3.9 OHM 5% 10W POWERCHIP Ohmite |
141 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 3.9 Ohms | ±5% | 10W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 1.085" L x 0.240" W (27.56mm x 6.10mm) | 1.020" (25.91mm) | 4 | - |
|

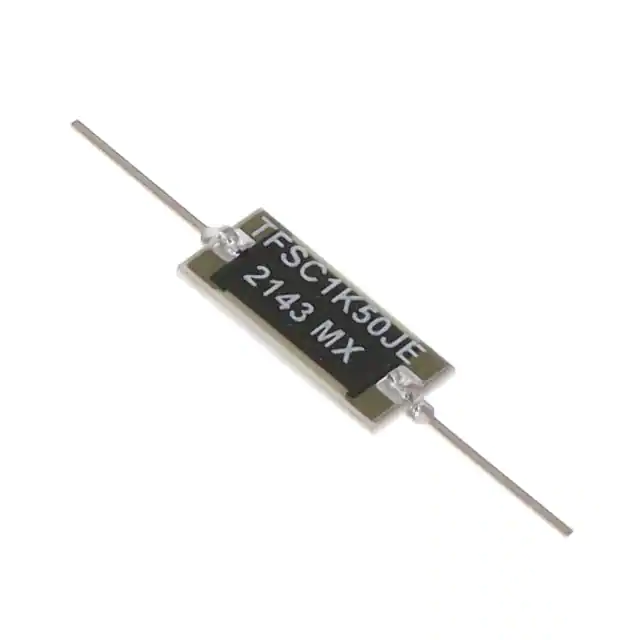

TFSC1K50JERES 1.5K OHM 5% 3/4W AXIAL Ohmite |
1,543 |
|
Datasheet |
TFS | Bulk | Active | 1.5 kOhms | ±5% | 0.75W, 3/4W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.217" x 0.028" Rectangular x 0.512" L (5.50mm x 0.70mm x 13.00mm) | - | 2 | - |
|
21J750ERES 750 OHM 5% 1W AXIAL Ohmite |
1,379 |
|
Datasheet |
20 | Bulk | Active | 750 Ohms | ±5% | 1W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.157" Dia x 0.421" L (4.00mm x 10.70mm) | - | 2 | - |
|
TFSD4K70JERES 4.7K OHM 5% 1W AXIAL Ohmite |
904 |
|
Datasheet |
TFS | Bulk | Active | 4.7 kOhms | ±5% | 1W | Thick Film | Non-Inductive, Pulse Withstanding | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.315" x 0.035" Rectangular x 0.827" L (8.00mm x 0.90mm x 21.00mm) | - | 2 | - |
|
TEH100M2R50JERES 2.5 OHM 5% 100W TO247-2 Ohmite |
238 |
|
Datasheet |
TEH100 | Tube | Active | 2.5 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive, Pulse Withstanding | 250ppm/°C | - | TO-247-2 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.965" (24.51mm) | 2 | - |
|
17FPR075ERES 0.075 OHM 1% 7W AXIAL Ohmite |
1,204 |
|
Datasheet |
10 | Bulk | Active | 75 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
|
17FPR080ERES 0.08 OHM 1% 7W AXIAL Ohmite |
3,615 |
|
Datasheet |
10 | Bulk | Active | 80 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
OC3K391ERES 390 OHM 10% 2.5W AXIAL Ohmite |
997 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
