Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
53J75RE3W 75 OHM SILICONE 5% Ohmite |
475 |
|
Datasheet |
50 | Bulk | Active | 75 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|

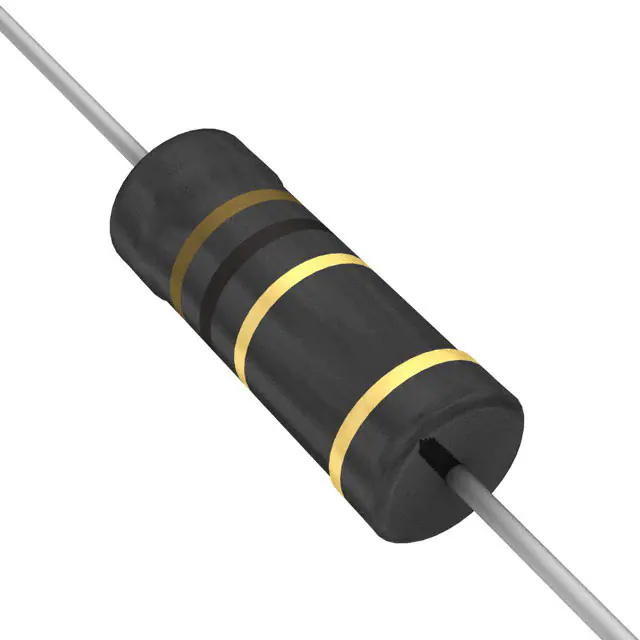

53J1R0E3W 1 OHM SILICONE 5% Ohmite |
584 |
|
Datasheet |
50 | Bulk | Active | 1 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.551" L (5.60mm x 14.00mm) | - | 2 | - |
|
OD273JERES 27K OHM 5% 1/4W AXIAL Ohmite |
400 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 27 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TUW5J27RERES 27 OHM 5% 5W AXIAL Ohmite |
750 |
|
Datasheet |
TUW | Bulk | Active | 27 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
TUM3J2K0ERES 2K OHM 5% 3W AXIAL Ohmite |
500 |
|
Datasheet |
TUM | Bulk | Active | 2 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.315" Square x 0.866" L (8.00mm x 22.00mm) | - | 2 | - |
|
OD822JERES 8.2K OHM 5% 1/4W AXIAL Ohmite |
287 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 8.2 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
TUW5JR56ERES 0.56 OHM 5% 5W AXIAL Ohmite |
754 |
|
Datasheet |
TUW | Bulk | Active | 560 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | 275°C | Axial | 0.866" L x 0.394" W (22.00mm x 10.00mm) | 0.394" (10.00mm) | 2 | - |
|
|
TUW5JR82ERES 0.82 OHM 5% 5W AXIAL Ohmite |
300 |
|
Datasheet |
TUW | Bulk | Active | 820 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
TWM3J8K2ERES 8.2K OHM 5% 3W RADIAL Ohmite |
600 |
|
Datasheet |
TWM | Bulk | Active | 8.2 kOhms | ±5% | 3W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
TWW5JR82ERES 0.82 OHM 5% 5W RADIAL Ohmite |
600 |
|
Datasheet |
TWW | Bulk | Active | 820 mOhms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
