Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWW3J1R5ERES 1.5 OHM 5% 3W RADIAL Ohmite |
115 |
|
Datasheet |
TWW | Bulk | Active | 1.5 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
WLBR100FETRES 0.1 OHM 1% 1W AXIAL Ohmite |
972 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 100 mOhms | ±1% | 1W | Wirewound | Current Sense, Moisture Resistant | ±100ppm/°C | - | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|

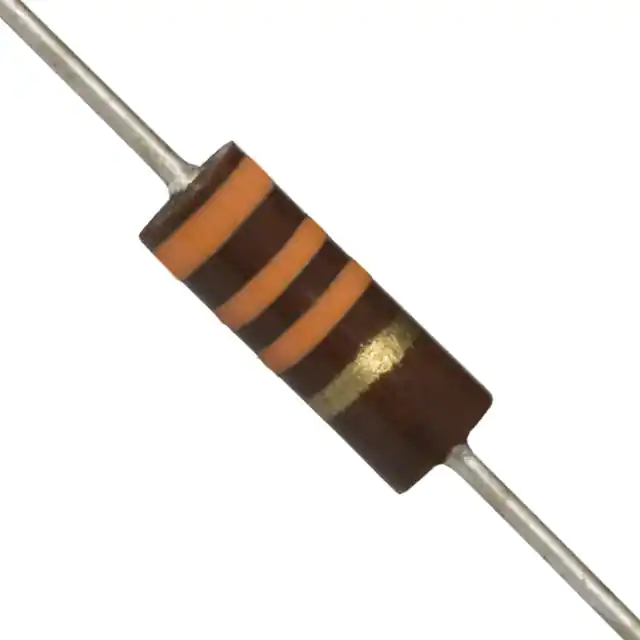

OF333JERES 33K OHM 5% 1/2W AXIAL Ohmite |
397 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 33 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|

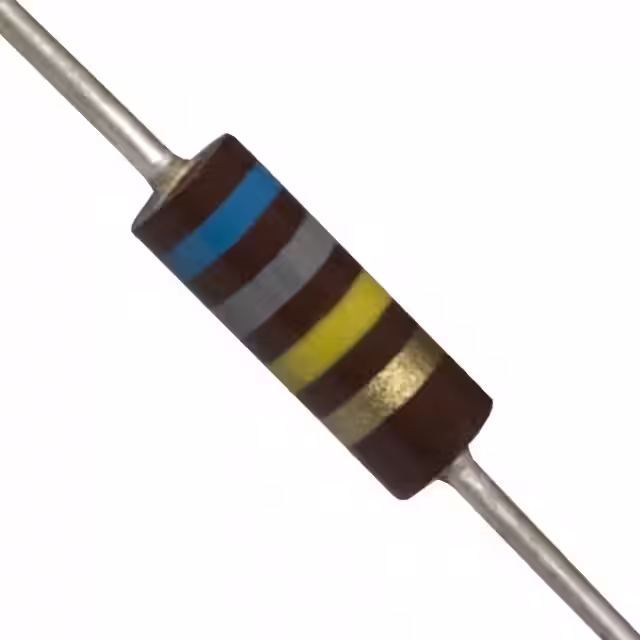

OD684JERES 680K OHM 5% 1/4W AXIAL Ohmite |
890 |
|
Datasheet |
Little Demon® OD | Strip | Obsolete | 680 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|

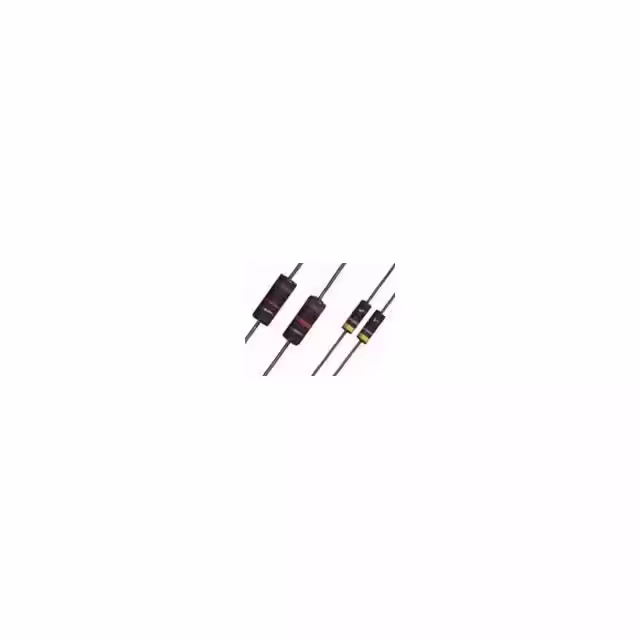

OF43GJERES 4.3 OHM 5% 1/2W AXIAL Ohmite |
500 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 4.3 Ohms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
TUW15J2R0ERES 2 OHM 5% 15W AXIAL Ohmite |
140 |
|
Datasheet |
TUW | Bulk | Active | 2 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.492" x 0.453" Rectangular x 1.929" L (12.50mm x 11.50mm x 49.00mm) | - | 2 | - |
|
55J1R0E5W 1 OHM SILICONE 5% Ohmite |
590 |
|
Datasheet |
50 | Bulk | Active | 1 Ohms | ±5% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
43JR56E3W 0.56 OHM SILICONE 5% Ohmite |
125 |
|
Datasheet |
40 | Bulk | Active | 560 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
WHA51RFETRES 51 OHM 1% 1/2W AXIAL Ohmite |
1,000 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 51 Ohms | ±1% | 0.5W, 1/2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WLAR015FETRES 0.015 OHM 1% 1/2W AXIAL Ohmite |
978 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 15 mOhms | ±1% | 0.5W, 1/2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
