Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TUW15J27RERES 27 OHM 5% 15W AXIAL Ohmite |
420 |
|
Datasheet |
TUW | Bulk | Active | 27 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.492" x 0.453" Rectangular x 1.929" L (12.50mm x 11.50mm x 49.00mm) | - | 2 | - |
|

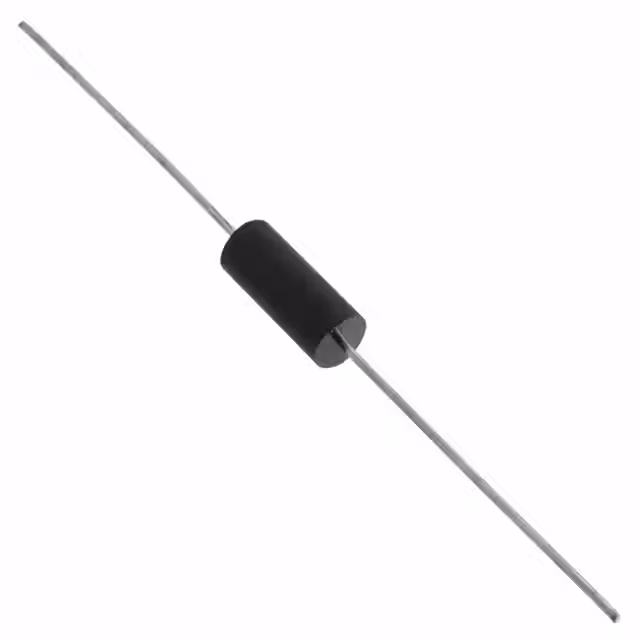

WHD5R0FETRES 5 OHM 1% 3W AXIAL Ohmite |
349 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 5 Ohms | ±1% | 3W | Wirewound | Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.217" Dia x 0.533" L (5.50mm x 13.54mm) | - | 2 | - |
|
TUW10JR75ERES 0.75 OHM 5% 10W AXIAL Ohmite |
1,022 |
|
Datasheet |
TUW | Bulk | Active | 750 mOhms | ±5% | 10W | Wirewound | Flame Proof, Safety | ±400ppm/°C | 275°C | Axial | 1.929" L x 0.394" W (49.00mm x 10.00mm) | 0.394" (10.00mm) | 2 | - |
|
WLBR010FETRES 0.01 OHM 1% 1W AXIAL Ohmite |
985 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 1W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - | 2 | - |
|
WHD10RFETRES 10 OHM 1% 3W AXIAL Ohmite |
370 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 10 Ohms | ±1% | 3W | Wirewound | Non-Inductive | ±50ppm/°C | -55°C ~ 150°C | Axial | 0.217" Dia x 0.533" L (5.50mm x 13.54mm) | - | 2 | - |
|
43J560E3W 560 OHMS SILICONE 5% Ohmite |
225 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 560 Ohms | ±5% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
WLAR025FETRES 0.025 OHM 1% 1/2W AXIAL Ohmite |
992 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 25 mOhms | ±1% | 0.5W, 1/2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
WHA1K0FETRES 1K OHM 1% 1/2W AXIAL Ohmite |
988 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 1 kOhms | ±1% | 0.5W, 1/2W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.100" Dia x 0.200" L (2.54mm x 5.08mm) | - | 2 | - |
|
|
TUW15J8R2ERES 8.2 OHM 5% 15W AXIAL Ohmite |
420 |
|
Datasheet |
TUW | Bulk | Active | 8.2 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | - | Axial | 0.492" x 0.453" Rectangular x 1.929" L (12.50mm x 11.50mm x 49.00mm) | - | 2 | - |
|
TWW3J4R3ERES 4.3 OHM 5% 3W RADIAL Ohmite |
4,820 |
|
Datasheet |
TWW | Bulk | Active | 4.3 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
