Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD122JERES 1.2K OHM 5% 1/4W AXIAL Ohmite |
974 |
|
Datasheet |
Little Demon® OD | Bulk | Active | 1.2 kOhms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
OF752JERES 7.5K OHM 5% 1/2W AXIAL Ohmite |
3,143 |
|
Datasheet |
Little Demon® OF | Bulk | Obsolete | 7.5 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
WHE10KFERES 10K OHM 1% 5W AXIAL Ohmite |
459 |
|
Datasheet |
WH | Bulk | Active | 10 kOhms | ±1% | 5W | Wirewound | Non-Inductive | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.295" Dia x 0.787" L (7.50mm x 20.00mm) | - | 2 | - |
|
TUW15J330ERES 330 OHM 5% 15W AXIAL Ohmite |
140 |
|
Datasheet |
TUW | Bulk | Active | 330 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.492" x 0.453" Rectangular x 1.929" L (12.50mm x 11.50mm x 49.00mm) | - | 2 | - |
|
|
OF752JERES 7.5K OHM 5% 1/2W AXIAL Ohmite |
800 |
|
Datasheet |
Little Demon® OF | Bulk | Active | 7.5 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
TUM5J560ERES 560 OHM 5% 5W AXIAL Ohmite |
793 |
|
Datasheet |
TUM | Bulk | Active | 560 Ohms | ±5% | 5W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | - | Axial | 0.394" x 0.354" Rectangular x 0.866" L (10.00mm x 9.00mm x 22.00mm) | - | 2 | - |
|
OD681JERES 680 OHM 5% 1/4W AXIAL Ohmite |
1,904 |
|
Datasheet |
Little Demon® OD | Bulk | Obsolete | 680 Ohms | ±5% | 0.25W, 1/4W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.098" Dia x 0.276" L (2.50mm x 7.00mm) | - | 2 | - |
|
|
3CJ330RES 330 OHM 5% 10W AXIAL Ohmite |
155 |
|
Datasheet |
Axiohm | Bulk | Active | 330 Ohms | ±5% | 10W | Wirewound | Moisture Resistant | ±30ppm/°C | - | Axial | 0.219" Dia x 0.500" L (5.56mm x 12.70mm) | - | 2 | - |
|

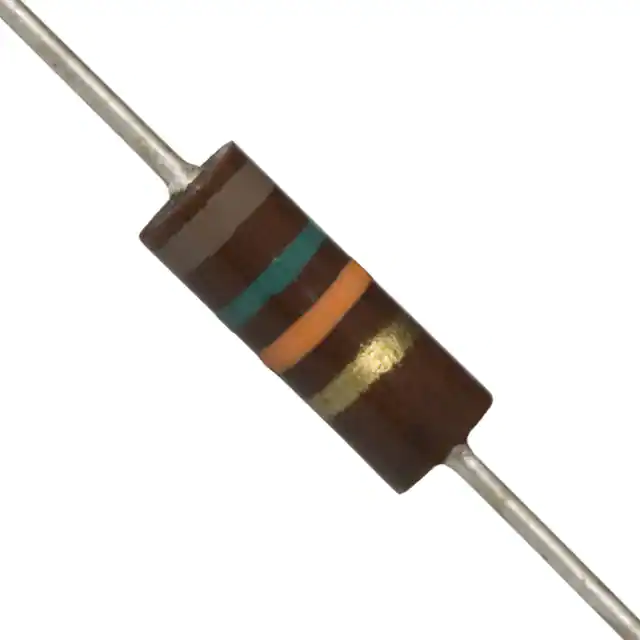

OF153JERES 15K OHM 5% 1/2W AXIAL Ohmite |
800 |
|
Datasheet |
Little Demon® OF | Bulk | Active | 15 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
TUW3J4R3ERES 4.3 OHM 5% 3W AXIAL Ohmite |
610 |
|
Datasheet |
TUW | Bulk | Active | 4.3 Ohms | ±5% | 3W | Wirewound | Flame Proof, Safety | ±400ppm/°C | 275°C | Axial | 0.866" L x 0.315" W (22.00mm x 8.00mm) | 0.354" (9.00mm) | 2 | - |
