Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
45F22RE5W 22 OHMS SILICONE 1% Ohmite |
4,065 |
|
Datasheet |
40 | Bulk | Active | 22 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
20J400E10W 400 OHMS VITREOUS 5% Ohmite |
3,136 |
|
Datasheet |
20 | Bulk | Active | 400 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
25J82R5W 82 OHMS VITREOUS 5% NON ROHS Ohmite |
4,998 |
|
Datasheet |
20 | Bulk | Active | 82 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
SM104035005JERES 50M OHM 10% 1.5W RADIAL Ohmite |
3,576 |
|
Datasheet |
Slim-Mox | Bulk | Active | 50 MOhms | ±10% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.080" L x 0.100" W (27.43mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
41J10R1W 10 OHMS SILICONE 5% NON ROHS Ohmite |
3,146 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 10 Ohms | ±5% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
83F30R13W 30.1 OHMS SILICONE 1% Ohmite |
3,260 |
|
Datasheet |
Acrasil® 80 | Bulk | Active | 30.1 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.217" Dia x 0.594" L (5.50mm x 15.10mm) | - | 2 | - |
|
|
20J3K9E10W 3K9 OHMS VITREOUS 5% Ohmite |
2,251 |
|
Datasheet |
20 | Bulk | Active | 3.9 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|

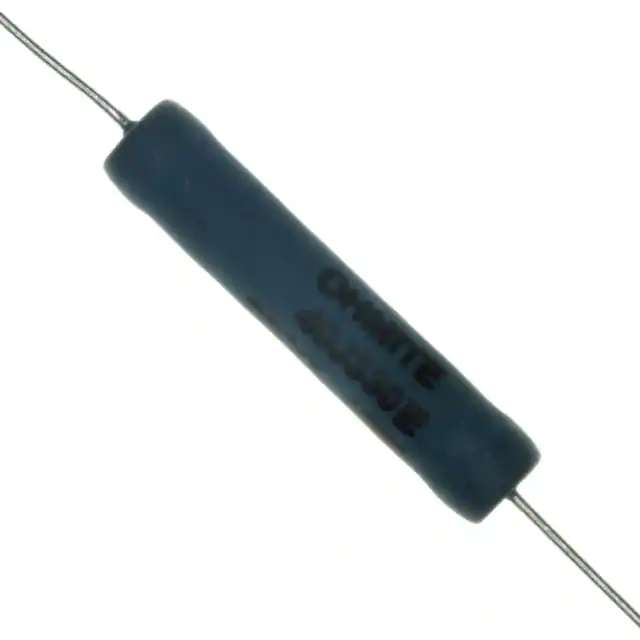

40J330E10W 330 OHMS SILICONE 5% Ohmite |
100 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 330 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
SM102038005FRES 80M OHM 1% 1W RADIAL Ohmite |
4,410 |
|
Datasheet |
Slim-Mox | Bulk | Active | 80 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM103031505GRES 15M OHM 2% 1.25W RADIAL Ohmite |
2,725 |
|
Datasheet |
Slim-Mox | Bulk | Active | 15 MOhms | ±2% | 1.25W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.830" L x 0.100" W (21.08mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
