Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
42J22RE2W 22 OHMS SILICONE 5% Ohmite |
1,795 |
|
Datasheet |
40 | Bulk | Active | 22 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
12FR050E2W 10 SERIES .05 OHM 1% Current Ohmite |
1,313 |
|
Datasheet |
10 | Bulk | Active | 50 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
|
45J3K3E5W 3K3 OHMS SILICONE 5% Ohmite |
1,297 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 3.3 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
SM202032004FERES 2M OHM 1% 1.5W RADIAL Ohmite |
100 |
|
Datasheet |
Slim-Mox | Bulk | Active | 2 MOhms | ±1% | 1.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.590" (14.99mm) | 2 | - |
|
|
40F56RE10W 56 OHMS SILICONE 1% Ohmite |
4,889 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|

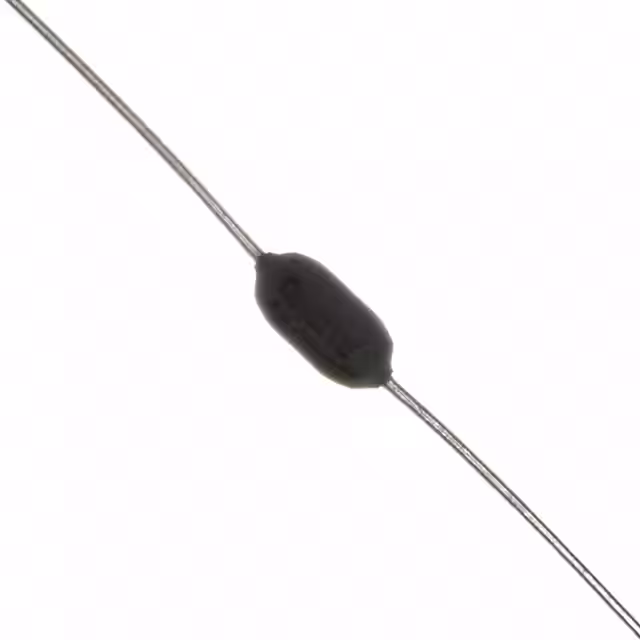

42J56RE2W 56 OHMS SILICONE 5% Ohmite |
3,689 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±5% | 2W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.406" L (5.60mm x 10.30mm) | - | 2 | - |
|
ACS5S100RJ-TRES 100 OHM 5% 5W AXIAL Ohmite |
1,046 |
|
Datasheet |
ACS5S ACS10S | Tape & Reel (TR) | Discontinued at Digi-Key | 100 Ohms | ±5% | 5W | - | - | ±20ppm/°C | -55°C ~ 275°C | Axial | 0.188" Dia x 0.500" L (4.78mm x 12.70mm) | - | 2 | - |
|

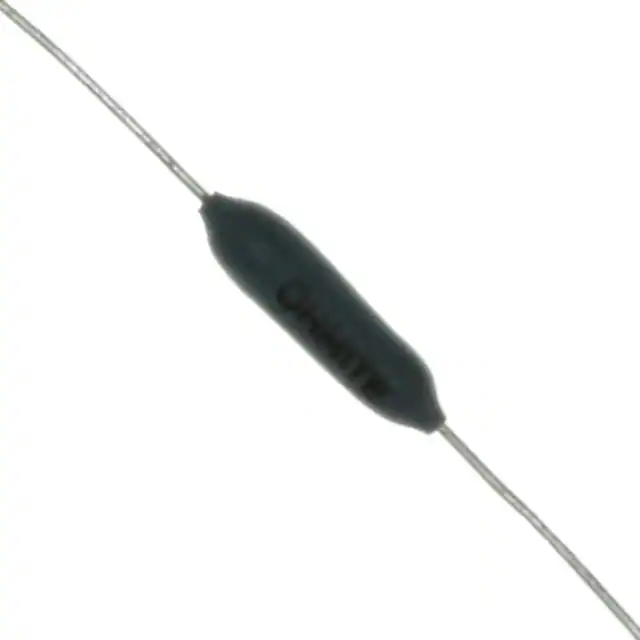

41J100E1W 100 OHMS SILICONE 5% Ohmite |
100 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 Ohms | ±5% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
TA205PA4R70JRES 4.7 OHM 5% 5W POWERCHIP Ohmite |
4,661 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 4.7 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
|
TA205PA18R0JRES 18 OHM 5% 5W POWERCHIP Ohmite |
1,812 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 18 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
