Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM106031006KERES 100M OHM 10% 2W RADIAL Ohmite |
1,734 |
|
Datasheet |
Slim-Mox | Bulk | Active | 100 MOhms | ±10% | 2W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 1.580" L x 0.100" W (40.13mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|

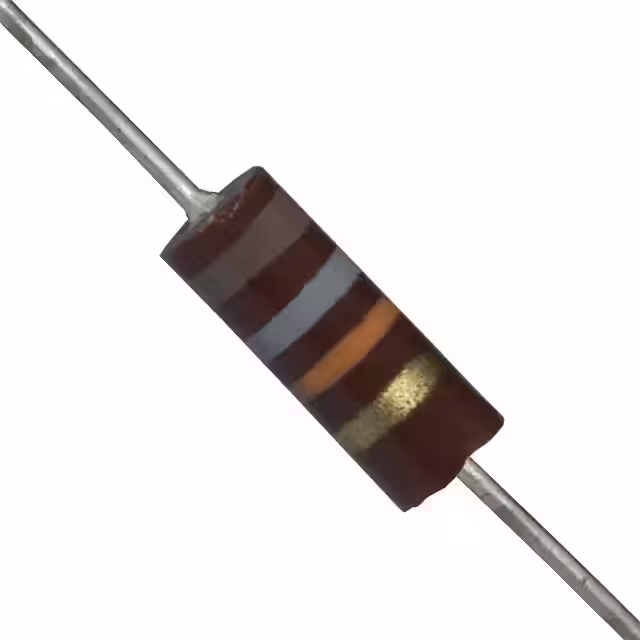

OF183JERES 18K OHM 5% 1/2W AXIAL Ohmite |
2,179 |
|
Datasheet |
Little Demon® OF | Strip | Obsolete | 18 kOhms | ±5% | 0.5W, 1/2W | Carbon Composition | Pulse Withstanding | - | - | Axial | 0.150" Dia x 0.406" L (3.80mm x 10.30mm) | - | 2 | - |
|
|
SM104024004FERES 4M OHM 1% 2.5W RADIAL Ohmite |
3,621 |
|
Datasheet |
Slim-Mox | Bulk | Active | 4 MOhms | ±1% | 2.5W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 180°C | Radial | 1.000" L x 0.070" W (25.40mm x 1.78mm) | 0.250" (6.35mm) | 2 | - |
|
SM102035005FRES 50M OHM 1W 1% RADIAL Ohmite |
4,179 |
|
Datasheet |
Slim-Mox | Bulk | Active | 50 MOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 50ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
40F1K0E10W 1K0 OHMS SILICONE 1% Ohmite |
3,030 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 kOhms | ±1% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
40J120E10W 120 OHMS SILICONE 5% Ohmite |
3,242 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 120 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
SM102031007FTEWRES 1G OHM 1% 1W RADIAL Ohmite |
4,483 |
|
Datasheet |
Slim-Mox | Bulk | Active | 1 GOhms | ±1% | 1W | Thick Film | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 110°C | Radial | 0.580" L x 0.100" W (14.73mm x 2.54mm) | 0.340" (8.64mm) | 2 | - |
|
|
SM204016006FERES 600M OHM 1% RADIAL Ohmite |
4,963 |
|
Datasheet |
Slim-Mox | Bulk | Active | 600 MOhms | ±1% | - | Metal Foil | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 180°C | Radial | - | - | 2 | - |
|
41F470E1W 470 OHMS SILICONE 1% Ohmite |
1,939 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 470 Ohms | ±1% | 1W | Wirewound | - | ±20ppm/°C | - | Axial | 0.126" Dia x 0.437" L (3.20mm x 11.10mm) | - | 2 | - |
|
|
SM204013606FEVERSION WITH A GLASS COATING Ohmite |
2,065 |
|
- |
Slim-Mox | Bulk | Active | 360 MOhms | ±1% | - | Metal Foil | High Voltage, Non-Inductive | 100ppm/°C | -55°C ~ 180°C | Radial | - | - | 2 | - |
