Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MOX-400231008FERES 10G OHM 3/4W 1% AXIAL Ohmite |
4,271 |
|
Datasheet |
Mini-Mox | Bulk | Active | 10 GOhms | ±1% | 0.75W, 3/4W | Thick Film | High Voltage | 100ppm/°C | -55°C ~ 110°C | Axial | 0.165" Dia x 0.581" L (4.19mm x 14.78mm) | - | 2 | - |
|
WHC200FETRES 200 OHM 1% 2W AXIAL Ohmite |
3,202 |
|
Datasheet |
WH | Tape & Reel (TR) | Active | 200 Ohms | ±1% | 2W | Wirewound | - | ±20ppm/°C | -55°C ~ 150°C | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|
43F1R0ERES 1 OHM 1% 3W AXIAL Ohmite |
1,104 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±1% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
43JR50ERES 0.5 OHM 5% 3W AXIAL Ohmite |
3,757 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 500 mOhms | ±5% | 3W | Wirewound | - | ±90ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
OX153KERES 15K OHM 10% 1W AXIAL Ohmite |
3,420 |
|
Datasheet |
OX | Bulk | Active | 15 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|

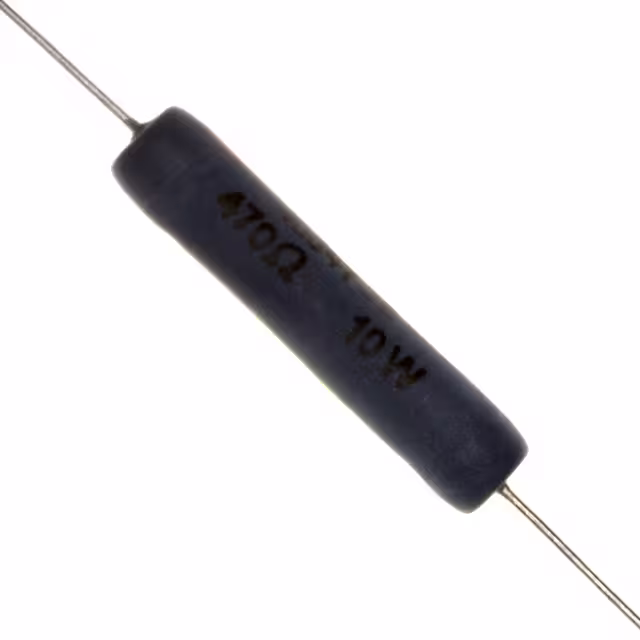

40J470ERES 470 OHM 5% 10W AXIAL Ohmite |
1,550 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 470 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
20J30RERES 30 OHM 5% 10W AXIAL Ohmite |
1,115 |
|
Datasheet |
20 | Bulk | Active | 30 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
OY103KERES 10K OHM 10% 2W AXIAL Ohmite |
3,717 |
|
Datasheet |
OY | Bulk | Active | 10 kOhms | ±10% | 2W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.276" Dia x 0.748" L (7.00mm x 19.00mm) | - | 2 | - |
|
40J5K0ERES 5K OHM 5% 10W AXIAL Ohmite |
2,238 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 5 kOhms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
15FR010E-TRES 0.01 OHM 1% 5W AXIAL Ohmite |
1,189 |
|
Datasheet |
10 | Tape & Reel (TR) | Active | 10 mOhms | ±1% | 5W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 275°C | Axial | 0.331" Dia x 0.937" L (8.40mm x 23.80mm) | - | 2 | - |
