Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP101 12R FRES 12 OHM 1% 100W TO247 Ohmite |
3,890 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 12 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
|
AP101 20R FRES 20 OHM 1% 100W TO247 Ohmite |
2,389 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 20 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
B20J40RERES 40 OHM 5% 20W AXIAL Ohmite |
2,844 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 40 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
MOX-750231006JERES 100M OHM 5% 1W AXIAL Ohmite |
3,750 |
|
Datasheet |
Mini-Mox | Bulk | Active | 100 MOhms | ±5% | 1W | Thick Film | High Voltage | 25ppm/°C | -55°C ~ 220°C | Axial | 0.165" Dia x 0.880" L (4.19mm x 22.35mm) | - | 2 | - |
|
TWW5J8R2ERES 8.2 OHM 5% 5W RADIAL Ohmite |
1,094 |
|
Datasheet |
TWW | Bulk | Active | 8.2 Ohms | ±5% | 5W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.492" L x 0.354" W (12.50mm x 9.00mm) | 1.024" (26.00mm) | 2 | - |
|
43F100ERES 100 OHM 1% 3W AXIAL Ohmite |
1,310 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|

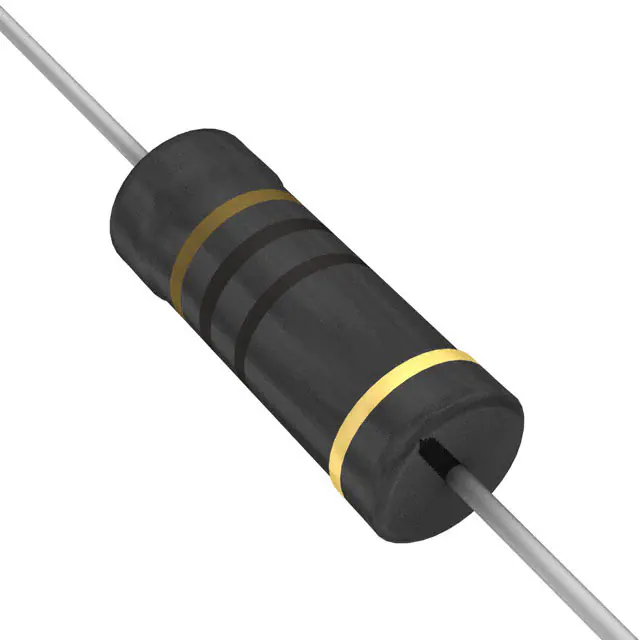

55J10RERES 10 OHM 5% 5W AXIAL Ohmite |
3,771 |
|
Datasheet |
50 | Bulk | Active | 10 Ohms | ±5% | 5W | Wirewound | - | ±50ppm/°C | - | Axial | 0.315" Dia x 0.827" L (8.00mm x 21.00mm) | - | 2 | - |
|
WLCR005FETRES 0.005 OHM 1% 2W AXIAL Ohmite |
3,049 |
|
Datasheet |
WL | Tape & Reel (TR) | Active | 5 mOhms | ±1% | 2W | Wirewound | Current Sense, Moisture Resistant | ±300ppm/°C | - | Axial | 0.180" Dia x 0.449" L (4.57mm x 11.40mm) | - | 2 | - |
|

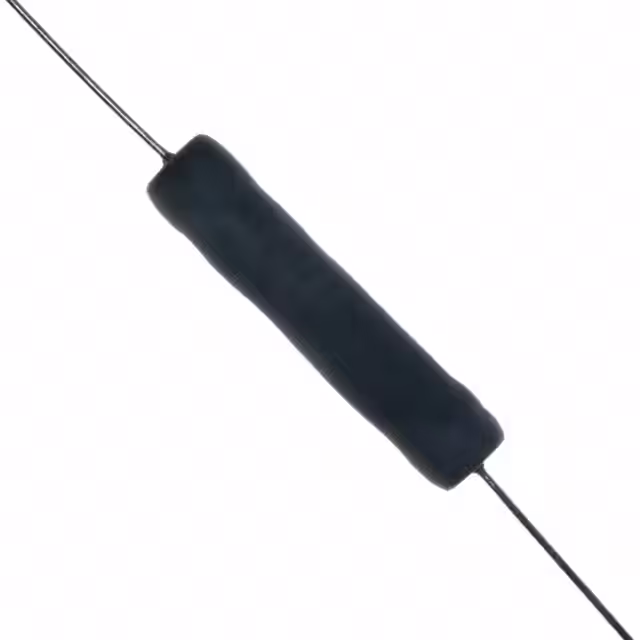

40J56RERES 56 OHM 5% 10W AXIAL Ohmite |
2,521 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 56 Ohms | ±5% | 10W | Wirewound | - | ±20ppm/°C | - | Axial | 0.406" Dia x 1.902" L (10.30mm x 48.30mm) | - | 2 | - |
|
|
43F560ERES 560 OHM 1% 3W AXIAL Ohmite |
2,494 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 560 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
