Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

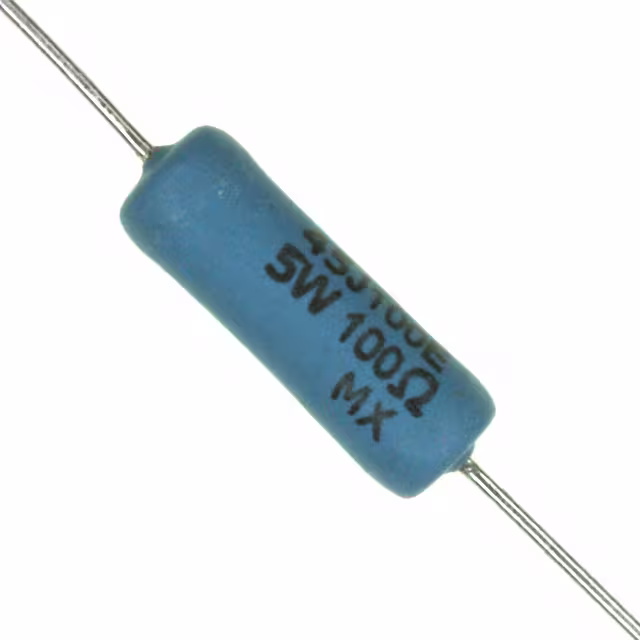

45J100ERES 100 OHM 5% 5W AXIAL Ohmite |
1,557 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 100 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
43F75RERES 75 OHM 1% 3W AXIAL Ohmite |
3,748 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 75 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
|
43F10RERES 10 OHM 1% 3W AXIAL Ohmite |
3,855 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 10 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
TWW20J2R7ERES 2.7 OHM 5% 20W RADIAL Ohmite |
1,872 |
|
Datasheet |
TWW | Box | Active | 2.7 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
MOX5002702GSERES 27K OHM 2% 2W AXIAL Ohmite |
4,572 |
|
Datasheet |
MOX500 | Bulk | Active | 27 kOhms | ±2% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
MOX5002002GSERES 20K OHM 2% 2W AXIAL Ohmite |
2,930 |
|
Datasheet |
MOX500 | Bulk | Active | 20 kOhms | ±2% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
MOX70031001BYERES 1K OHM 0.1% 1/4W AXIAL Ohmite |
3,016 |
|
Datasheet |
MOX700 | Tray | Active | 1 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
|
25J270ERES 270 OHM 5% 5W AXIAL Ohmite |
2,151 |
|
Datasheet |
20 | Bulk | Active | 270 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.276" Dia x 1.016" L (7.00mm x 25.80mm) | - | 2 | - |
|
23J330ERES 330 OHM 5% 3W AXIAL Ohmite |
4,638 |
|
Datasheet |
20 | Bulk | Active | 330 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
MOX70034001BYERES 4K OHM 0.1% 1/4W AXIAL Ohmite |
4,524 |
|
Datasheet |
MOX700 | Bulk | Active | 4 kOhms | ±0.1% | 0.25W, 1/4W | Metal Film | - | 10ppm/°C | -55°C ~ 125°C | Axial | 0.106" Dia x 0.276" L (2.70mm x 7.00mm) | - | 2 | - |
