Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AP101 3R FRES 3 OHM 1% 100W TO247 Ohmite |
3,506 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 3 Ohms | ±1% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
AP101 1R JRES 1 OHM 5% 100W TO247 Ohmite |
1,600 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 1 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±300ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
|
13FPR050ERES 0.05 OHM 1% 3W AXIAL Ohmite |
4,482 |
|
Datasheet |
10 | Bulk | Active | 50 mOhms | ±1% | 3W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.200" Dia x 0.626" L (5.08mm x 15.90mm) | - | 4 | - |
|
B12J10KERES 10K OHM 5% 12W AXIAL Ohmite |
2,429 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 10 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|

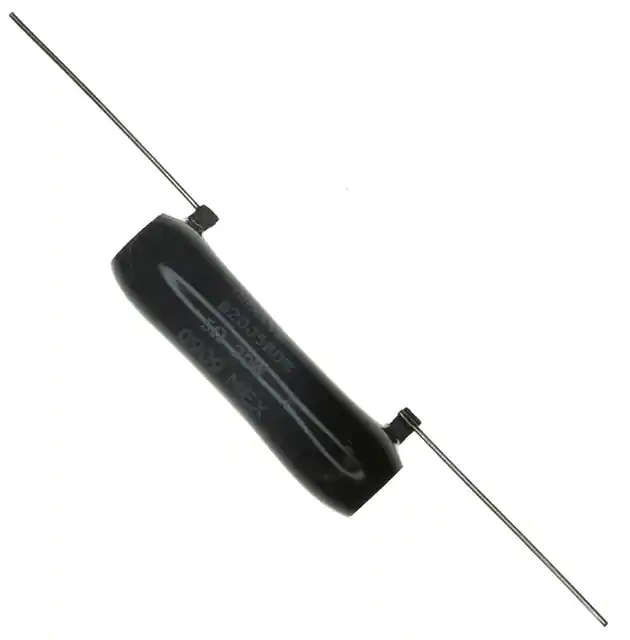

B20J5R0ERES 5 OHM 5% 20W AXIAL Ohmite |
3,590 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 5 Ohms | ±5% | 20W | Wirewound | Flame Retardant Coating, Safety | ±400ppm/°C | - | - | 0.437" Dia x 2.000" L (11.11mm x 50.80mm) | - | 2 | - |
|
17FPR025ERES 0.025 OHM 1% 7W AXIAL Ohmite |
3,331 |
|
Datasheet |
10 | Bulk | Active | 25 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
|
17FPR005ERES 0.005 OHM 1% 7W AXIAL Ohmite |
1,825 |
|
Datasheet |
10 | Bulk | Active | 5 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±100ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
|
17FPR100ERES 0.1 OHM 1% 7W AXIAL Ohmite |
1,354 |
|
Datasheet |
10 | Bulk | Active | 100 mOhms | ±1% | 7W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 200°C | Axial | 0.375" Dia x 1.500" L (9.53mm x 38.10mm) | - | 4 | - |
|
TAH20PR510JERES 0.51 OHM 5% 20W TO220 Ohmite |
4,298 |
|
Datasheet |
TAH | Tube | Active | 510 mOhms | ±5% | 20W | Thick Film | Moisture Resistant, Pulse Withstanding | - | - | TO-220 | 0.410" L x 0.125" W (10.41mm x 3.18mm) | 0.650" (16.52mm) | 2 | - |
|

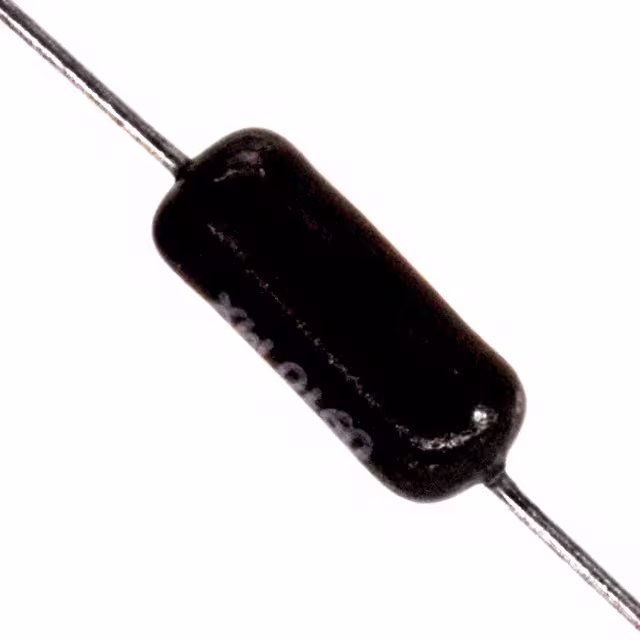

93J10KRES 10K OHM 5% 3.25W AXIAL Ohmite |
4,238 |
|
Datasheet |
90 | Bulk | Active | 10 kOhms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
