Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TWM15J47KERES 47K OHM 5% 15W RADIAL Ohmite |
1,870 |
|
Datasheet |
TWM | Box | Active | 47 kOhms | ±5% | 15W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
|
TWM20J75KERES 75K OHM 5% 20W RADIAL Ohmite |
3,870 |
|
Datasheet |
TWM | Box | Active | 75 kOhms | ±5% | 20W | Metal Oxide Film | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
TWW20J75RERES 75 OHM 5% 20W RADIAL Ohmite |
1,806 |
|
Datasheet |
TWW | Box | Active | 75 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
|
TWW20JR56ERES 0.56 OHM 5% 20W RADIAL Ohmite |
3,184 |
|
Datasheet |
TWW | Box | Active | 560 mOhms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
|
TWW20J1R0ERES 1 OHM 5% 20W RADIAL Ohmite |
1,503 |
|
Datasheet |
TWW | Box | Active | 1 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
|
TWW20J7R5ERES 7.5 OHM 5% 20W RADIAL Ohmite |
4,966 |
|
Datasheet |
TWW | Box | Active | 7.5 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
MOX5001501JSERES 1.5K OHM 5% 2W AXIAL Ohmite |
3,212 |
|
Datasheet |
MOX500 | Bulk | Active | 1.5 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
23JR30ERES 300M OHM 5% 3W AXIAL Ohmite |
1,538 |
|
Datasheet |
20 | Bulk | Active | 300 mOhms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | - | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
45F1K5ERES 1.5K OHM 1% 5W AXIAL Ohmite |
2,474 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1.5 kOhms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|

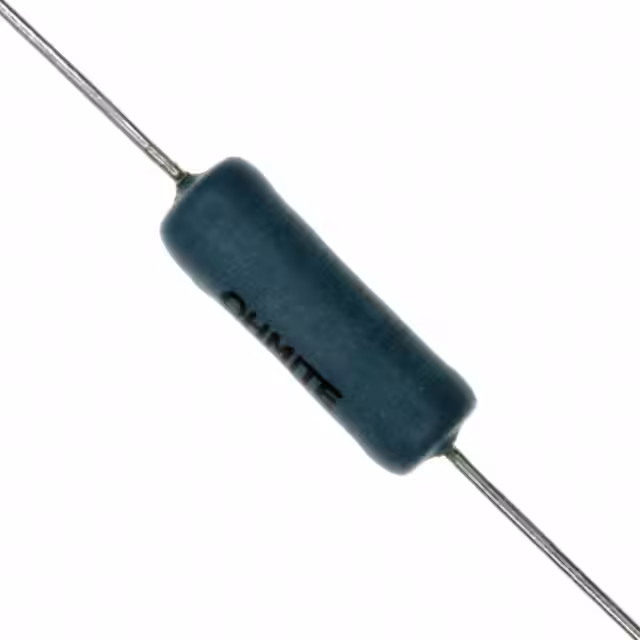

45J27RERES 27 OHM 5% 5W AXIAL Ohmite |
3,764 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 27 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
