Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23J200ERES 200 OHM 5% 3W AXIAL Ohmite |
496 |
|
Datasheet |
20 | Bulk | Active | 200 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
43J1R0ERES 1 OHM 5% 3W AXIAL Ohmite |
245 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 Ohms | ±5% | 3W | Wirewound | - | ±50ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
WNDR50FETRES 0.5 OHM 1% 3W AXIAL Ohmite |
4,306 |
|
Datasheet |
WN | Tape & Reel (TR) | Active | 500 mOhms | ±1% | 3W | Wirewound | Non-Inductive | ±90ppm/°C | -55°C ~ 150°C | Axial | 0.217" Dia x 0.533" L (5.50mm x 13.54mm) | - | 2 | - |
|
MOX5001001JSERES 1K OHM 5% 2W AXIAL Ohmite |
138 |
|
Datasheet |
MOX500 | Bulk | Active | 1 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
43F30RERES 30 OHM 1% 3W AXIAL Ohmite |
250 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 30 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
45F680ERES 680 OHM 1% 5W AXIAL Ohmite |
163 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 680 Ohms | ±1% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
43F33RERES 33 OHM 1% 3W AXIAL Ohmite |
242 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 33 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|

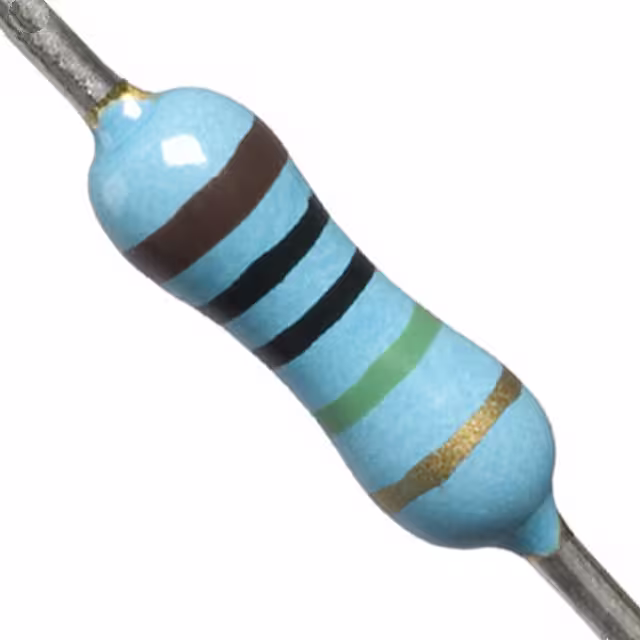

MOX200001005JERES 10M OHM 5% 1/4W AXIAL Ohmite |
224 |
|
Datasheet |
Mini-Mox | Bulk | Active | 10 MOhms | ±5% | 0.25W, 1/4W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.087" Dia x 0.256" L (2.20mm x 6.50mm) | - | 2 | - |
|
|
43F50RERES 50 OHM 1% 3W AXIAL Ohmite |
172 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 50 Ohms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|
12FR015ERES 0.015 OHM 1% 2W AXIAL Ohmite |
3,427 |
|
Datasheet |
10 | Bulk | Active | 15 mOhms | ±1% | 2W | Metal Element | Current Sense, Non-Inductive | ±50ppm/°C | -55°C ~ 275°C | Axial | 0.094" Dia x 0.417" L (2.40mm x 10.60mm) | - | 2 | - |
