Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
43F1K0ERES 1K OHM 1% 3W AXIAL Ohmite |
300 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 1 kOhms | ±1% | 3W | Wirewound | - | ±20ppm/°C | - | Axial | 0.220" Dia x 0.594" L (5.60mm x 15.10mm) | - | 2 | - |
|

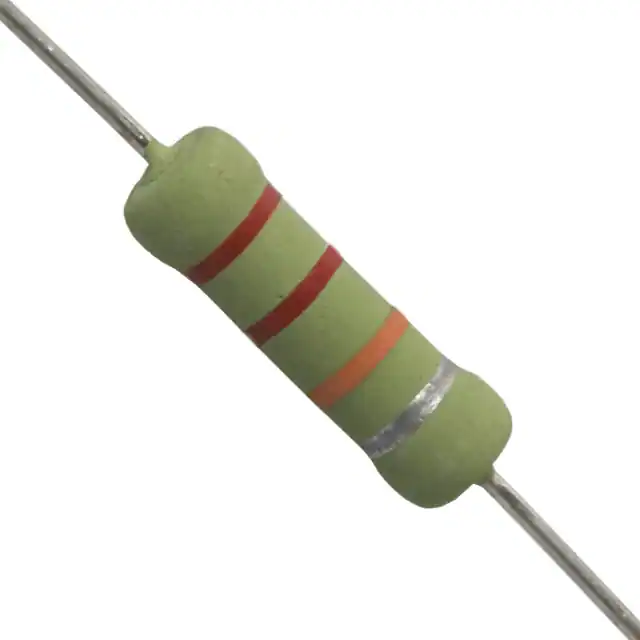

OX223KERES 22K OHM 10% 1W AXIAL Ohmite |
1,018 |
|
Datasheet |
OX | Bulk | Active | 22 kOhms | ±10% | 1W | Ceramic | Moisture Resistant, Pulse Withstanding | -1000/ -1600ppm/°C | -40°C ~ 220°C | Axial | 0.217" Dia x 0.650" L (5.50mm x 16.50mm) | - | 2 | - |
|
20J390ERES 390 OHM 5% 10W AXIAL Ohmite |
1,785 |
|
Datasheet |
20 | Bulk | Active | 390 Ohms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
23J50RERES 50 OHM 5% 3W AXIAL Ohmite |
292 |
|
Datasheet |
20 | Bulk | Active | 50 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
23J22RERES 22 OHM 5% 3W AXIAL Ohmite |
229 |
|
Datasheet |
20 | Bulk | Active | 22 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
23J180ERES 180 OHM 5% 3W AXIAL Ohmite |
316 |
|
Datasheet |
20 | Bulk | Active | 180 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
|
23J560ERES 560 OHM 5% 3W AXIAL Ohmite |
320 |
|
Datasheet |
20 | Bulk | Active | 560 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|

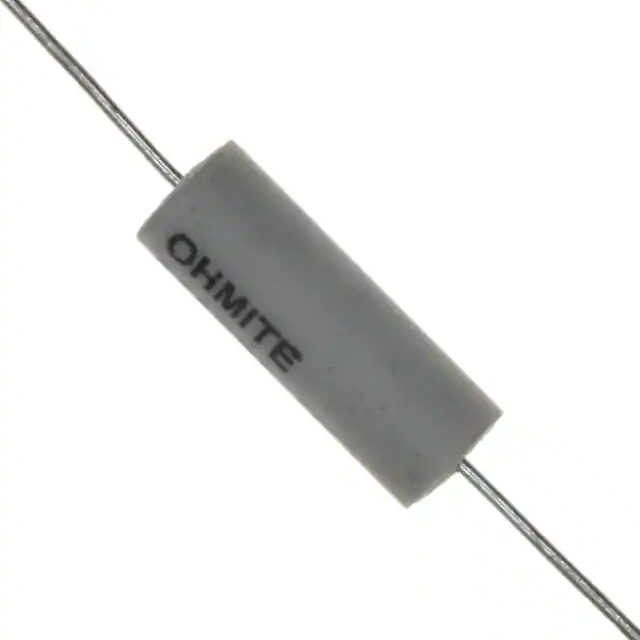

14AFR015ERES 0.015 OHM 1% 4W AXIAL Ohmite |
8,477 |
|
Datasheet |
14A | Bulk | Active | 15 mOhms | ±1% | 4W | Metal Element | Current Sense | - | -55°C ~ 275°C | Axial | 0.252" Dia x 0.709" L (6.40mm x 18.00mm) | - | 2 | - |
|
MOX5003302JSERES 33K OHM 5% 2W AXIAL Ohmite |
253 |
|
Datasheet |
MOX500 | Bulk | Active | 33 kOhms | ±5% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
23J300ERES 300 OHM 5% 3W AXIAL Ohmite |
210 |
|
Datasheet |
20 | Bulk | Active | 300 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
