Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
23J39RERES 39 OHM 5% 3W AXIAL Ohmite |
299 |
|
Datasheet |
20 | Bulk | Active | 39 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TWW20J27RERES 27 OHM 5% 20W RADIAL Ohmite |
4,670 |
|
Datasheet |
TWW | Box | Active | 27 Ohms | ±5% | 20W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.811" (46.00mm) | 2 | - |
|
|
23J250ERES 250 OHM 5% 3W AXIAL Ohmite |
257 |
|
Datasheet |
20 | Bulk | Active | 250 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
MOX5003303GSERES 330K OHM 2% 2W AXIAL Ohmite |
301 |
|
Datasheet |
MOX500 | Bulk | Active | 330 kOhms | ±2% | 2W | Thick Film | Moisture Resistant | ±100ppm/°C | -55°C ~ 155°C | Axial | 0.205" Dia x 0.571" L (5.20mm x 14.50mm) | - | 2 | - |
|
|
23J500ERES 500 OHM 5% 3W AXIAL Ohmite |
165 |
|
Datasheet |
20 | Bulk | Active | 500 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|

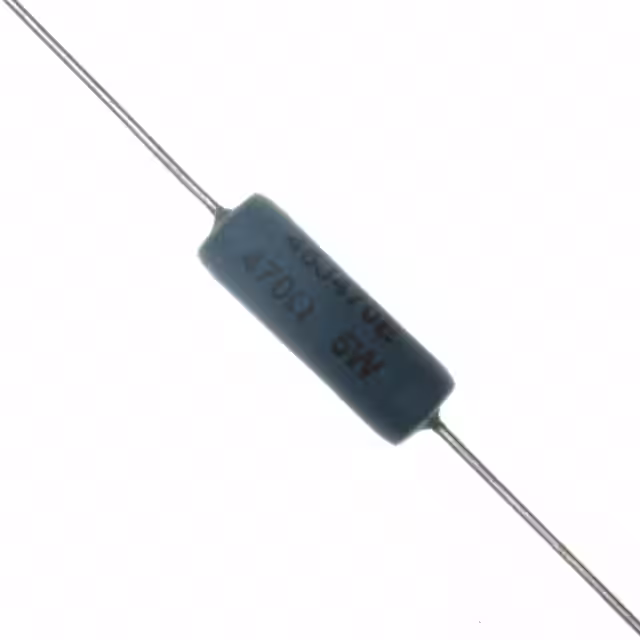

45J470ERES 470 OHM 5% 5W AXIAL Ohmite |
225 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 470 Ohms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|

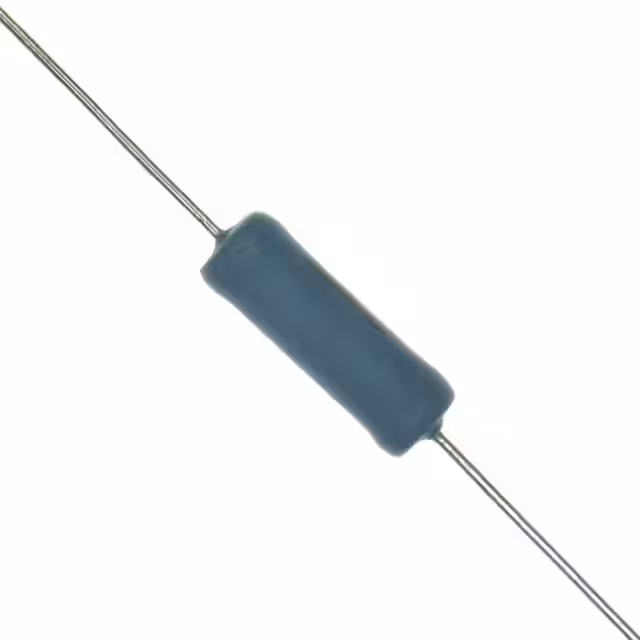

45J6K8ERES 6.8K OHM 5% 5W AXIAL Ohmite |
2,009 |
|
Datasheet |
Ohmicone® 40 | Bulk | Active | 6.8 kOhms | ±5% | 5W | Wirewound | - | ±20ppm/°C | - | Axial | 0.343" Dia x 0.937" L (8.70mm x 23.80mm) | - | 2 | - |
|
|
23J30RERES 30 OHM 5% 3W AXIAL Ohmite |
594 |
|
Datasheet |
20 | Bulk | Active | 30 Ohms | ±5% | 3W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.220" Dia x 0.516" L (5.60mm x 13.10mm) | - | 2 | - |
|
TWW15J1R0ERES 1 OHM 5% 15W RADIAL Ohmite |
3,213 |
|
Datasheet |
TWW | Box | Active | 1 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±400ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
|
|
TWW15J47RERES 47 OHM 5% 15W RADIAL Ohmite |
2,855 |
|
Datasheet |
TWW | Box | Active | 47 Ohms | ±5% | 15W | Wirewound | Flame Proof, Safety | ±350ppm/°C | -55°C ~ 275°C | Radial | 0.787" L x 0.512" W (20.00mm x 13.00mm) | 1.535" (39.00mm) | 2 | - |
