Through Hole Resistors
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Tolerance | Power (Watts) | Composition | Features | Temperature Coefficient | Operating Temperature | Supplier Device Package | Size / Dimension | Height - Seated (Max) | Number of Terminations | Failure Rate |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

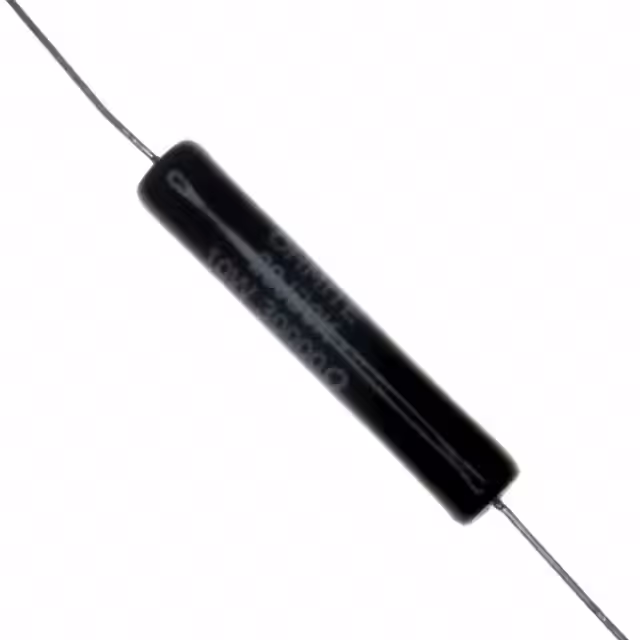

20J30KRES 30K OHM 5% 10W AXIAL Ohmite |
150 |
|
Datasheet |
20 | Bulk | Active | 30 kOhms | ±5% | 10W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.394" Dia x 1.858" L (10.00mm x 47.20mm) | - | 2 | - |
|
TA205PA1R00JERES 1 OHM 5% 5W POWERCHIP Ohmite |
204 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 1 Ohms | ±5% | 5W | Thick Film | - | ±450ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
B12J2K5ERES 2.5K OHM 5% 12W AXIAL Ohmite |
3,434 |
|
Datasheet |
Brown Devil® 200 | Bulk | Active | 2.5 kOhms | ±5% | 12W | Wirewound | Flame Retardant Coating, Safety | ±260ppm/°C | - | - | 0.313" Dia x 1.750" L (7.94mm x 44.45mm) | - | 2 | - |
|
|
TA205PA2R00JERES 2 OHM 5% 5W POWERCHIP Ohmite |
152 |
|
Datasheet |
Power Chip® TA | Bulk | Active | 2 Ohms | ±5% | 5W | Thick Film | - | ±100ppm/°C | -55°C ~ 180°C | Powerchip® | 0.500" L x 0.100" W (12.70mm x 2.54mm) | 1.020" (25.91mm) | 2 | - |
|
OC2K102E-TRRES 1K OHM 10% 1.7W AXIAL Ohmite |
567 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 1 kOhms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
93J1R0RES 1 OHM 5% 3.25W AXIAL Ohmite |
1,028 |
|
Datasheet |
90 | Bulk | Active | 1 Ohms | ±5% | 3.25W | Wirewound | Flame Retardant Coating, Safety | ±100ppm/°C | - | Axial | 0.233" Dia x 0.579" L (5.90mm x 14.70mm) | - | 2 | - |
|
|
OC2K100E-TRRES 10 OHM 10% 1.7W AXIAL Ohmite |
796 |
|
Datasheet |
OC | Tape & Reel (TR) | Active | 10 Ohms | ±10% | 1.7W | Ceramic | High Voltage, Pulse Withstanding | 0/ -800ppm/°C | -55°C ~ 230°C | Axial | 0.311" Dia x 0.752" L (7.90mm x 19.10mm) | - | 2 | - |
|
MOX300001006FERES 100M OHM 1% 1/2W AXIAL Ohmite |
344 |
|
Datasheet |
Mini-Mox | Bulk | Active | 100 MOhms | ±1% | 0.5W, 1/2W | Thick Film | High Voltage, Moisture Resistant | 100ppm/°C | -55°C ~ 155°C | Axial | 0.130" Dia x 0.354" L (3.30mm x 9.00mm) | - | 2 | - |
|

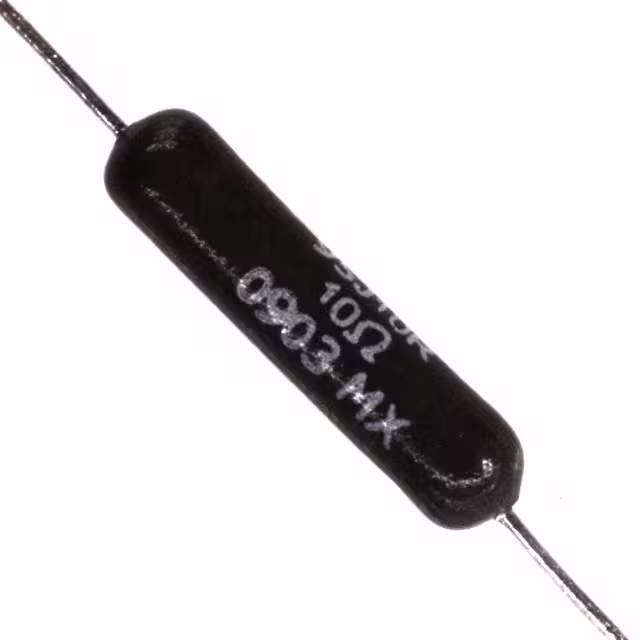

95J10RRES 10 OHM 5% 5W AXIAL Ohmite |
290 |
|
Datasheet |
90 | Bulk | Active | 10 Ohms | ±5% | 5W | Wirewound | Flame Retardant Coating, Safety | ±30ppm/°C | - | Axial | 0.264" Dia x 0.969" L (6.70mm x 24.60mm) | - | 2 | - |
|
AP101 150R JRES 150 OHM 5% 100W TO247 Ohmite |
11,541 |
|
Datasheet |
ARCOL, AP101 | Tube | Active | 150 Ohms | ±5% | 100W | Thick Film | Moisture Resistant, Non-Inductive | ±100ppm/°C | -65°C ~ 175°C | TO-247 | 0.620" L x 0.195" W (15.75mm x 4.95mm) | 0.825" (20.96mm) | 2 | - |
